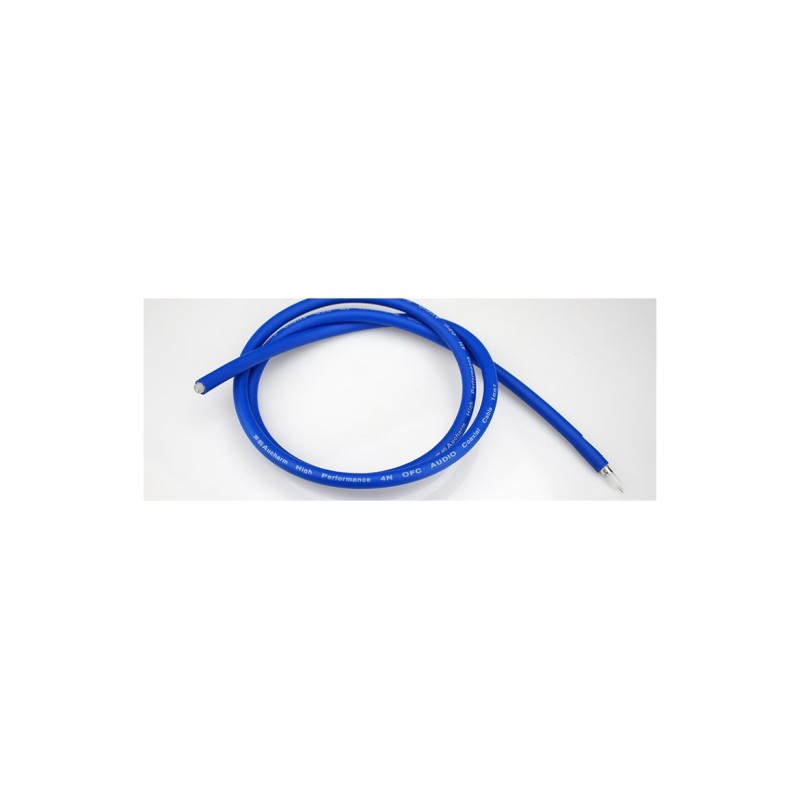

090CU-25 ohm per foot

090CU-25

    Nieuw

    Specifications for 0.09 inch semi-rigid 25ohm cable:
    - Impedance: 25 ohms
    - Diameter: 2.3mm
    - Center conductor diameter: 1.02mm
    - Outer plating: Bare copper, CU

    Bij het kopen van dit product krijgt u in totaal 1 Loyaliteit punt. Uw winkelwagen bevat een totaal aan 1 Loyaliteit punt die omgezet kunnen worden in een waardebon van € 0,20.


    € 20,65

    Korting op je Bestelling Korting op je Bestelling
    Gratis verzenden Gratis verzenden tot 10 KG
    Volume korting Volume korting
    Bonus systeem Bonus systeem
    Veilig betalen Veilig betalen
    Niet goed geld terug Niet goed geld terug
    Trustpilot Trustpilot

    Volumekorting

    Aantal Korting U bespaart
    2 2% Tot € 0,83
    4 4% Tot € 3,30
    6 6% Tot € 7,43
    8 8% Tot € 13,22
    10 10% Tot € 20,65

    Meer informatie 090CU-25 ohm per foot

    Specifications for 0.09 inch semi-rigid 25ohm cable:
    - Impedance: 25 ohms
    - Diameter: 2.3mm
    - Center conductor diameter: 1.02mm
    - Outer plating: Bare copper, CU
    - Dielectric: PTFE
    - Center conductor material: SPC
    - Capacitance: 190pF/m
    - Corona extinction voltage: 750V
    - Max voltage(60Hz rms): 1000V
    - Min inside bend radius: 3.18mm
    - Weight: 24g/meter
    - Cut off frequency: 46GHz
    - Attenuation 0.5GHz: 16.1dB/100 feet
    - Attenuation 1GHz: 23.0dB/100 feet
    - Attenuation 5GHz: 53.8dB/100 feet
    - Attenuation 20GHz: 116.0dB/100 feet
    - Maximum power 0.5GHz: 205.0W
    - Maximum power 1GHz: 143.8W
    - Maximum power 5GHz: 62.1W
    - Maximum power 20GHz: 29.3W
    - Max power handling @100MHZ: ~430W
