Product Discription:

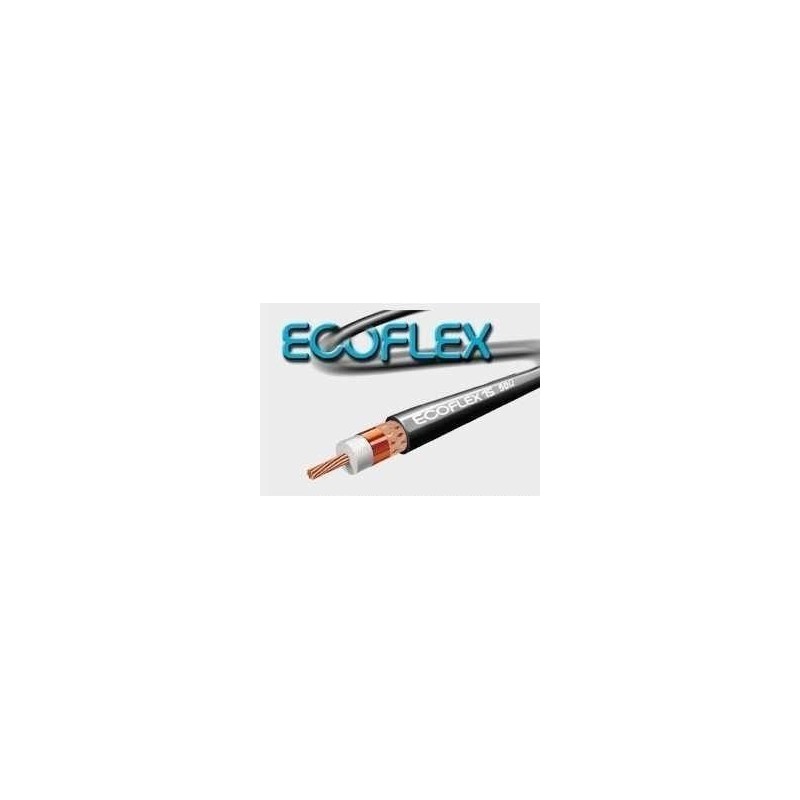

ECOFLEX 15 was designed to meet the demands of the RF and Telecommunications industries for a low loss, highly flexible, affordable coaxial cable. An EMI screening immunity of > 90 dB at 1.0 GHz is achieved through the use of double shielding, which consists of overlapped copper foil and an additional copperbraid. The copperfoil has an applied PE coating which insures that EMI immunity is not compromised by bending or flexing the cable.
ECOFLEX 15 is the right choice when a low loss, highly flexible microwave rated cable is required. It?s economical price makes ECOFLEX 15 the clear leader for today?s demanding applications.
Loss in db per 100 m
Frequency ECOFLEX 15
5 MHz 0.60
10 MHz 0.86
50 MHz 1.96
100 MHz 2.81
144 MHz 3.40
200 MHz 4.05
300 MHz 5.0
400 MHz 5.9
432 MHz 6.1
500 MHz 6.7
1000 MHz 9.8
1296 MHz 11.4
1500 MHz 12.4
2000 MHz 14.7
2320 MHz 16.0
2400 MHz 16.3
3000 MHz 18.7
4000 MHz 22.3
5000 MHz 25.7
6000 MHz 28.8
= amateur radio band
| Technical Data Ecoflex 15 | |
| Impedance | 50 Ωs |
| Centre conductor | stranded copper 7 x 1.55 mm |
| Dielectric | PE-Compound |
| Outer conductor 1 | PE-coated copperfoil, coverage 100% |
| Outer conductor 2 | copper braid, coverage 72% |
| Diameter over sheath | 14.6 mm |
| Capacity per meter | 77 pF |
| Velocity factor | 0.86 |
| Buig cirkel diameter zonder te forceren | 214 mm |
