OMB Professional Broadcast Link ANT TX/RX (175 TO 960 MHz)

    ANT TX-RX

    ANT TX-RX high-quality Yagi-Uda antenna

    Bij het kopen van dit product krijgt u in totaal 17 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 17 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 3,40.


    € 349,99

    Korting op je Bestelling Korting op je Bestelling
    Gratis verzenden Gratis verzenden tot 10 KG
    Volume korting Volume korting
    Bonus systeem Bonus systeem
    Veilig betalen Veilig betalen
    Niet goed geld terug Niet goed geld terug
    Trustpilot Trustpilot

    Volumekorting

    Aantal Korting U bespaart
    2 2% Tot € 14,00
    4 4% Tot € 56,00
    6 6% Tot € 126,00
    8 8% Tot € 223,99
    10 10% Tot € 349,99

    Productinformatie OMB Professional Broadcast Link ANT TX/RX (175 TO 960 MHz)

    Product Discription:

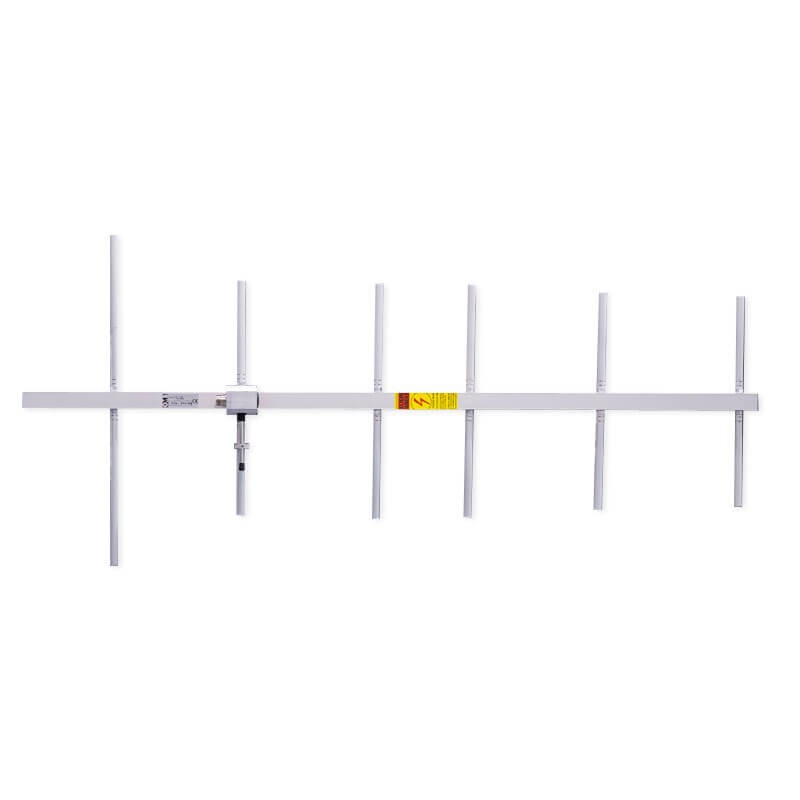

    The ANT TX-RX is a high-quality low-cost Yagi-Uda antenna, designed to be used with vertical or horizontal polarization, and to provide high-directivity. It is made of aluminium with stainless steel clamps, and the output connector is N Female type. Its radioelectric inalterability has been tested. Furthermore, ANT TX-RX provides high gain, is really light and it can work even in really hard environmental conditions. It is manufactured for frequencies between 175 and 960MHz, in 20/30MHz bands. It offers from 10 to 14dB gain depending on the operating frequency.

    Technical Facts:


    • FREQUENCY RANGES 175 ~ 960MHz
    • IMPEDANCE 50Ω
    • MAXIMUM POWER 200W
    • GAIN 10 ~ 14dBd
    • POLARIZATION Vertical / Horizontal
    • INPUT CONNECTOR N Female
    • MAXIMUM WIND SPEED 177Km/h
    • MOUNTING 1 ~ 3'' tubes
    • MATERIAL Anodized aluminium
    • TYPICAL VSWR 1,2 : 1 (<-20dB return loss)
