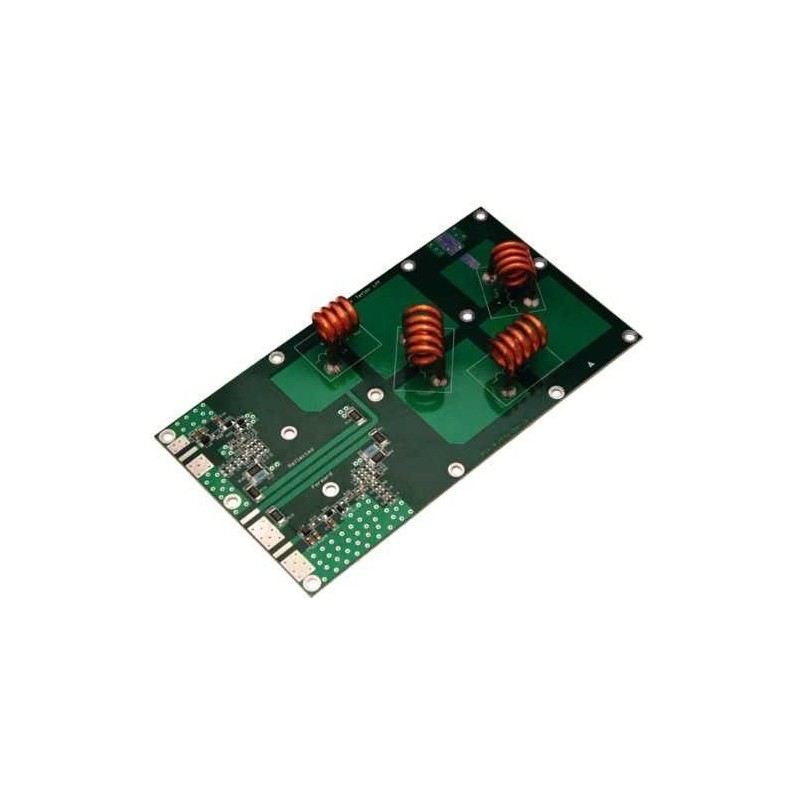

          DR Low pass Filter 1000w met SWR mogelijkheid



          Product Discription:
          This low pass filter directional coupler uses voltage doubler diode detectors to provide a DC voltage at the forward and reflected test ports.

          This coupler is ideally suited for VSWR protection circuits.



          Techincal Facts:
          • I- 86-110MHz 1000 watts maximum.
          • 9th order Chebyshev typology.
          • Ultra low loss Teflon PCB; tightly controlled dielectric constant.
          • large #8 awg inductors.
          • 0.12 dB insertion loss maximum; 0.1dB typical.
          • -28dB return loss; -33dB typical.
          • -47dB rejection at 176MHz. That's the 1st harmonic of 88MHz
          • Directional Coupler Specifications
          • Directivity: 25dB typical
          • Detector output level: 2.5 volts max at 108MHz, 1000W.
          • Detector typology: Voltage doubler schottky detector.
