> >>>DR Low pass Filter 1000w with SWR
DR Low pass Filter 1000w met SWR mogelijkheid View larger

DR Low pass Filter 1000w with SWR

DMR Electronics

1000wlpfswr

New

This low pass filter directional coupler uses voltage doubler diode detectors to provide a DC voltage at the forward and reflected test ports.

More details

✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

Shop Rating


score 5-5 824 ratings

By buying this product you can collect up to 5 loyalty points. Your cart will total 5 loyalty points that can be converted into a voucher of € 1,00.


€ 111,56 tax incl.

Volume discounts

Quantity Price You Save
5 € 100,40 Up to € 55,78
10 € 94,83 Up to € 167,34

More info

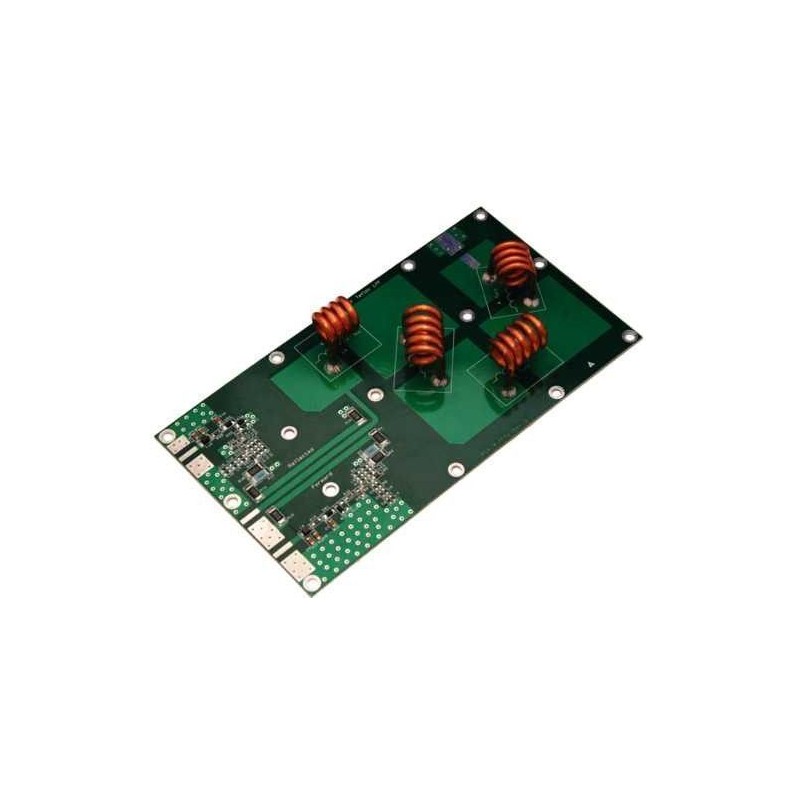

DR Low pass Filter 1000w with SWR



Product Discription:
This low pass filter directional coupler uses voltage doubler diode detectors to provide a DC voltage at the forward and reflected test ports.

This coupler is ideally suited for VSWR protection circuits.


Techincal Facts:
  • I- 86-110MHz 1000 watts maximum.
  • 9th order Chebyshev typology.
  • Ultra low loss Teflon PCB; tightly controlled dielectric constant.
  • large #8 awg inductors.
  • 0.12 dB insertion loss maximum; 0.1dB typical.
  • -28dB return loss; -33dB typical.
  • -47dB rejection at 176MHz. That's the 1st harmonic of 88MHz
  • Directional Coupler Specifications
  • Directivity: 25dB typical
  • Detector output level: 2.5 volts max at 108MHz, 1000W.
  • Detector typology: Voltage doubler schottky detector.
