Productinformatie over TEM Opera Plus 1000 W FM Zender

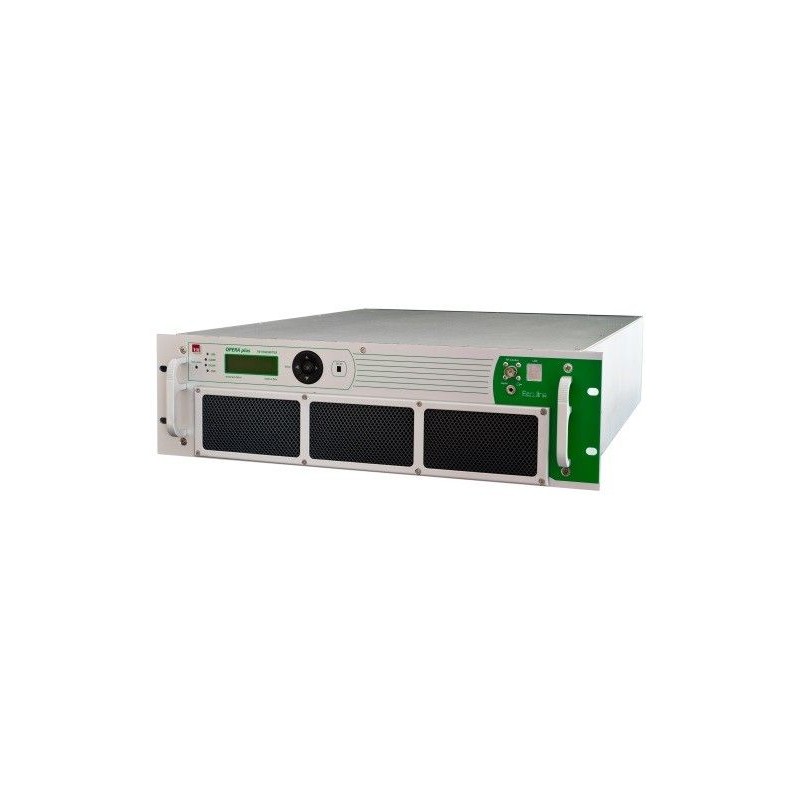

TEM Italy 1000W FM TRANSMITTER (Mono/MPX)

Product Discription:

This 1 kW transmitter operating in the 87,5÷108 MHz band, uses 1x1250W RF module Amplifier:
It means 80% efficiency thanks to 6th generation LD-MOS device.
It means significant energy saving Operating frequency can be set up in a few seconds by the synthesizer. The equipment is fully microprocessor controlled.
These transmitters are ideally suited for unmanned stations, in fact they do not require periodically maintenance and are fully protected.
The installation is very fast and maintenance very easy. It can be equipped with an RDS code built-in

Wideband circuits amplifier with MOSFET technology
Built-in exciter with digital frequency synthesiser and stereo encoder built-in
Automatic fold-back ROS protection
2 levels of temperature protection
1 RF 1250W MOSFET amplifier
LCD display to check all operating parameters
PFC switching power supply for highest reliability and efficiency
Sealed duct cooling air with two blowers
Easy removable double blower
Harmonics filter built-in
Air filter easy removable and washable
RS232 facility to control the transmitter by hiper terminal

Technical Facts:

Operating voltage 230VAC ±10 %
Cooling Forced air with one built-in blowers
Line power <1450VA
Operating temperature range -5° to 45°C
Storage temperature range -40° to 50°C
Output RF connector 7/16
Monitor RF connector BNC
Dimensions 485x132x625 mm
Weight 15 kg

See for more technical information visit product page
