: OMB
: EM100 DIG P
: New

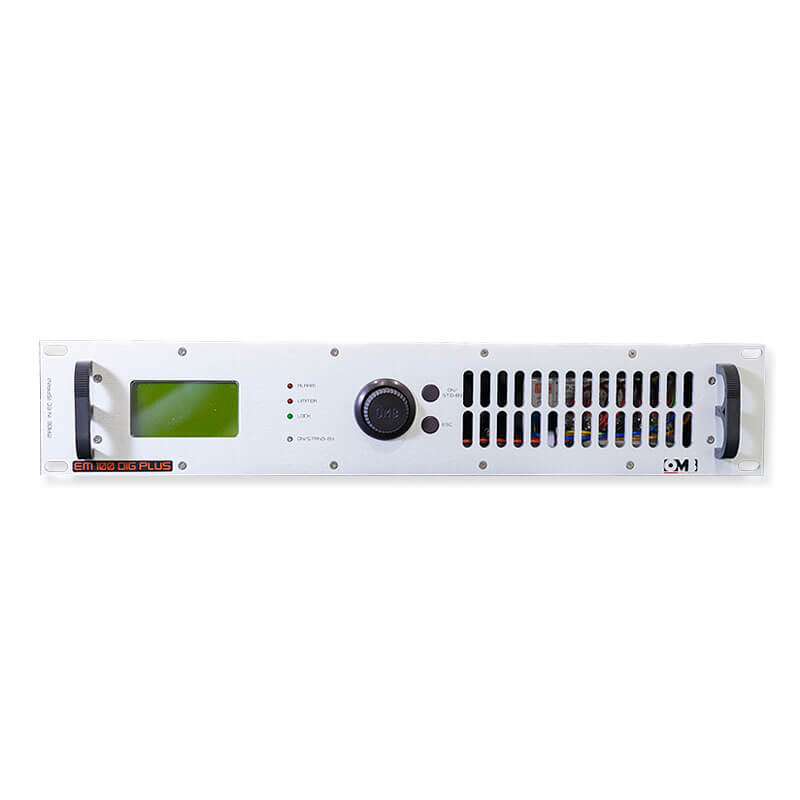

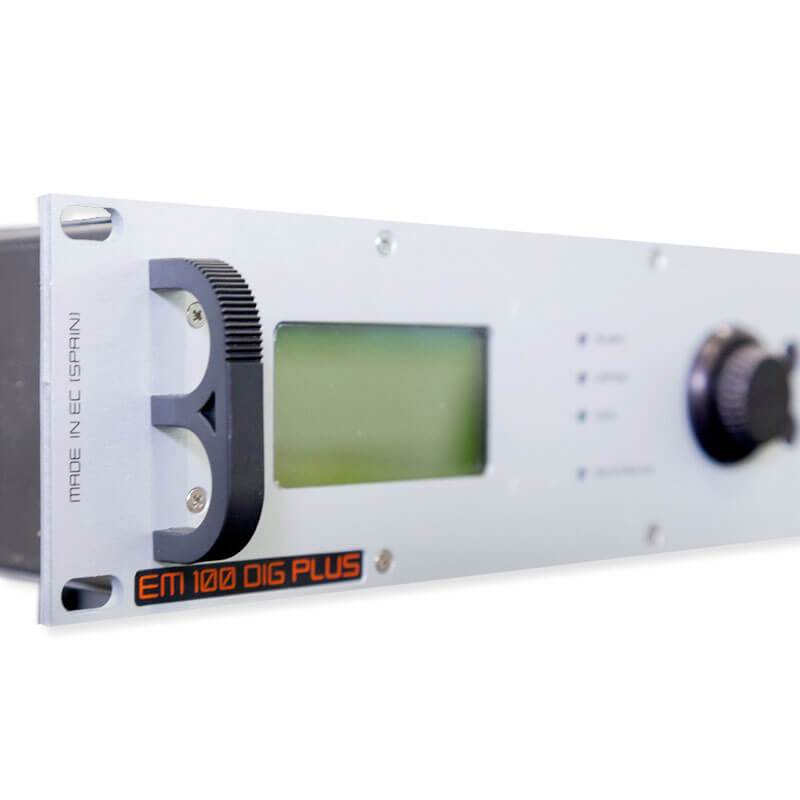

The OMB EM 100 DIG PLUS is a high-efficiency 100W FM transmitter made up with the most modern available technology so as to provide the maximum performance at minimal cost. Flexibility, quality, compactness, and low electrical consumption make it one of the best transmitters on the market today.
The EM 100 DIG PLUS by OMB is the ideal solution for radio stations seeking a reliable 100W FM transmitter with low energy consumption. This transmitter combines superior audio quality with an extremely compact housing and reduced weight. The entirely modular power section ensures high reliability and ease of maintenance, while fully complying with the strictest international technical regulations.

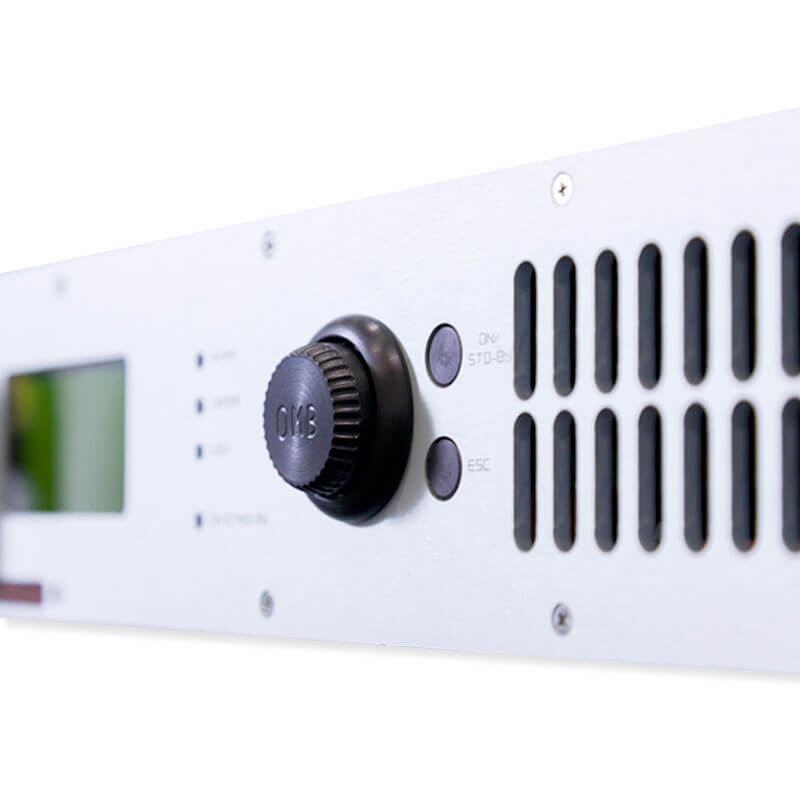

The transmitter features an intuitive control interface equipped with a large LCD screen and a multifunction knob for easy configuration. The EM 100 DIG PLUS can be customized with various options, including an internal stereo generator, RDS functionality, an AES/EBU digital audio input, and SNMP telemetry for remote management via a web server.
100W Stable RF Output: Consistent power across the full FM range (87.5-108MHz).
High Efficiency: Low power consumption (only 141VA at 100W) and minimal heat dissipation.
Advanced Audio Performance: Excellent signal-to-noise ratio (typical 86dB mono) and very low modulation distortion.
Robust & Modular: Built for 24/7 continuous operation with a total weight of just 7.5kg.
| Feature | Value |
| Output Power | 100W rms |
| Frequency Range | 87.5 - 108 MHz |
| Consumption | 141VA @ 100W |
| S/N Ratio (Mono) | >76dB (86dB typical) |
| Distortion | <0.05% (0.02% typical) |
| RF Output connector | N type (50 Ohm) |
| Dimensions | Compact Rack Mount |
| Weight | 7.5 Kg |
