Brand: DMR-Electronics
Model:
Condition: New
Category: FM Zenders

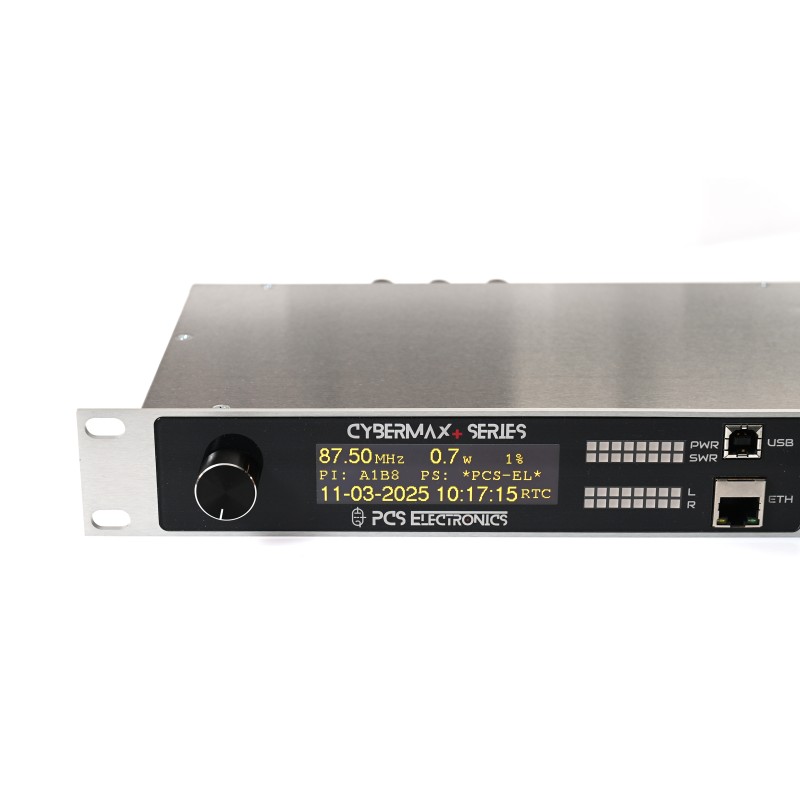

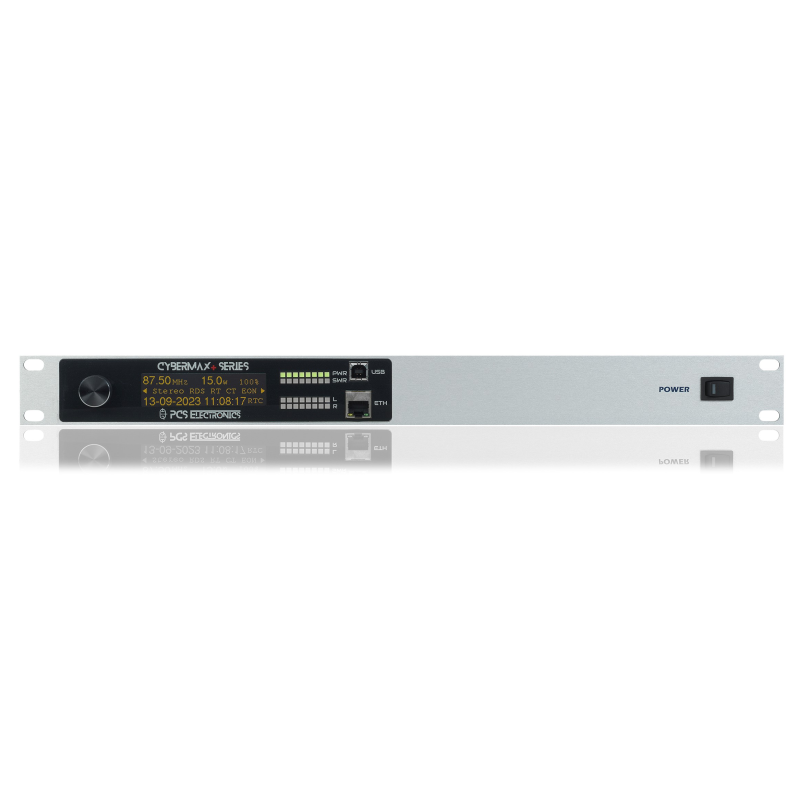

CYBERMAXFM+ BE+ DDS – Professional FM Transmitters with Digital Precision and Maximum Control
The new CYBERMAXFM+ BE+ DDS series, available in 15W, 50W, and 100W models, is the ultimate choice for demanding broadcasters. These Black Edition (BE+) transmitters combine legendary reliability with cutting-edge digital technology and advanced control features.
Accessories
-
GP antenna FM broadband 87-108 1000W
MCA-129P XLR Plug
26 other products in category - FM Zenders
-
5KW FM Transmitter, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE DIGiTAL
-
CYBERMAXFM+ SE V3 200W FM transmitter with DSP and RDS
-
EM 100 DIG PLUS - Professional 100W FM Transmitter
-
ESVA 500 Fm Transmitter
-
TEM 10 W FM Transmitter in 1 unit 19inch rack MPX input
-
CYBERMAXFM+ SE V3 500W FM transmitter with DSP and RDS
-
3KW FM Zender, EM 3000 HE DIG PLUS OMB
-
TEM 50 W FM Transmitter in 1 unit 19inch rack MPX input
-
ESVA 250 FM Transmitter
-
EM 250 DIG PLUS COMPACT – 250W Solid State FM Transmitter
-
1000 W FM Transmitter in 3 unit 19inch rack MPX input
-
ESVA 100 FM Transmitter
-
ESVA 1000 1KW FM Transmitter
-
OMB High efficient 1000W (1KW) FM Transmitter
-
500 W FM Transmitter in 1 unit 19inch rack MPX input
-
TEM 300 W FM Transmitter in 1 unit 19inch rack MPX input
-
CYBERMAXFM+ SE V3 300W FM transmitter with DSP and RDS
-
2KW FM Transmitter, EM 2000 HE DIG PLUS OMB
-
USB+ IO board
-
CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS
-
EM 25 DIG PLUS – 25W Solid State FM Transmitter (Compact & Digital)
-
EM 1000W FM Transmitter HE DIG PLUS COMPACT OMB FM
-
100 W FM Transmitter in 1 unit 19inch rack MPX input
-
CyberNano FM Transmitter LPFM 100mW – Micro Box
-
ESVA 20 FM Transmitter
-
ESVA 50 FM Transmitter
Product informationThanks to Direct Digital Synthesis (DDS) technology, they set a new standard in audio quality, signal stability, and user-friendliness—perfect for FM radio, community stations, event broadcasting, mobile setups, or studio links.
Key Features:
-
Ultra-deep bass down to DC
-
Infinite stereo separation
-
Pure digital transmission via AES/EBU and 192kHz USB—no AD/DA conversion
-
Fully digital stereo and RDS encoder
-
Compatible with StereoTool and MicroMPX
-
GPS synchronization and SFN support
-
Firmware upgradeable via USB
-
OLED display and redesigned housing for improved ventilation
-
5-year warranty for ultimate peace of mind
Complete Control and Connectivity:
-
Bright graphical LCD (122x32) and OLED display
-
Web interface via Ethernet—accessible even from mobile devices
-
Full RDS configuration via display or web interface
-
UECP RDS support—compatible with any studio software
-
RBDS (US) and national character set support
-
Built-in scheduler for automatic power changes twice daily
-
Internet-based time sync with automatic daylight saving adjustment
Streaming Ready:
-
Supports streaming receivers and MP3 playback via USB
-
Song titles from streaming or MP3 appear on the display and are transmitted via RDS
Technical Specifications:
RF Section:
-
Output power: 1 to 75 watts (depending on model), adjustable in 100 steps
-
Frequency range: 87.5 to 108 MHz
-
Spurious emissions: better than -75 dBc at ±1 MHz
-
Harmonics: better than -60 dBc, typically -70 dBc
-
Modulation: FM
-
Supported RDS groups: PS, RT, CT, AF, EON, PTY, TA, TP, ECC, DI, UECP
-
RDS time accuracy: ±0.1 seconds
Audio Section:
-
Inputs: 2x xlr analog, 1x AES/EBU XLR, USB (192kHz direct)
-
Input levels: 4dBu or -10dBu, widely adjustable
-
Input impedance: 10 kOhm balanced
-
Pre-emphasis: Flat, 50 or 75 µs (selectable)
-
THD: less than 0.05%
-
Stereo separation: more than 80 dB
-
Frequency response: 30 Hz to 15 kHz (±0.1 dB)
-
Stereo/Mono switching via display or remote control
General:
-
PWM-controlled fan (for 50W and 100W models) for ultra-quiet operation
-
Operating temperature: -5°C to +45°C
-
Power supply: 15V (included, mains cable sold separately)
-
Enclosure: Standard 19" rack, 1U, 125 mm deep
-
Weight: approx. 4 kg
Included in the Box:
-
CYBERMAXFM+ BE+ DDS transmitter (15W, 50W or 100W)
-
USB cable
-
Short Ethernet cable
-
15V power supply
-
Mains power cable not included—please select the correct one for your country
Why Choose This Transmitter?
This transmitter delivers studio-grade audio, full remote web control, compatibility with digital workflows and RDS, and is built for continuous, reliable operation. No tuning required, no complicated setup—just plug it in, set your frequency and power, and you're ready to broadcast, whether live or in the studio.
A powerful transmitter for serious broadcasters. Future-ready.
