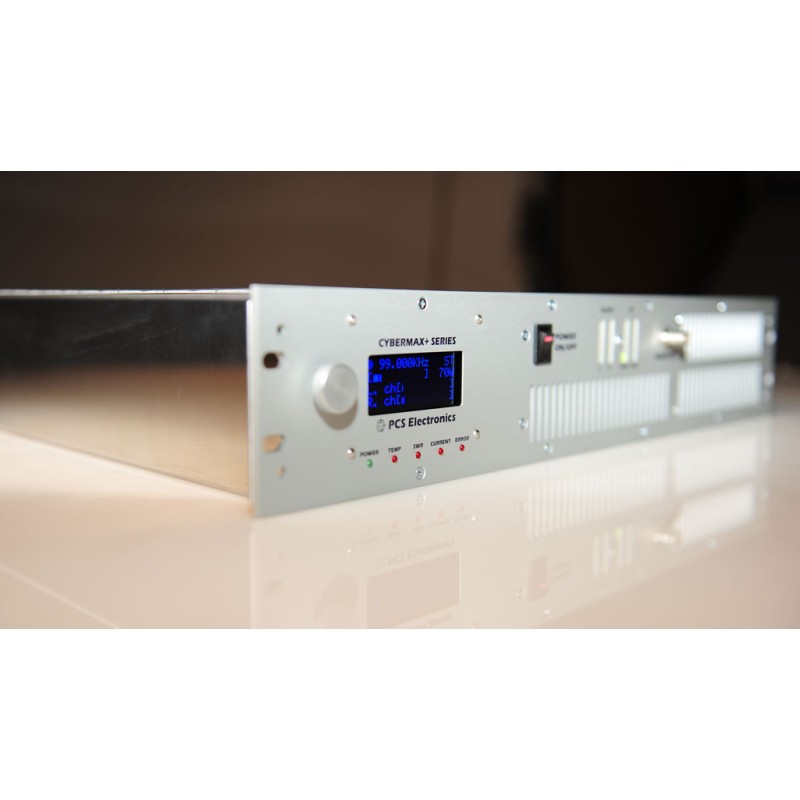

CYBERMAXFM+ SE V3 300W FM transmitter with DSP and RDS
View larger
View larger
View larger
View larger
Innovation in Studio & Broadcast Solutions
0
Product
Products
(empty)
No products
Free shipping!
Shipping
€ 0,00
Tax
€ 0,00
Total
Prices are tax included
Product successfully added to your shopping cart
Quantity
Total
There are 0 items in your cart.
There is 1 item in your cart.
Total products
(tax incl.)
Total shipping (tax incl.)
Free shipping!
Tax
€ 0,00
Total
(tax incl.)
View larger
Brand: PCS-Electronics
Model:
Condition: New
Category: FM Zenders
The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters
Accessories
-
26 other products in category - FM Zenders
-
ESVA 100 FM Transmitter
-
2KW FM Transmitter, EM 2000 HE DIG PLUS OMB
-
EM 25 DIG PLUS – 25W Solid State FM Transmitter (Compact & Digital)
-
ESVA 250 FM Transmitter
-
CYBERMAXFM+ SE V3 500W FM transmitter with DSP and RDS
-
EM 250 DIG PLUS COMPACT – 250W Solid State FM Transmitter
-
EM 100 DIG PLUS - Professional 100W FM Transmitter
-
EM 1000W FM Transmitter HE DIG PLUS COMPACT OMB FM
-
3KW FM Zender, EM 3000 HE DIG PLUS OMB
-
5KW FM Transmitter, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE DIGiTAL
-
CYBERMAXFM+ SE V3 200W FM transmitter with DSP and RDS
-
OMB High efficient 1000W (1KW) FM Transmitter
-
CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS
-
ESVA 500 Fm Transmitter
-
USB+ IO board
-
TEM 50 W FM Transmitter in 1 unit 19inch rack MPX input
-
High-End FM-Transmitter DDS 15W 50W 75W
-
500 W FM Transmitter in 1 unit 19inch rack MPX input
-
ESVA 20 FM Transmitter
-
CyberNano FM Transmitter LPFM 100mW – Micro Box
-
1000 W FM Transmitter in 3 unit 19inch rack MPX input
-
TEM 300 W FM Transmitter in 1 unit 19inch rack MPX input
-
ESVA 1000 1KW FM Transmitter
-
TEM 10 W FM Transmitter in 1 unit 19inch rack MPX input
-
ESVA 50 FM Transmitter
-
100 W FM Transmitter in 1 unit 19inch rack MPX input
Product informationProduct discription:
The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.
Technical facts:
RF SECTION
- Output power: 300W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ +- 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM
AUDIO SECTION
- Audio connectors: bnc (MPX model) plus rca and xlr (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz
GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to +45°C
- External dimensions 200W/300W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (300-400), 8Kg (600W), 9Kg (800W)
- Volumetric weight up to 20KgNote: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDSModel name DSP
processorRDS
processorXLR
inputsFull unit name SE V3 MPX No No No, just BNC for MPX CyberMaxFM+ SE V3 MPX SE V3 STEREO + RDS Yes Yes Yes CyberMaxFM+ SE V3 STEREO DSP+RDS -
