> >OMB Broadcast Link MT/MR 20 PLATINUM (170-570 MHZ BAND )

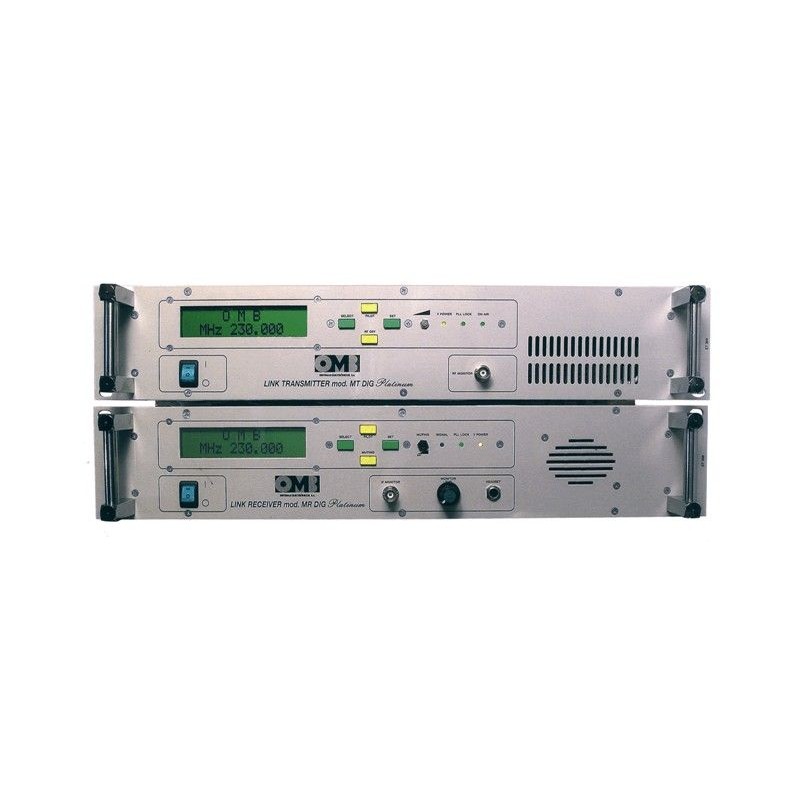

OMB Broadcast Link MT/MR 20 PLATINUM (170-570 MHZ BAND ) Bekijk groter

OMB Broadcast Link MT/MR 20 PLATINUM (170-570 MHZ BAND )

OMB

170-570 MHZ

Nieuw

OMB Professional MT / MR PLATINUM FM STL (Studio-to-Transmitter Link)

Meer details

✓ Scherpe prijs ✓ Veilig betalen
✓ Gratis verzenden ✓ Niet goed geld terug
✓ Volume korting ✓ Korting sparen
✓ Groot assortiment ✓ QShops Keurmerk

Shop Rating


score 5-5 824 ratings

Bij het kopen van dit product krijgt u in totaal 109 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 109 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 21,80.


€ 2.190,07 incl. BTW

Volumekorting

Aantal Prijs U bespaart
5 € 1.971,06 Tot € 1.095,04
10 € 1.861,56 Tot € 3.285,11

Meer informatie

 Product Discription:

The MT/MR PLATINUM FM STL (Studio-to-Transmitter Link), is one of the latest OMB products. It is made up of a 20W (170~570MHz) transmitter externally synthesized in 20MHz sub-bands with a step of 10KHz, microprocessor controlled, LCD display for the visualization of the most relevant transmission parameters (frequency, forward and reflected power, modulation level, pilot signal), balanced Mono, Stereo (MPX) and 3 SCA inputs and SWR fold back protection. Furthermore, the MT/MR Platinum STL includes a jumper in order to get a proper operation with digital signals.





 Technical Facts:

  • OPERATING FREQUENCY RANGE 170 ~ 570MHz, in sub-ranges of 20MHz.
  • ModulaTiOn FM, 75kHz peak deviation.
    180k F3E mono
    256k F3E stereo
  • SYNTHESIS STEP 10kHz
  • COMPOSITE MPX OUTPUT RESPONSE
    15kHz ~ 67kHz +0.1/-0.5dB
    < -6dB @100kHz
    < -20dB @125kHz
  • MONITOR OUTPUT WIDE-BAND RESPONSE
    15kHz ~ 100kHz +0.1/-1.5dB
     -3dB typical @125kHz
     -6dB typical @160kHz
  • MONO/STEREO DECODED RESPONSE
    30Hz ~ 15kHz ?0.2dB
  • SIGNAL/NOISE RATIO (30~20000Hz rms)
    > 70dB, typical 76dB ( mono)
    > 66dB, typical 72dB (stereo)
  • MODULATION DISTORTION (dev. 100%) @ 1kHz
    ≤ 0.1%, typical 0.03% (mono)
    ≤ 0.3%, typical 0.2% (1 stereo channel)
  • MODULATION DISTORTION (dev. 100%) @ 30~7500Hz
    ≤ 0.25%, typical 0.12% (mono)
    ≤ 0.3%, typical 0.2% (1 stereo channel)
  • STEREO CROSSTALK (typical)
    > 50dB (400 ~ 10000Hz)
    > 40dB (100 ~ 15000Hz)
    input / output signals
    Alarm, RF/LF Disable, Low RF Field, On the Air, RS232 for monitoring and control.
  • POWER SUPPLY 100 ~ 240Vac, 47~63Hz
  • OPERATING TEMPERATURE RANGE 0 ~ 35C recommended -10 ~ 45C max.
