IMG-Stage Line | Monacor STA-800D

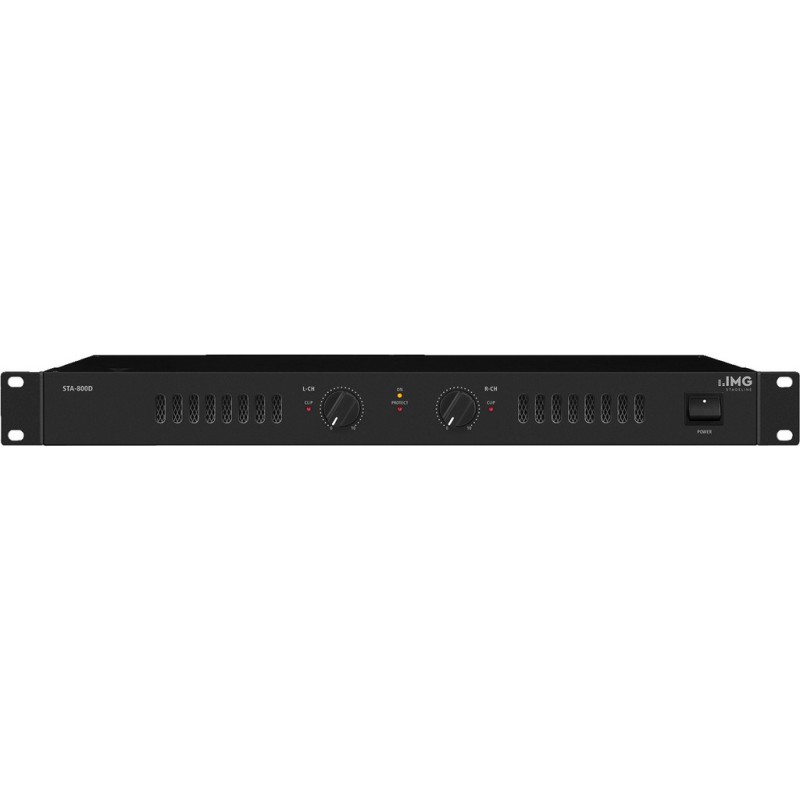

IMG-Stage Line | Monacor STA-800D Professional stereo PA versterker Bekijk groter

IMG-Stage Line | Monacor STA-800D

IMG-Stage Line


IMG-Stage Line | Monacor STA-800-D Professional stereo PA versterker.

De nieuwe generatie digitale PA versterkers van IMG Stage Line maken indruk met een hoog vermogen vermogen en hoge energie-efficiëntie.

Bij het kopen van dit product krijgt u in totaal 31 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 31 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 6,20.

€ 639,99

Korting op je Bestelling Korting op je Bestelling
Gratis verzenden Gratis verzenden tot 10 KG
Volume korting Volume korting
Bonus systeem Bonus systeem
Veilig betalen Veilig betalen
Niet goed geld terug Niet goed geld terug
Trustpilot Trustpilot


Aantal Korting U bespaart
2 2% Tot € 25,60
4 4% Tot € 102,40
6 6% Tot € 230,40
8 8% Tot € 409,59
10 10% Tot € 639,99

Productinformatie IMG-Stage Line | Monacor STA-800D

Product discription:

The new generation of class D PA amplifiers from IMG STAGELINE impresses with a high power capability and high energy efficiency.
Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
Stereo class D PA amplifier
  • Class D concept with power amplifier modules from HYPEX
  • Silent operation due to temperature-controlled fans
  • Lightweight design due to compact switch-mode power supply
  • Energy-efficient concept due to a high efficiency
  • High power reserves due to the application of two switch-mode power supplies
  • Powerful bass reproduction due to large buffer capacitors (high power reserves)
  • 2 level controls
  • Protected against short circuit and overtemperature
  • LEDs for indicating power, overload (clip) and protect
  • Super slimline design
  • NEUTRIK SPEAKON connections

Technical facts:

Peak output power 1,000 W
Power rating 800 W
Power rating at 4 Ω 2 x 400 W
Power rating at 8 Ω 2 x 210 W
Channels 2
Inputs 1 V/10 kΩ (XLR, bal.),

1 V/4.7 kΩ (RCA)

Frequency range 20-20,000 Hz
Integrated limiter no
S/N ratio > 110 dBA
THD < 0.004%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 920 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 52 mm
Depth 298 mm
Rack spaces, RS 1
Weight 4 kg
Connections 1 x 3-pole XLR L/R

1 x RCA L/R


2 x pair of screw terminals
