        Showing 1 - 3 of 3 items

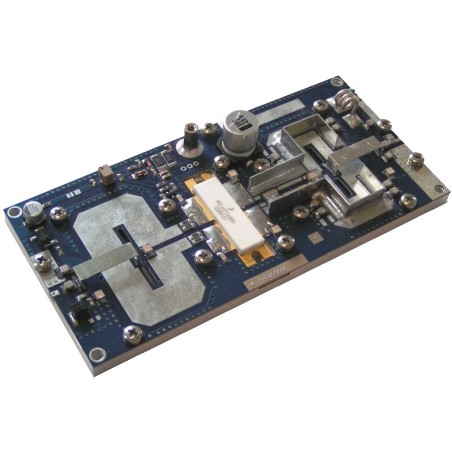

        • Power Amplifier Pallet 600W FM PAFM0600XR
            € 779,99 In Stock

        Power Amplifier Section 600W FM Designed primarily for FM application, this amplifier is suitable for any CW or pulsed application. 87.5 - 108 MHz Pout: 600 W Gain: 23 dB Extreme Ruggedness (VSWR 65:1) Class C Device: MRFE6VP5600H Supply : 30-48 VDC - 43VDC nominal Dimensions(LxWxH): 140x68x21 mm 5,55”x2,67”x0,82”

          € 779,99
          In Stock
          • Power Amplifier Pallet 300W FM
              € 459,99 In Stock

          Power Amplifier Section 300W FM Designed primarily for FM application, with a reliable Power Ldmos device. This amplifier is suitable for any CW or pulsed application. 87.5 - 108 MHz Pout : 300 W Gain : 20dB 50 Ohm in/out impedance Class C Devices : MRF6V2300NR1 Supply : 48 Vdc nominal Dimensions : (LxWxH):60x65x30mm 2,36”x2,56”x1,18”

            € 459,99
            In Stock
            • Power Amplifier Pallet 1000W FM BLF188XR
                € 874,99 In Stock

            Power Amplifier Section 1000W FM BLF188XR Designed primarily for FM application, this amplifier is suitable for any CW or pulsed application. 87.5 - 108 MHz Pout: 1000 W Gain: 23 dB Extreme Ruggedness (VSWR 65:1) Class B Device: AMPLEON BLF188XR Supply : 30-50 VDC - 50VDC nominal Dimensions(LxWxH): 135x60x30 mm

              € 874,99
              In Stock
