GP FM Antenna: The reliable foundation for omnidirectional broadcasts

GP antennas, or Ground Plane antennas, are the most commonly used antennas for local and semi-professional FM radio broadcasting. They are specifically designed to radiate signals evenly in all directions (360 degrees). This makes them ideal for radio stations that want to cover a wide area from a central point. Our GP antennas are precisely tuned to the FM band (87.5 - 108 MHz) for maximum efficiency and range.

Technology and construction of the Ground Plane antenna

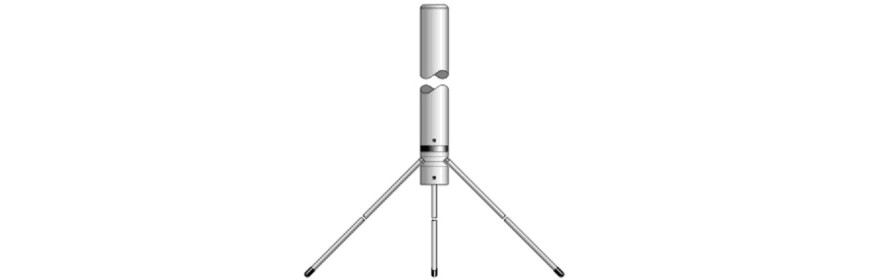

A GP antenna consists of a vertical radiation element and several horizontal or downward-pointing elements (the radials). These radials act as an artificial ground plane or counterbalance. This construction ensures a stable impedance and a low beam angle, which is essential to send the signal over the horizon instead of into the air.

• Omnidirectional: Radiates the signal evenly in all directions.
• Broadband design: Easily tune to the desired frequency within the FM broadcast band.
• Rugged and weather-resistant: Made from high-quality aluminum or stainless steel for a long lifespan.

Optimal signal transmission and installation

When installing a GP antenna, the height of the mast is the most important factor for your ultimate range. Because FM signals travel along a "line of sight", the higher the antenna is, the greater the range. In addition, the quality of the coaxial cable and connectors is crucial to minimize power loss between the FM transmitter and the antenna.

The importance of proper SWR tuning

Purchasing the right antenna is an investment in the performance of your station. It is essential to accurately tune the antenna to your broadcast frequency to achieve a low Standing Wave Ratio (SWR). A poor SWR causes power to be reflected back to the transmitter, which can lead to overheating or damage to the output stage. Our GP antennas are often easily adjustable in length to achieve this optimal tuning.

Choose quality and reach

A reliable antenna increases the commercial value and professionalism of your radio station. At DMR Electronics you will find GP antennas that have proven themselves in countless broadcast projects worldwide. Whether you are a local broadcaster or an event channel, we offer the hardware that ensures that you come across loud and clear to your listeners.

GP FM antennas FAQ

• What is the advantage of a GP antenna compared to a dipole antenna?

A GP antenna is less dependent on the mast to which it is mounted due to its radial construction. Where a vertical dipole can be influenced by the metal tube directly behind it, the GP antenna creates its own counterbalance, often resulting in a more constant round-radius diagram.

• Do I still need to ground the radials of the antenna itself?
[Image showing the assembly of radials on a GP antenna base]

The radials form the "electrical ground" for the signal, but for safety (lightning and static electricity) it is always advisable to properly connect the mast on which the antenna is located to the lightning protection of the building.

• How much power can a GP antenna handle?

This depends on the materials used and the thickness of the radiator. We offer GP antennas ranging from models for small 15W transmitters to heavier versions that can handle up to 500W or 1000W continuous power.
