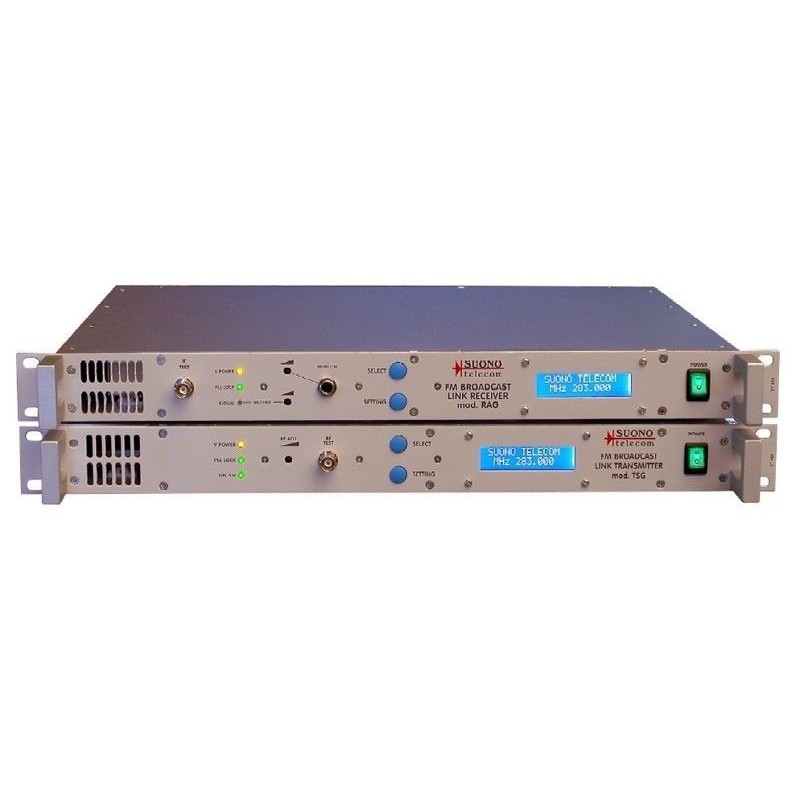

Suono TSG RAG FM 200~960 MHz Broadcast audio wireless link

Product Discription:

Transmit your program, events, parties and much more with the new Suono TSG RAG

Technical Facts:

Transmitter:

• Frequency Range: 200~960 MHz -20MHz sub-band
• Type of Modulation FM Class F3
• VCO Tuning 25 MHz
• Frequency Stability ± 2,5ppm (Bettr 0n request)
• Synthesizer Step 25KHz
• Power Output 10 Watts
• Spurious Emission < -80 dB or better
• Harmonic Emission < -65 dB (-80 dB on request)
• Stereo Separation > 55 dB @ 1 KHz
• Distorsion < 0.2% (TYP 00.8 %) @ 1KHz)
• Base Band 30 Hz - 60 KHz within 0.15 dB
• Unweighted S/N Ratio > 74 dB rms at 30 Hz ~ 20 KHz
• Enphasis 50 or 75 μS - selectable
• RF Connectors N-F 50 ohm
• Input Base Band Imp. 2 Kohm
• Input Mono Impedence 600 Ohm
• Cooling Forced air
• OP. Temperature Range 0 ÷ +45°C
• Maximum Umidity 90%
• AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
• Dimension 1 Units Rack 19" 44 cm Depth
• Weight 6.5 Kg

Receiver:

• Frequency Ranges 200~960 MHz - 20MHz sub-band
• Type of Modulation FM Class F3
• VCO Tuning 25 MHz
• Frequency Stability ± 2.5 ppm (Better on request)
• Synthesizer Step 25KHz
• Image Rejection 60dB Typ.
• RN Noise Figure 6dB or lower
• Stereo Separation > 45 dB @ 1 KHx
• Distorsion < 0.5% (TYP 0.2 % @ 1KHz)
• Base Band 30 Hz - 60 KHz within 0.08 dB
• S/N Ratio > 72 dB with 0.2 mV input (Typ 78 dB)
• Deenphasis 50 or 75 μS int. selectable
• RF Connectors N-F 50 ohm
• B. Band-IF Conn. BNC-F
• Base-Band Imp. < 30 ohm
• Cooling Forced air
• P. Temp. Range 0 ÷ +45°C
• Maximum Umidity 90%
• AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
• Dimension 1 Units Rack 19" 44 cm Depth
• Weight 5.8 Kg
