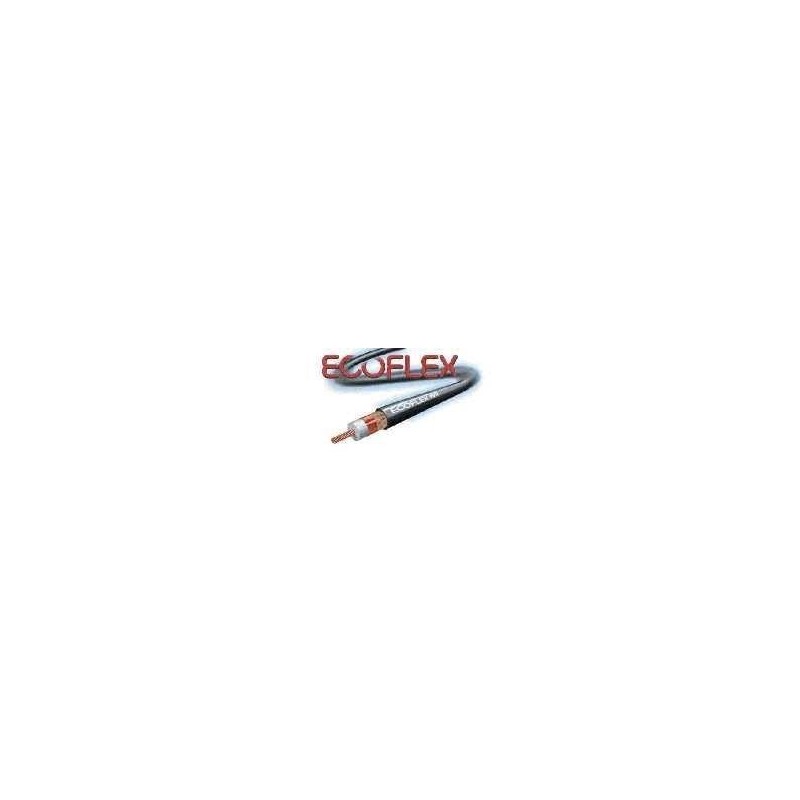

ECOFLEX 10 Plus Coax kabel

          Nieuw

              ECOFLEX 10 Coax kabel, is the right choice when a low loss, highly flexible microwave rated cable is required. It?s economical price makes ECOFLEX 10 the clear leader for today?s demanding applications

            Meer details

          Bij het kopen van dit product krijgt u in totaal 36 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 36 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 7,20.


                € 181,81

                    Coax lengte

                      • Coax kabel 25 meter
                      • Coax kabel 50 meter
                      • Coax kabel 100 meter

                    Optie

                      • Coax only
                      • Install 2x PL259 (SO239 male)
                      • Install 2xN male connector
                      • Install N male BNC male
                      • Install N male PL259 (SO239 male)

                  Rabatt auf Ihre Bestellung   Korting op je Bestelling
                  Gratis verzenden Gratis verzenden tot 10 KG
                  Volume korting Volume korting
                  Bonus systeem Bonus systeem
                  Veilig betalen Veilig betalen
                  Niet goed geld terug Niet goed geld terug
                  QShops certificaat QShops certificaat
                  Trustpilot Trustpilot

          Volumekorting

            Aantal Korting U bespaart
            2 2% Tot € 7,27
            4 4% Tot € 29,09
            6 6% Tot € 65,45
            8 8% Tot € 116,36
            10 10% Tot € 181,81

          Meer informatie ECOFLEX 10 Plus Coax kabel

            ECOFLEX 10 Plus Coax kabel




            Loss in dB per 100m

            Frequency ECOFLEX 10
            5 MHz 0,8
            10 MHz 1,2
            50 MHz 2,8
            100 MHz 4,0
            145 MHz 4,8
            200 MHz 5,9
            432 MHz 8,9
            500 MHz 9,6
            1000 MHz 14,2
            1296 MHz 16,5
            1500 MHz 17,9
            2000 MHz 21,2
            2320 MHz 23,1
            2400 MHz 23,6
            3000 MHz 27,0
            4000 MHz 32,2
            5000 MHz -
            6000 MHz -
            = amateur radio band




            Technical Data
            Impedance 50 Ωs
            Centre Conductor stranded copper 7x1.0mm
            Dielectric PE-Compound
            Outer conductor 1 PE-coated copperfoil, coverage 100%
            Outer conductor 2 Copperbraid, coverage 72%
            Diameter over sheath 10,2 mm
            Velocity factor 0,86
            Capacity per meter 77 pF
            Buig cirkel diameter zonder te forceren 158 mm
