1KW RF FM Output Board

          Nieuw

              RF output board 1KW for N or SO239 connector without SWR/PWR directional coupler

            Meer details

          Bij het kopen van dit product krijgt u in totaal 1 Loyaliteit punt. Uw winkelwagen bevat een totaal aan 1 Loyaliteit punt die omgezet kunnen worden in een waardebon van € 0,20.


                € 8,26

                    Output board opties

                      • 1000W RF Output Board, no coax
                      • 1000W RF Output Board, with coax

                  Rabatt auf Ihre Bestellung   Korting op je Bestelling
                  Gratis verzenden Gratis verzenden tot 10 KG
                  Volume korting Volume korting
                  Bonus systeem Bonus systeem
                  Veilig betalen Veilig betalen
                  Niet goed geld terug Niet goed geld terug
                  QShops certificaat QShops certificaat
                  Trustpilot Trustpilot

          Volumekorting

            Aantal Korting U bespaart
            2 2% Tot € 0,33
            4 4% Tot € 1,32
            6 6% Tot € 2,97
            8 8% Tot € 5,29
            10 10% Tot € 8,26

          Meer informatie 1KW RF FM Output Board

            Product discription:

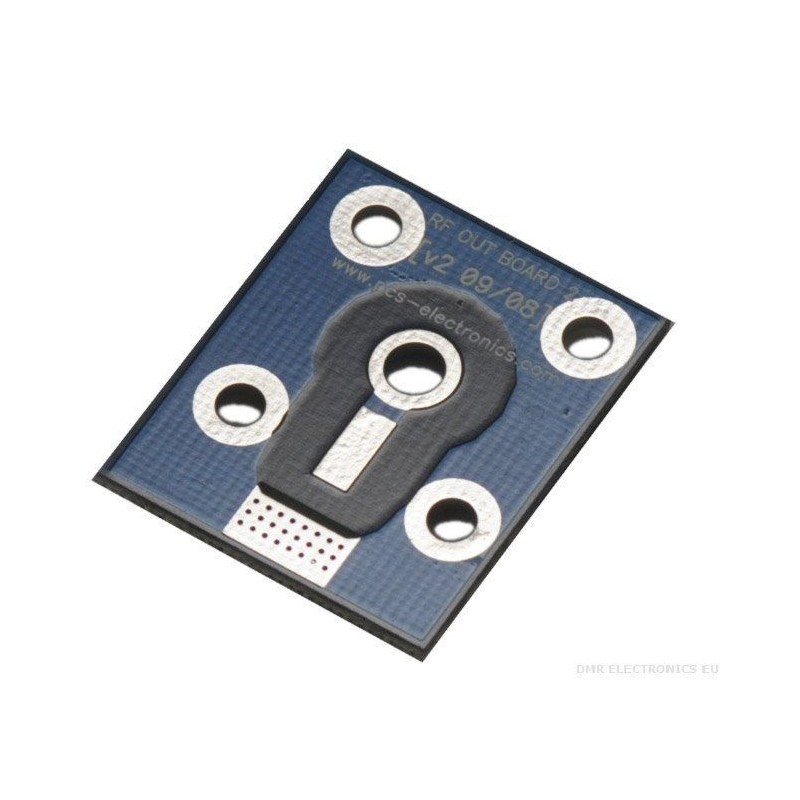

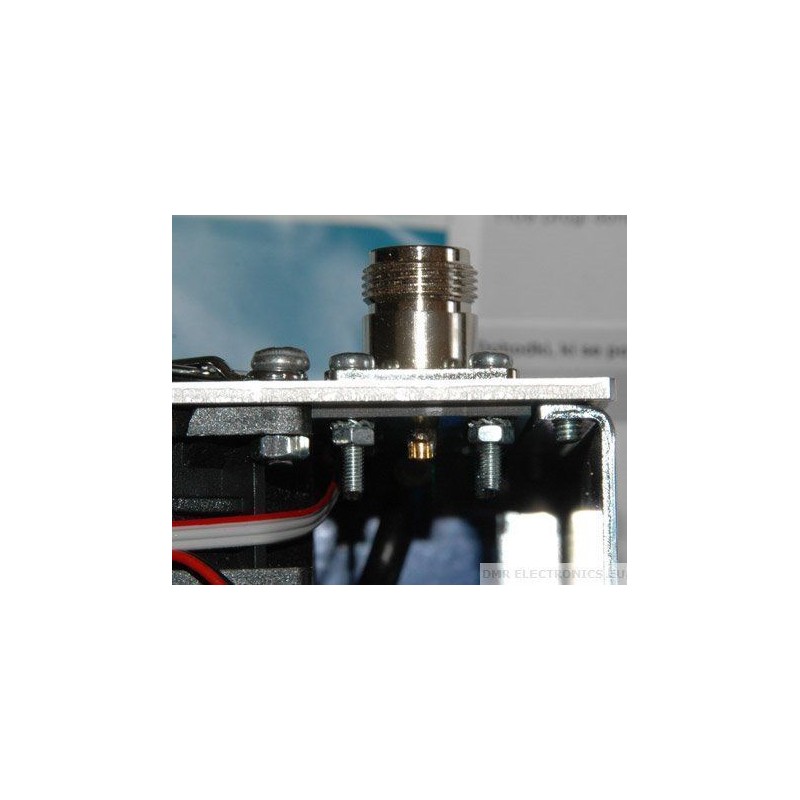

            A simple solution that could make your life so much easier. If you ever wanted to mount a N or SO239 connector to your enclosure and connect coaxial cable to it in a clean and effective way without adding parasitic inductance and making it all look like a mess, you probably noticed that this isn't so easy to do. We do have a simple solution, however. This small PCB screws tightly and directly to the N or SO239 connector (see pictures) and enables a clean, low series inductance and a professionally looking contact. Perfect for RF up to microwave range.
            Coaxial cable can be easily soldered to the terminals as shown on the photos. We recommend teflon based coaxial cable for such interconnection wiring since teflon isolation does not melt when soldered or heated due to high power level. Boards with installed 15cm of RG142 teflon cable are also available. This cable is also prepared for soldering on its free end, making installation extremely simple.



            Technical facts:

            - Size: 33mmx29mm
            - Power handling: 1000W
            - Frequency range: 0 - 1000MHz
            - Connectors supported: N and SO239
            - Includes: Empty PCB, connector and screws not included
