2500W RF Output Board with SWR/PWR pickup (7/16 connector)


              2500W RF Output Board with SWR/PWR pickup (7/16 connector)

              RF output board for 7/16 connector with SWR/PWR directional coupler

              Now with TEFLON laminate and frequency compensated inside FM broadcasting band!

            Meer details

          Bij het kopen van dit product krijgt u in totaal 2 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 2 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 0,40.

                € 41,31

                    Output board opties

                      • 2500W RF Output Board with SWR/PWR and 15cm semi-rigid
                      • 2500W RF Output Board with SWR/PWR for 7/16 connector

                  Rabatt auf Ihre Bestellung   Korting op je Bestelling
                  Gratis verzenden Gratis verzenden tot 10 KG
                  Volume korting Volume korting
                  Bonus systeem Bonus systeem
                  Veilig betalen Veilig betalen
                  Niet goed geld terug Niet goed geld terug
                  QShops certificaat QShops certificaat
                  Trustpilot Trustpilot


            Aantal Korting U bespaart
            2 2% Tot € 1,65
            4 4% Tot € 6,61
            6 6% Tot € 14,87
            8 8% Tot € 26,44
            10 10% Tot € 41,31

          Meer informatie 2500W RF Output Board with SWR/PWR pickup (7/16 connector)

            Product discription:

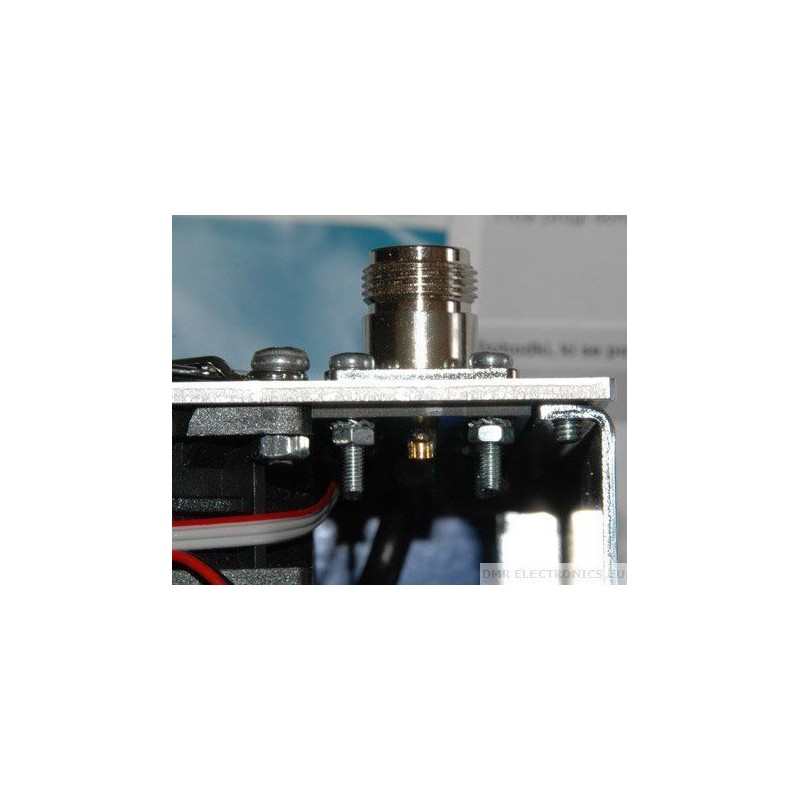

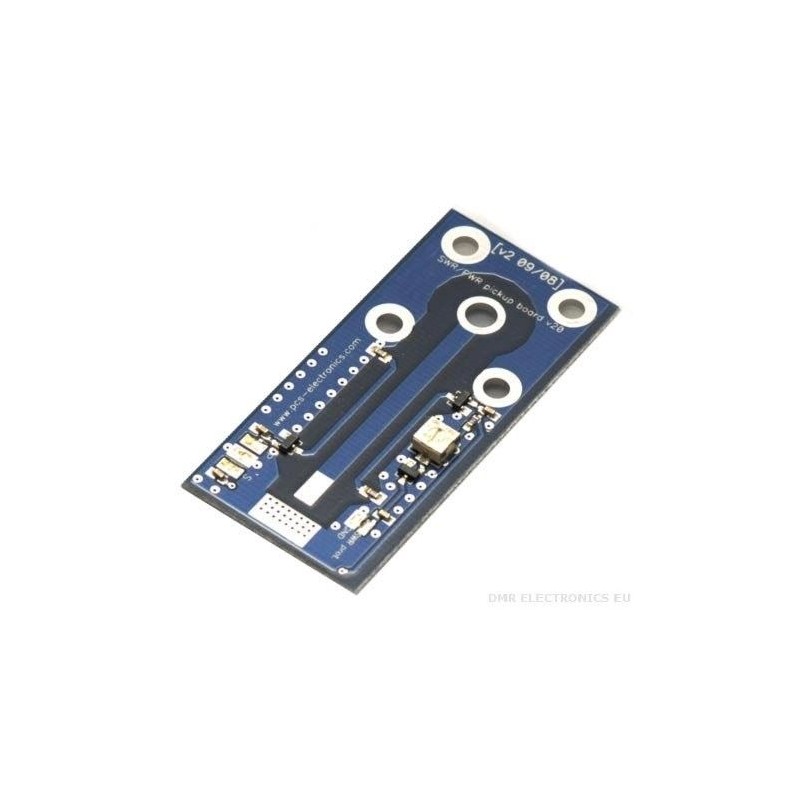

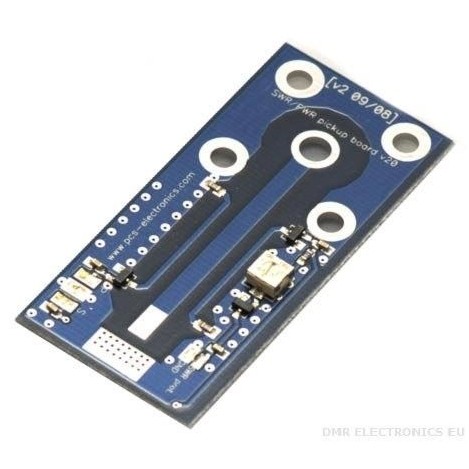

            A simple solution that could make your life so much easier. If you ever wanted to mount a 7/16 connector to your enclosure and connect coaxial cable to it in a clean and effective way without adding parasitic inductance and making it all look like a mess, you probably noticed that this isn't so easy to do. We do have a simple solution, however. This small PCB screws tightly and directly to the panel mounted 7/16 connector (see pictures) and enables a clean, electrically excellent and also good looking contact. To top it off, it also contains a small stripline directional coupler. Three-pin solder header provides ground and two voltages, one for SWR and the other for POWER. You can now measure this voltage to determine your output POWER or SWR. It is also possible to use this board to simply build SWR protection.

            Coaxial cable can be easily soldered to the terminals as shown on the photos. We recommend teflon based coaxial cable for such interconnection wiring since teflon isolation does not melt when soldered or heated due to high power level. Boards with installed 15cm of semi-rigid 50ohm teflon cable are also available. This cable is also prepared for soldering on its free end, making installation extremely simple.

            The boards are now produced on TEFLON laminate and take much higher power, also they are freqency compensated so a reading at 108MHz and 88MHz produces the same readings.


            Technical facts:

            - Size: , PTFE (TEFLON) laminate
            - Power handling: 0-2500W with heatsinking
            - Frequency range: 0-500MHz (Frequency compensated for equal reading inside entire FM broadcasting band)
            - Connectors supported: panel-mounted 7/16 or some versions of panel mounted 7/8 (if you can't find it email)
            - Includes: PCB and all components, connector and screws not included


          3 andere producten in categorie: RF FM uitgang boards en swr pickup boards
