                        RF Output Board with SWR/PWR pickup (7/16 connector) 2500W

                                 RF Output Board with SWR/PWR pickup (7/16 connector) 2500W View larger
                                  •  RF Output Board with SWR/PWR pickup (7/16 connector) 2500W
                                  •  RF Output Board with SWR/PWR pickup (7/16 connector) 2500W

                              Display all pictures

                              New

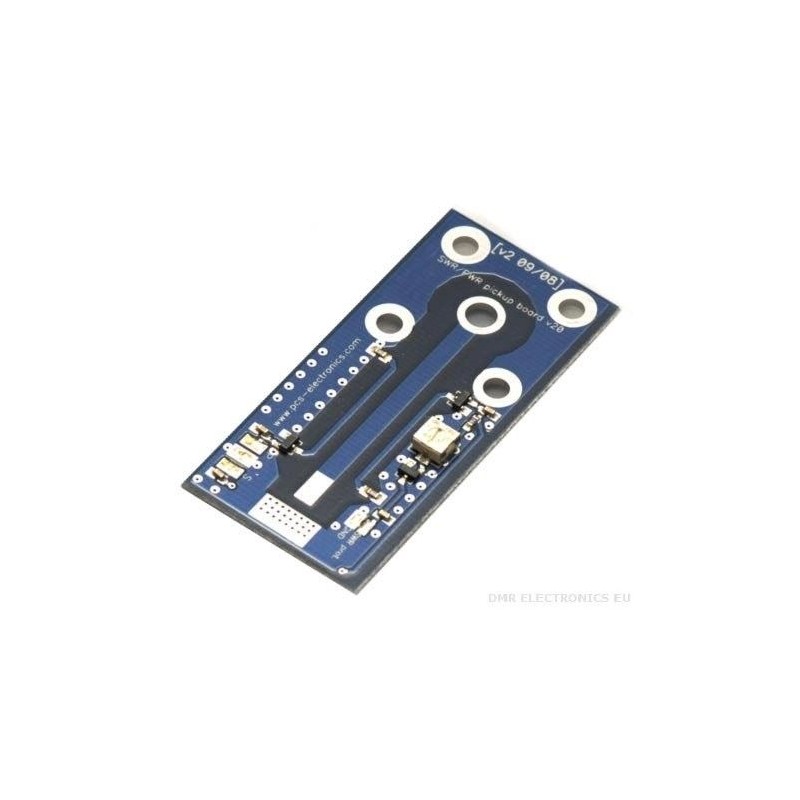

                                  2500W RF Output Board with SWR/PWR pickup (7/16 connector)

                                  RF output board for 7/16 connector with SWR/PWR directional coupler

                                  Now with TEFLON laminate and frequency compensated inside FM broadcasting band!

                                More details

                              Warning: Last items in stock!

                              Availability date:

                                By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of € 0,40.


                                • Print your Product page

                                      € 33,05

                                      This product is not sold individually. You must select at least 1 quantity for this product.

                                          Output board options

                                            • 2500W RF Output Board with SWR/PWR and 15cm semi-rigid

                                            • 2500W RF Output Board with SWR/PWR for 7/16 connector

                                         Free shipping to NL
                                         Volume discount
                                         Bonus system
                                         Safe to Pay
                                         Money back guarantee
                                         QShops certification

                                Volume discounts

                                  QuantityPriceYou Save
                                  2 € 32,39 Up to € 1,32
                                  3 € 32,06 Up to € 2,97
                                  4 € 31,73 Up to € 5,29
                                  5 € 29,75 Up to € 16,53
                                  10 € 28,09 Up to € 49,58

                                More info

                                  Product discription:


                                  A simple solution that could make your life so much easier. If you ever wanted to mount a 7/16 connector to your enclosure and connect coaxial cable to it in a clean and effective way without adding parasitic inductance and making it all look like a mess, you probably noticed that this isn't so easy to do. We do have a simple solution, however. This small PCB screws tightly and directly to the panel mounted 7/16 connector (see pictures) and enables a clean, electrically excellent and also good looking contact. To top it off, it also contains a small stripline directional coupler. Three-pin solder header provides ground and two voltages, one for SWR and the other for POWER. You can now measure this voltage to determine your output POWER or SWR. It is also possible to use this board to simply build SWR protection.

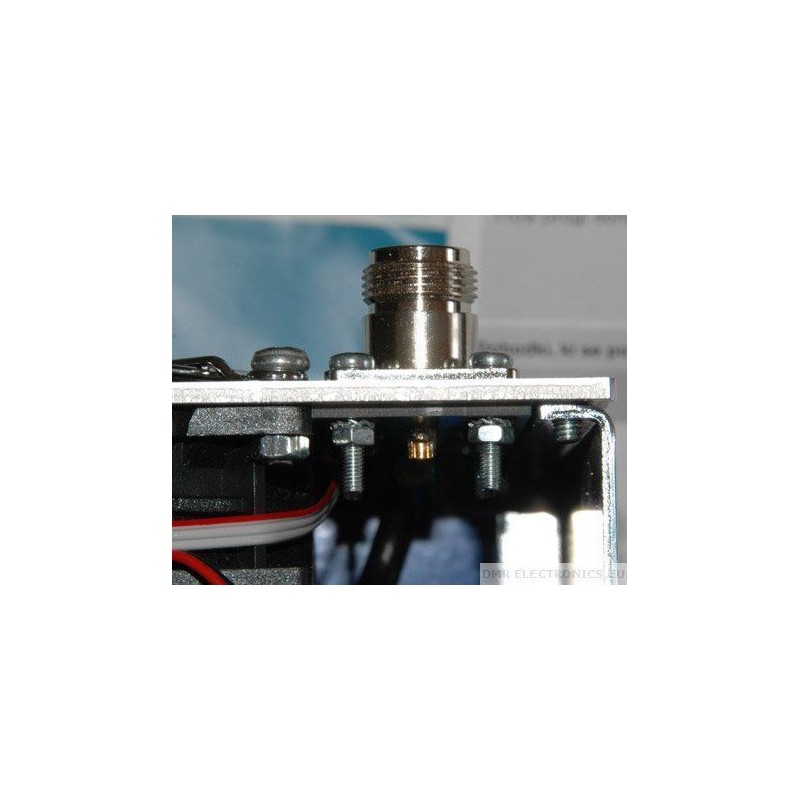

                                  Coaxial cable can be easily soldered to the terminals as shown on the photos. We recommend teflon based coaxial cable for such interconnection wiring since teflon isolation does not melt when soldered or heated due to high power level. Boards with installed 15cm of semi-rigid 50ohm teflon cable are also available. This cable is also prepared for soldering on its free end, making installation extremely simple.

                                  The boards are now produced on TEFLON laminate and take much higher power, also they are freqency compensated so a reading at 108MHz and 88MHz produces the same readings.



                                  Technical facts:


                                  - Size: , PTFE (TEFLON) laminate
                                  - Power handling: 0-2500W with heatsinking
                                  - Frequency range: 0-500MHz (Frequency compensated for equal reading inside entire FM broadcasting band)
                                  - Connectors supported: panel-mounted 7/16 or some versions of panel mounted 7/8 (if you can't find it email)
                                  - Includes: PCB and all components, connector and screws not included
