> Broadcast FM-Studio Transmitter Link>OMB Broadcast Link MT/MR 20 PLATINUM (940-960 MHZ BAND)

OMB Broadcast Link MT/MR 20 PLATINUM (940-960 MHZ BAND)

OMB

940-960 MHZ

New

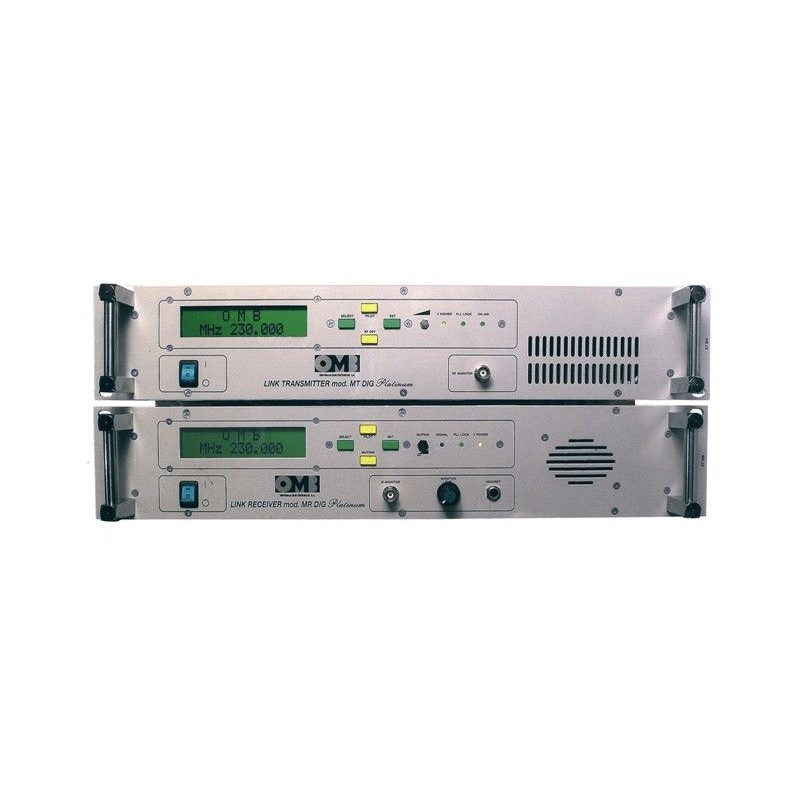

OMB Professional MT / MR PLATINUM FM STL (Studio-to-Transmitter Link)

More details

4 Items in stock

✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

By buying this product you can collect up to 137 loyalty points. Your cart will total 137 loyalty points that can be converted into a voucher of EUR 27,40.


EUR 2.744,99 tax incl.

Add to wishlist

Volume discounts

Quantity Price You Save
5 EUR 2.635,19 Up to EUR 549,00
10 EUR 2.497,94 Up to EUR 2.470,49

More info

Product Discription:

The MT/MR PLATINUM FM STL (Studio-to-Transmitter Link), is one of the latest OMB products. It is made up of a 20W (940~960MHz) transmitter externally synthesized in 20MHz sub-bands with a step of 10KHz, microprocessor controlled, LCD display for the visualization of the most relevant transmission parameters (frequency, forward and reflected power, modulation level, pilot signal), balanced Mono, Stereo (MPX) and 3 SCA inputs and SWR fold back protection. Furthermore, the MT/MR Platinum STL includes a jumper in order to get a proper operation with digital signals.


Technical Facts:

  • OPERATING FREQUENCY RANGE 940 ~ 960MHz, in sub-ranges of 20MHz.
  • ModulaTiOn
    FM, 75kHz peak deviation.
    180k F3E mono
    256k F3E stereo
  • SYNTHESIS STEP
    10kHz
  • COMPOSITE MPX OUTPUT RESPONSE
    15kHz ~ 67kHz +0.1/-0.5dB
    < -6dB @100kHz
    < -20dB @125kHz
  • MONITOR OUTPUT WIDE-BAND RESPONSE
    15kHz ~ 100kHz +0.1/-1.5dB
     -3dB typical @125kHz
     -6dB typical @160kHz
  • MONO/STEREO DECODED RESPONSE
    30Hz ~ 15kHz ?0.2dB
  • SIGNAL/NOISE RATIO (30~20000Hz rms)
    > 70dB, typical 76dB ( mono)
    > 66dB, typical 72dB (stereo)
  • MODULATION DISTORTION (dev. 100%) @ 1kHz
    ≤ 0.1%, typical 0.03% (mono)
    ≤ 0.3%, typical 0.2% (1 stereo channel)
  • MODULATION DISTORTION (dev. 100%) @ 30~7500Hz
    ≤ 0.25%, typical 0.12% (mono)
    ≤ 0.3%, typical 0.2% (1 stereo channel)
  • STEREO CROSSTALK (typical)
    > 50dB (400 ~ 10000Hz)
    > 40dB (100 ~ 15000Hz)
  • input / output signals
    Alarm, RF/LF Disable, Low RF Field, On the Air, RS232 for monitoring and control.
  • POWER SUPPLY
    100 ~ 240Vac, 47~63Hz
  • OPERATING TEMPERATURE RANGE 0 ~ 35C recommended -10 ~ 45C max.
