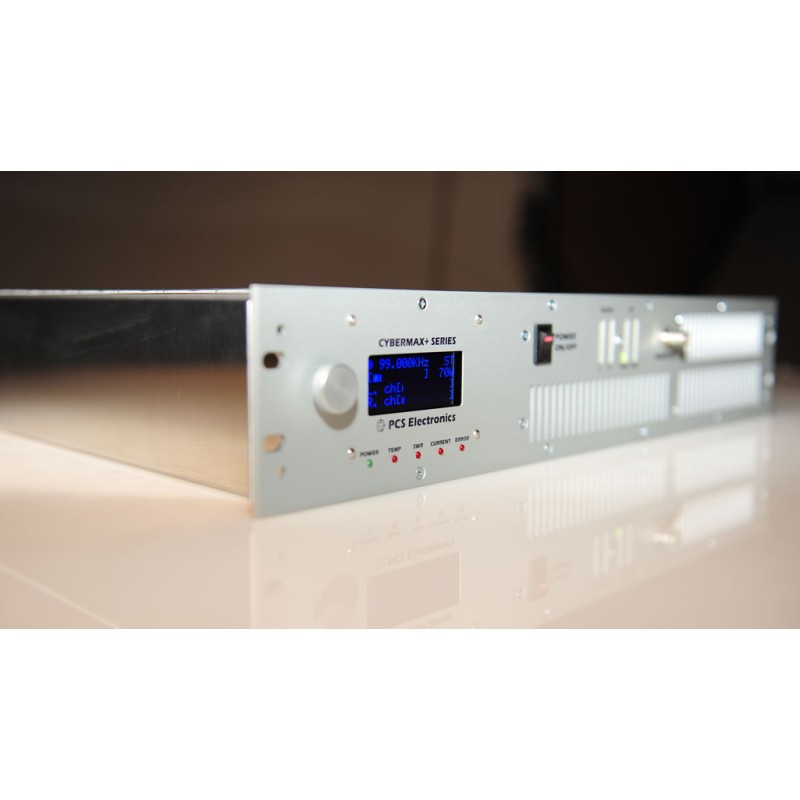

CYBERMAXFM 500W FM zender met DSP and RDS

Name: CYBERMAXFM 500W FM zender met DSP and RDS
Brand: DMR-Electronics
SKU: SE-500W
Price: 2413.94 EUR
Availability: InStock

CYBERMAXFM+ SE V3 600W FM zender met DSP and RDS - FM Zenders

Bekijk groter

€ 2.413,94

Model

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 96,56
4	4%	Tot € 386,23
6	6%	Tot € 869,02
8	8%	Tot € 1.544,92
10	10%	Tot € 2.413,94

Aantal

Levertijd tot 3 weken

Merk: DMR-Electronics

Model:

Staat: Nieuw

Categorie: FM Zenders

SE600 CYBERMAXFM+ SE V3 500W FM zender met DSP and RDS. The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters

Productpagina Afdrukken

Accessoires

Productinformatie

Product discription:

SE500 The new SE V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE V3 models come with large 4x16 LCD display and VU meter! SE lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.

Technical facts:

RF SECTION
- Output power: 500W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ - 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ 14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to 45°C
- External dimensions 200W/400W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (200-400), 8Kg (500W), 9Kg (800W)
- Volumetric weight up to 20Kg

Note: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDS

Model name	DSP processor	RDS processor	XLR inputs	Full unit name
SE V3 MPX	No	No	No, just BNC for MPX	CyberMaxFM SE V3 MPX
SE V3 STEREO RDS	Yes	Yes	Yes	CyberMaxFM SE V3 STEREO DSP RDS
