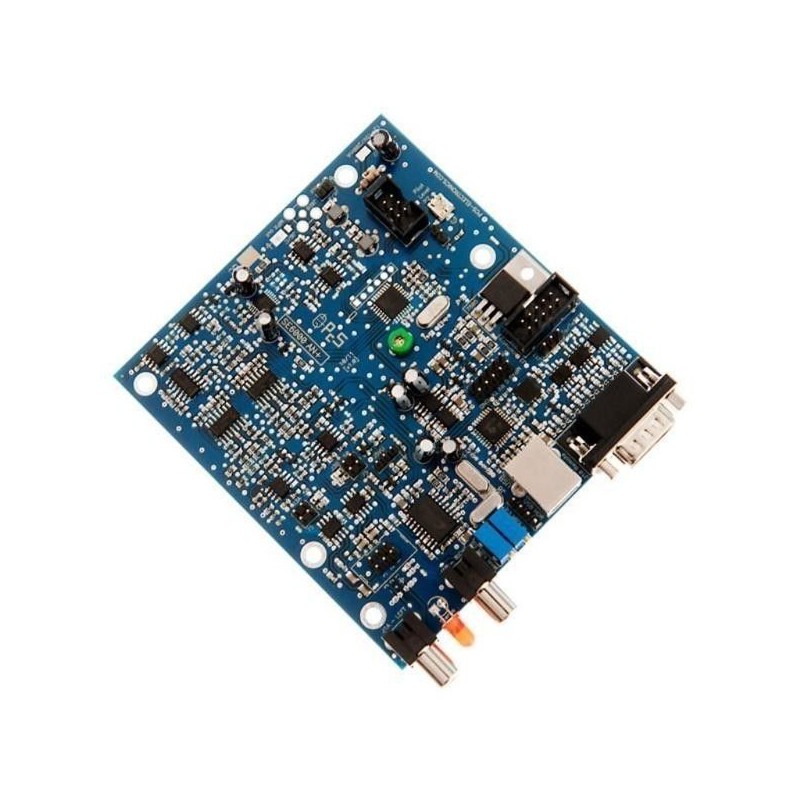

Reduced price! SE 6000 FM stereo encoder Analog (voor inbouw FM Zender) View larger

SE 6000 FM stereo encoder Analoge

SE6000-st-AN

New

Stereo encoder series with record-breaking 114x oversampling

More details


✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

No reward points for this product because there's already a discount.


EUR 134,99 tax incl.

-10%

EUR 149,99

Add to wishlist

Volume discounts

Quantity Price You Save
5 EUR 129,59 Up to EUR 27,00
10 EUR 122,84 Up to EUR 121,49

Accessories

More info

Stereo encoder series with record-breaking 114x oversampling


Product Discription:
SE6000 series stereo encoders feature a number of big enhancements and raise the bar considerably for stereo separation and audio excellence. The amazing sonic purity and clarity are sure to impress you. The new MPX multiplexer circuit is 114x oversampled and gives better stereo separation than anything else in its price range and beyond. Additional digital audio input completely eliminates any ground-loop problems. Lets not forget the new telemetry output (interfaces to MAX PRO 5000 FM exciter, if you choose to use it - its optional). The new SE6000 series stereo encoders comes in a new bigger form factor that differs from the previous SE2000, 3000, 4000 and 5000 models. There are two models in the SE6000 series, the so far listed enhancements are common for both versions. You can read about the differences between the two models below:

Model DSP+
- Stereo encoder with DSP audio processor
- DSP technology with multi-band limiter and multi-band compressor
- Extremely sharp low pass filters with deep 19KHz notch
- Works with or without LCD control module, LCD gives you a number of settings!
- Can be connected to our MAX PRO 5000 series FM exciters and controlled from its LCD module.
- Precision LC filtered MPX output signal

Model AN+
- Analog stereo encoder with very sharp solid-state LC analog filters
- Single-band limiter
- Deep 19KHz notch
- Precision LC filtered MPX output signal
- LCD not needed (there is nothing to control, no DSP processor available on board)






Technical Facts:
  • Audio Response: 10Hz-15KHz, DSP or LC filtered (as per CCIR standards)
  • DSP: 24-bit Digital Signal Processor, Analog: LC filters
  • 19KHz notch filter, >-70 dB typ
  • Precise pre-emphasis, 50uS, 75uS or none
  • Audio Input Impedance: 10Kohm, balanced or unbalanced
  • Audio Input Level: 0 dB
  • Distortion: <0.1%
  • S/N ratio: >90 dB
  • Separation: >75 dB typ. (more than any radio receiver you can buy on the market)
  • Pilot Frequency: 19 KHz, 114x oversampled MPX
  • Output Impedance: 75 Ohms
  • Power Requirements: 12-15VDC / 160-200mA
  • PC Board Size: 100x110mm
  • Audio connectors: all RCA jacks are mounted on the board, 3-pin jumpers for XLR balanced inputs, optional MCX or solder pads for MPX output
  • Power connector: solder pads
  • Output level: Ueff 2V
