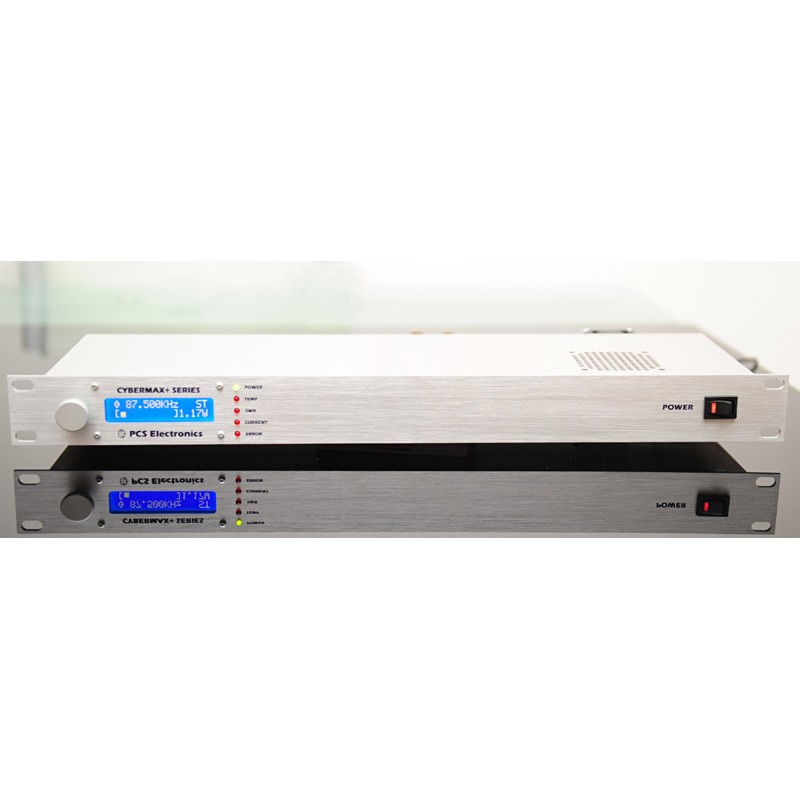

CyberMax-8000+ DSP stereo and RDS encoder with LCD display - new RDS features
CyberMax8000+ DSP/RDS stereo encoder offers excellent stereo separation with 114x oversampling, RDS and DSP
Accessories
-
Suono ESVA 20 FM Transmitter
Suono ESVA 50 FM Transmitter
2 other products in category - FM RDS Encoders
Product informationProduct discription:
CyberMax-8000+ DSP stereo encoder offers excellent stereo separation with 114x oversampling, RDS and DSP. Based on our latest SE8000 DSP+ with built-in compressor, limiter, balanced inputs, sharp 19KHz stereo carrier notch filter, pre-emphasis, LC input filters and ESD protected inputs which all help to bring out the best sound. Perfect for a demanding, but cost-conscious broadcaster. DSP filters and others all make this encoder a real bargain. This is your perfect gateway into the world of excellent stereo separation and sound!
Technical facts:
- Audio Response: 10Hz-15KHz, DSP or LC filtered (as per CCIR standards)
- DSP: 24-bit Digital Signal Processor, Analog: LC filters
- 19KHz notch filter, >-60 dB typ
- Precise pre-emphasis, 50uS, 75uS or none
- Audio Input Impedance: 10Kohm, balanced or unbalanced
- Audio Input Level: 0 dB
- Distortion: <0.1%
- S/N ratio: >90 dB
- Separation: >60 dB typ. (much more than typical radio receivers can resolve)
- Pilot Frequency: 19 KHz, 114x oversampled MPX
- Output Impedance: 75 Ohms
- Power Requirements: 12-15VDC / 200mA
- PC Board Size: 100x120mm

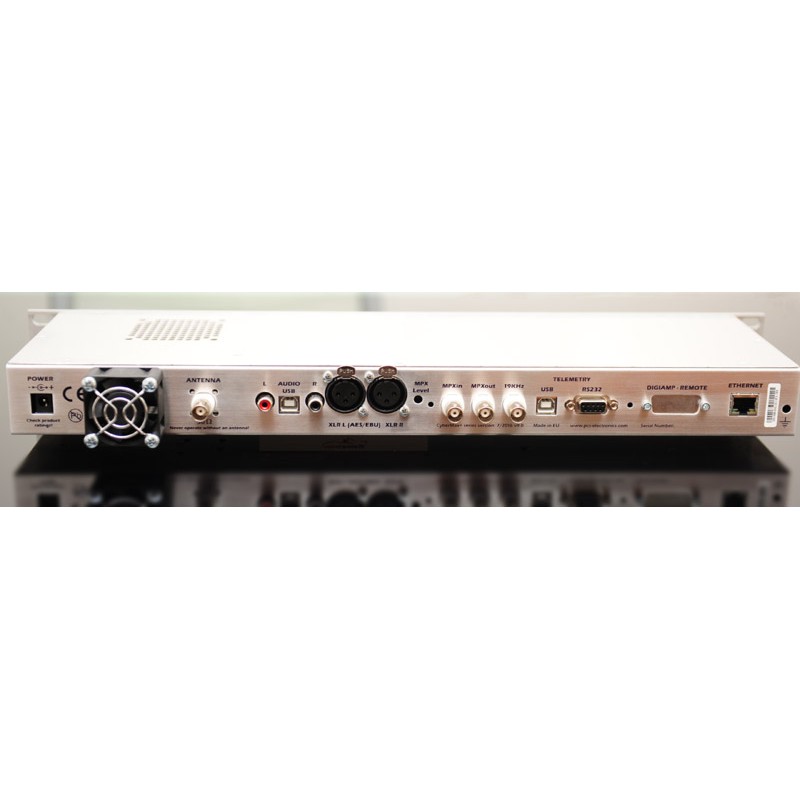

- Audio connectors: all RCA jacks are mounted on the board, 3-pin jumpers for XLR balanced inputs, optional MCX or solder pads for MPX output
- Power connector: solder pads
- Output level: Ueff 1-4V adjustable with trimmer - RDS encoder will work independently from the PC (memory stays unchanged for at least 45 years after power-off, RTC 10-14 days)
