Product discription:

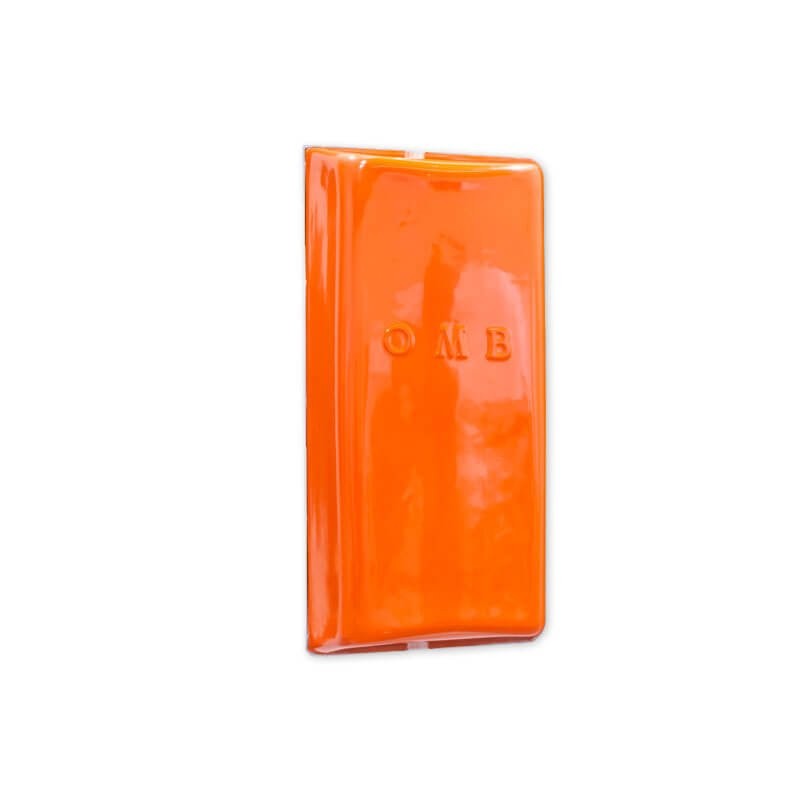

OMB PD 2000 is a broadband UHF panel Antenna
The PD 2000 is a broadband UHF panel that works in Band IV and V (no adjustment is necessary). It can be used as individual unit (up to 2kW) or some units can be grouped in order to obtain a more powerful antenna system. In this case, a power divider is required, and all the interconnection coaxial cables must have the same length in order to obtain in-phase contributions.
The PD 2000 is designed to transmit many carriers and High-Definition TV services. It is made up of 2 double dipoles and a reflector made of stainless steel, and all the components are protected with a radome made of polyester and fiberglass. It has horizontal polarization and DC-ground lightning protection. It is a low-maintenance panel really easy to install

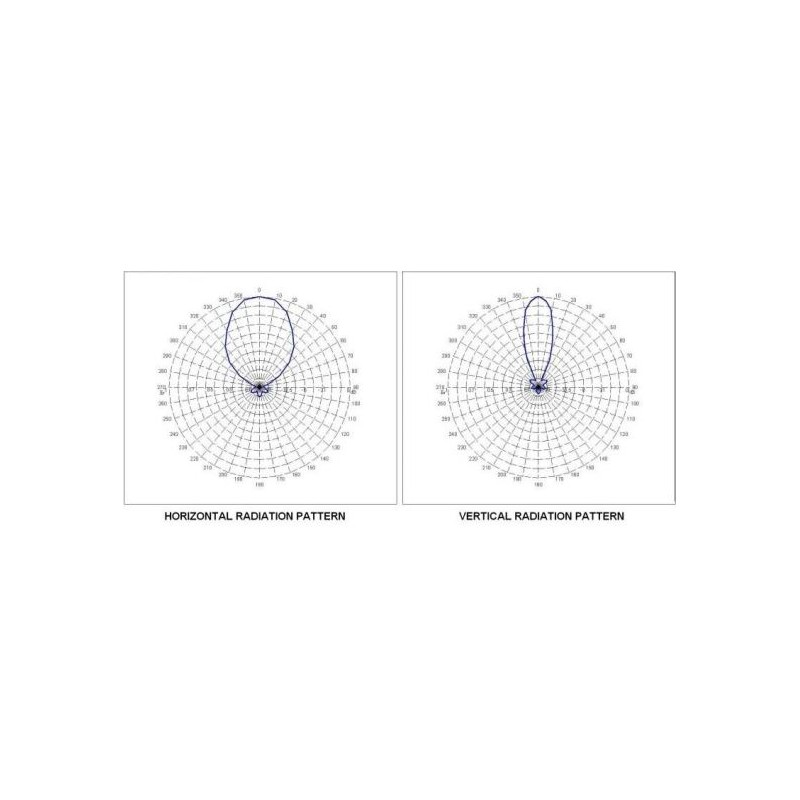

Technical facts:
- FREQUENCY RANGE470 ~ 890MHz
- IMPEDANCE50Ω
- MAXIMUM POWER2000W
- GAIN13dBi
- POLARIZATIONHorizontal
- INPUR CONNECTORDIN 7/16'' Female
- WEIGHT34.91lbs (15.87Kg)
- MOUNTING1 ~ 3'' tubes
- MATERIALStainless steel reflector and radome made of polyester and fiberglass.
- TYPICAL VSWR1.10 : 1 (< -26dB return loss)
- DIMENSIONS96,52 x 48,26 x 20,32 cm
Configurations:
|
MODEL
|
Nr ANTENNAS
|
GAIN (dBi)
|
MAX POWER (W)
|
CONNECTOR
|
|
PD 2000
|
1
|
13
|
2000
|
DIN 7/16'' Female
|
|
PD 2000-2
|
2
|
15.9
|
2000
|
DIN 7/16'' Female
|
|
PD 2000-3
|
3
|
18.7
|
2000
|
DIN 7/16'' Female
|
|
PD 2000-4
|
4
|
20.5
|
2000
|
DIN 7/16'' Female
|
Options:
- PD 2000-2 : 2x PD 2000, POWER DIVIDER DT-2 WITH N TYPE CONNECTORS, 2 JUMPERS 1/2" HELIAX CABLE WITH N TYPE, DIN 7/16" CONNECTORS
- PD 2000-3 : 3x PD 2000, POWER DIVIDER DT-3 WITH N TYPE CONNECTORS, 3 JUMPERS 1/2" HELIAX CABLE WITH N TYPE, DIN 7/16" CONNECTORS
- PD 2000-4 : 4x PD 2000, POWER DIVIDER DT-4 WITH 7/16" INPUT 4 N TYPE OUTPUTS, 4 JUMPERS 1/2" HELIAX CABLE WITH N TYPE AND DIN 7/16" CONNECTORS
