    EM 50 is an F.M. Transmitter (87,5 ~108 MHz) externally synthesized with a step of 10KHz, microprocessor controlled and with LCD display for the visualization of transmission parameters: Forward and Reflected Power, Deviation level, etc. It includes fold back protection, Mono/Stereo audio (MPX) inputs, 3 SCA inputs and telemetry output.

    Bij het kopen van dit product krijgt u in totaal 119 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 119 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 23,80.


    € 2.019,99

    Stereo encoder

    • Ingebouwd

    • Niet meegeleverd

    Korting op je Bestelling Korting op je Bestelling
    Gratis verzenden Gratis verzenden tot 10 KG
    Volume korting Volume korting
    Bonus systeem Bonus systeem
    Veilig betalen Veilig betalen
    Niet goed geld terug Niet goed geld terug
    Trustpilot Trustpilot

    Volumekorting

    Aantal Korting U bespaart
    2 2% Tot € 80,80
    4 4% Tot € 323,20
    6 6% Tot € 727,20
    8 8% Tot € 1.292,79
    10 10% Tot € 2.019,99

    Productinformatie OMB Professional EM 50W FM Zender

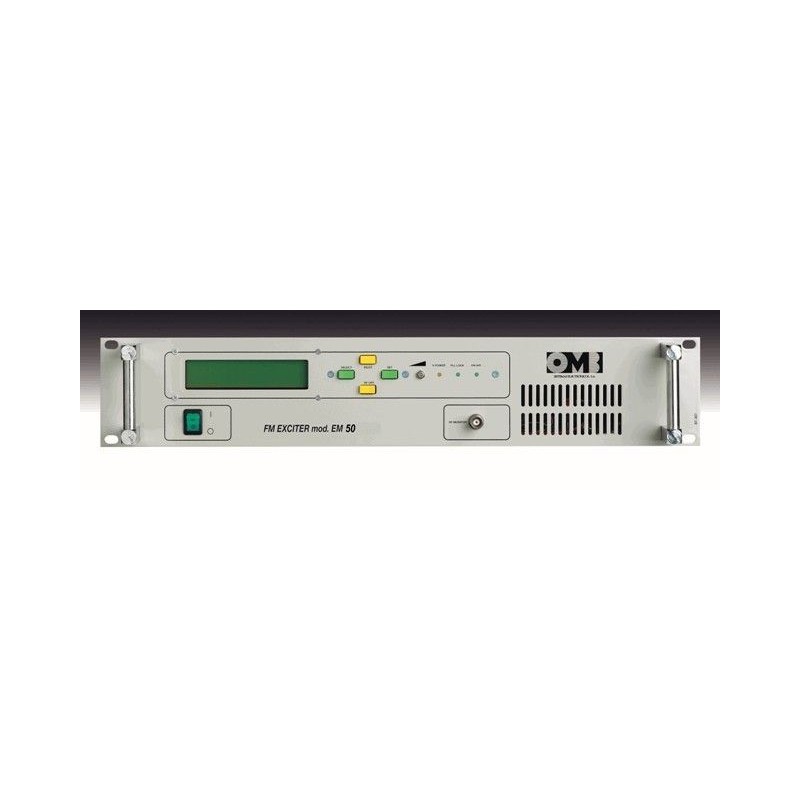

    OMB EM-50



    EM 50 is an F.M. Transmitter (87,5 ~108 MHz) externally synthesized with a step of 10KHz, microprocessor controlled and with LCD display for the visualization of transmission parameters: Forward and Reflected Power, Deviation level, etc. It includes fold back protection, Mono/Stereo audio (MPX) inputs, 3 SCA inputs and telemetry output.

    User can adjust output power from 0 to 50W.

    The EM 50 can be supplied with an internal digital stereo generator board (60dB separation).


















    technical features



    operating frequency range

    87.5 ~ 108.0MHz

    modulation

    FM CLASS F3E, F8E (? 75KHz maximum deviation)

    VCO tuning

    25MHz

    frequency stability

    ? 2.0ppm

    frequency tuning step

    10KHz

    RF power output

     0 ~ 50Wrms adjustable

    spurious

    < - 80dBc

    harmonics

    < - 70dBc

    STEREO CHANNEL SEPARATION

    > 55dB / 1KHz

    T.H.D. distortion

    < 0.1 % / 1KHz (0.08% typical)

    BaseBAND FREQUENCY RESPONSE

    0.15dB  from 30Hz  to 60KHz

    unweighted S/N ratio

    > 78dB from 30Hz to 15KHz (Mono input, Pre-emphasis of 50ms)

    asynchronous AM S/N ratio

    > 65dB Ref. 100 % AM / 400Hz

    synchronous AM S/N ratio

    > 60dB with FM / 75KHz / 400Hz

    Pre-EMphasis

    50 or 75ms internally selectable

    RF output impedance

    50W asymmetrical. N Female Connector

    MPX input connector (main program)

    BNC Female

    stereo input impedance (main program)

    High-Z 2KW

    SCA input connectors

    BNC Female

    SCA input impedance

    High-Z 2KW

    Remote control interface

    Serial RS232

    cooling

    Forced air (Axial blower)

    operating temperature range

    - 10? ~ + 45?C

    maximum relative humidity

    90% (non condensed)

    AC power supply

    110 ~  240VAC, 47/63Hz

    Dimensions

    2RU (19" rack), 410mm depth

    weight

    11.023lbs (5Kg
