    Product information SmartGen Mini UECP Compatible RDS-RBDS Encoder

    Product discription:


    Compact, Robust, Reliable and Smart - This is just a small part of all the advantages of our Second Generation RDS/RBDS Encoder SmartGen Mini. The interactive function RT+ for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen Mini is fully digitally designed for 24/7/365 operation. The SmartGen Mini is the most cost-effective solution for sending of TMC and EWS Services. It supports both European CENELEC and United States NRSC standards and is fully compatible with the latest UECP EBU SPB490 Version 7.05

    SmartGen Mini gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streamings for digital radio and Webcasting. The SmartGen Mini encoder provides a full loop-through interface for connection to your existing broadcast chain. The SmartGen Mini can 'parse' scrolling text, automatically breaking the phrases into word groups.

    The SmartGen Mini has all the RDS features that you could possibly need and that at an incredible price.

    PROGRAMMING SOFTWARE:

    Based on our more than 15 years of experience in the RDS field, SmartGen RDS/RBDS Encoders Manager was developed as a dedicated software for full management of our high end RDS Encoders range as regards to the latest updates of the UECP EBU SPB490 Version 7.05

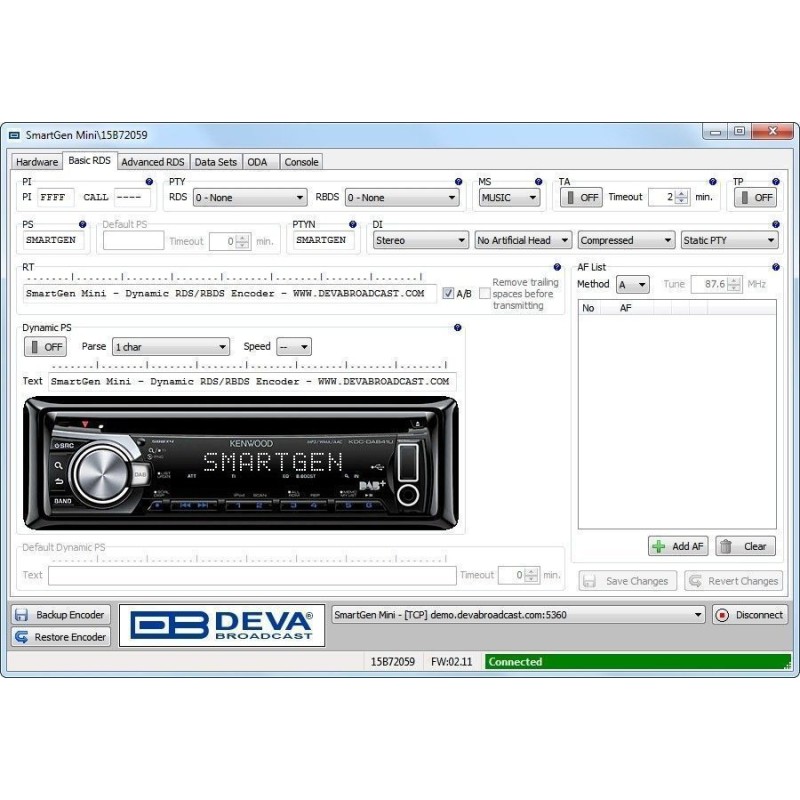

    It supports a wide range of interfaces as RS-232, USB and LAN. The SmartGen Manager has “Basic RDS” and “Advanced RDS” programming interfaces. Using its “Basic” Mode, all main RDS parameters can be easily programmed into the non-volatile memory of the RDS Encoder. The interactive simulator shows the outgoing scrolling messages exactly as they are displayed to the listeners.

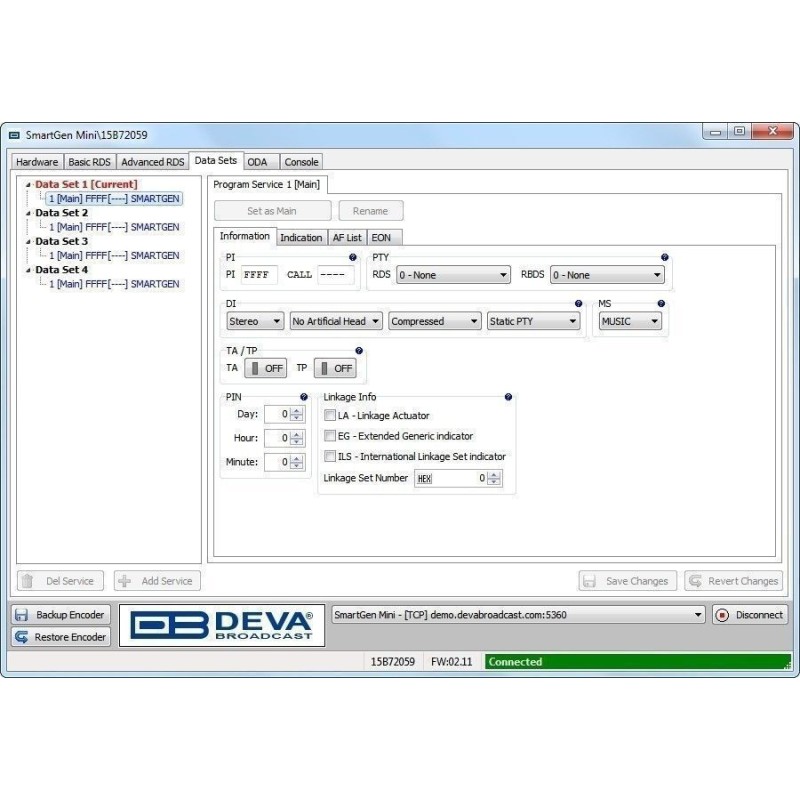

    The SmartGen RDS/RBDS Encoders Manager has all the functionalities required to drive any parameter by the latest version of the UECP EBU SPB490 Version 7.05. Its visual and self-guided user interface makes the UECP advanced programming of the SmartGen Encoders easy and user-friendly.

    • Supports European CENELEC and United States NRSC standards
    • Attractive price and very good price-performance ratio
    • Supports RT+ for songs and content tagging
    • PS & Radio Text Scrolling Options
    • Supports TMC (Traffic Message Channel)
    • Compatible with EWS (Emergency Warning System)
    • Embedded WEB server for interactive supervision
    • Fully Digital Synthesis of RDS signal
    • Fully compatible with UECP EBU SPB490 Version 7.05
    • MPX Loopthrough & Sidechain Modes
    • Internal or external Pilot / MPX synchronisation
    • Very Intuitive UECP Configuration Software
    • Remote RDS viewer to visualize broadcasted data
    • Proved and reliable hardware for 24/7/365 operating
    • Easy Installation and Setup
    • LAN & USB Programming Interfaces
    • Remote configuration via ASCII or UECP through LAN or USB
    • Interfaces with all popular radio automation systems
    • Built-in dedicated 19kHz source for internal sync
    • Built-in failsafe bypass relay
    • Includes the TA function for traffic message priority override
    • Works with any FM exciter and stereo generator
    • SNTP for automatic synchronization of the built-in clock
    • Internal data diagnostics and transmission safeguards
    • Real time clock Schedules for Scrolling Text and text lists
    • Compact and Robust Aluminum Case for high RF immunity



    Technical facts:




    Power Supply External, 12V / 0.5A
    Pilot/MPX Input Yes
    MPX/RDS Output 0 to 4095 mV
    Inputs/Outputs No
    Communication Port USB, LAN
    Synchronization External (Pilot or MPX) / Internal / Auto
    Synchronization Monitoring Yes
    RDS Level adjustment Digitally controlled
    Phase adjustment Yes, 0 ÷ 359.9°
    Separate outputs for RDS+MPX and for RDS only No
    Command to activate the RDS SCA Yes
    Side Chain Mode, Loop through mode, Bypass feature Yes
    RDS Subcarrier 100% Digitally Generated Shape / Bypass: 0 dB
    Pilot synchronization Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz
    EN50067 compliant Yes
    Accurate Clock Time (CT) Sync with Internet Connection Yes
    Remote TA actuation for Traffic Announcements Yes
    GPS module for automatic synchronization of the built-in clock No
    Fully independent RDS decoder for self-monitoring purposes No
    Firmware can be upgraded in the field Yes
    Front-panel LCD displays all programmed data No
    Data may be entered on-site with Front-panel Buttons No
    Operating Temperature 0°C ÷ 55°C
    RDS Features
    Group supported All
    Group Sequence Configurable
    PS 4 DSN x 4 PSN
    PI 4 DSN x 4 PSN
    PTY RDS/RBDS
    AF Method A 25
    AF Method B up to 50
    RT Yes, 5 messages
    RT rate adjustment Group Sequence
    RT+ for songs and content tagging Yes
    TP Yes
    TA Control Command, Software
    PTYN Yes
    EON 4 PSN
    CT Yes
    TMC, EWS, IH, TDC Yes
    Free Format Groups (FFG) Yes
    Open Data Application (ODA) Yes
    64-character Dynamic PS shown on all RDS/RBDS Radios Yes
    Auto "parses" long messages for best text display Yes
    Scrolling by character from 1 up to 8
    Scrolling by word, Auto centering, Truncate long words Yes
    Communication
    Communication Interfaces USB, LAN
    Connection with Automation Software Yes
    Network Connectivity 2 TCP ports; 2 UDP ports
    Scheduler Yes
    Configuration Embeded Web Server, SmartGen Manager
    Password Protection Yes
    ASCII Protocol Yes
    UDP, TCP, HTTP, SNTP Yes
    Alert notifications on user-defined events via SNMP traps or E-mails No
    Embedded SNMP agent permitting active management tasks No
    Custom HTML formatted E-mail templates with dynamic variables No
    Supported Network Protocols: HTTP, SNTP, UDP, TCP, UPnP
    UECP Protocol Fully compliant with EBU SPB490 Ver.7.05
    PI <=> CALL Calculator Yes
    Remote Display Yes
    Supplied with Intuitive Software Yes
    Comes with 2-years Limited Warranty Yes
    Size and Weight
    Dimensions (W;H;D) 120 x 31 x 103 mm
    Shipping Weight 230 x 54 x 172 mm / 0.580 kg
    HS Code 8527212000
