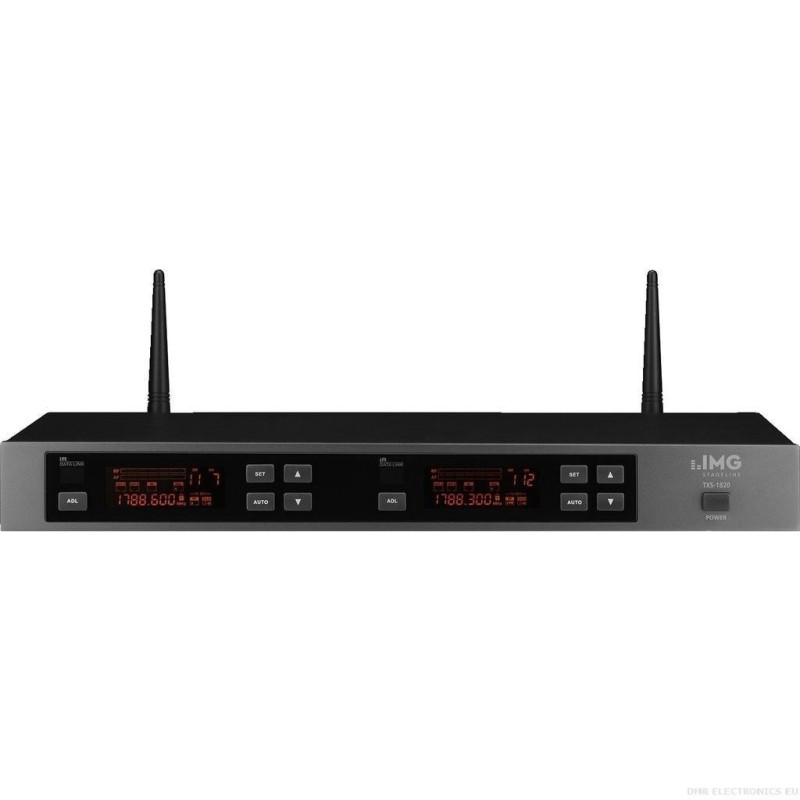

2-channel multifrequency receiver unit, 1.8 GHz TXS-1820 View larger

2-channel multifrequency receiver unit, 1.8 GHz TXS-1820

TXS-1820

New

2-channel multifrequency receiver unit, 1.8 GHz, with UHF PLL technology.

  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each
  • ADL function for transmitting selected parameters to the pocket transmitter TXS-1800HSE or hand-held microphone TXS-1800HT via infrared signal
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Autolock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, channel/group
  • XLR output (bal.) for each channel
  • XLR output (bal.) and 6.3 mm output for mixed signal
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets

More details


✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

By buying this product you can collect up to 24 loyalty points. Your cart will total 24 loyalty points that can be converted into a voucher of EUR 4,80.


EUR 489,99 tax incl.

Add to wishlist

Volume discounts

Quantity Price You Save
5 EUR 470,39 Up to EUR 98,00
10 EUR 445,89 Up to EUR 440,99

More info

Product discription:


2-channel multifrequency receiver unit, 1.8 GHz, with UHF PLL technology.

  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each
  • ADL function for transmitting selected parameters to the pocket transmitter TXS-1800HSE or hand-held microphone TXS-1800HT via infrared signal
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Autolock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, channel/group
  • XLR output (bal.) for each channel
  • XLR output (bal.) and 6.3 mm output for mixed signal
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets



Technical facts:


Type multifrequency receiver
Carrier frequency range 1,785-1,800 MHz
Audio frequency range 60-16,000 Hz
Channels 2
THD < 0.8%
Dynamic range > 95 dB
RF S/N ratio -
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Transmitting power -
Operating range -
Power supply transmitter -
Dimensions transmitter -
Width transmitter -
Height transmitter -
Depth transmitter -
Weight transmitter -
Connections transmitter -
Audio signal receiver 50 mV/1 kΩ (jack)
50 mV/150 Ω (XLR, bal.)
Power supply receiver via suppl. PSU
Dimensions receiver 410 x 47 x 175 mm
Width receiver 410 mm
Height receiver 47 mm
Depth receiver 175 mm
Weight receiver 2,100 g
Connections receiver 2 x XLR,
1 x XLR (mix),
1 x 6.3 jack (mix)

Reviews

Write a review

2-channel multifrequency receiver unit, 1.8 GHz TXS-1820

2-channel multifrequency receiver unit, 1.8 GHz TXS-1820

2-channel multifrequency receiver unit, 1.8 GHz, with UHF PLL technology.

  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each
  • ADL function for transmitting selected parameters to the pocket transmitter TXS-1800HSE or hand-held microphone TXS-1800HT via infrared signal
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Autolock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, channel/group
  • XLR output (bal.) for each channel
  • XLR output (bal.) and 6.3 mm output for mixed signal
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets
