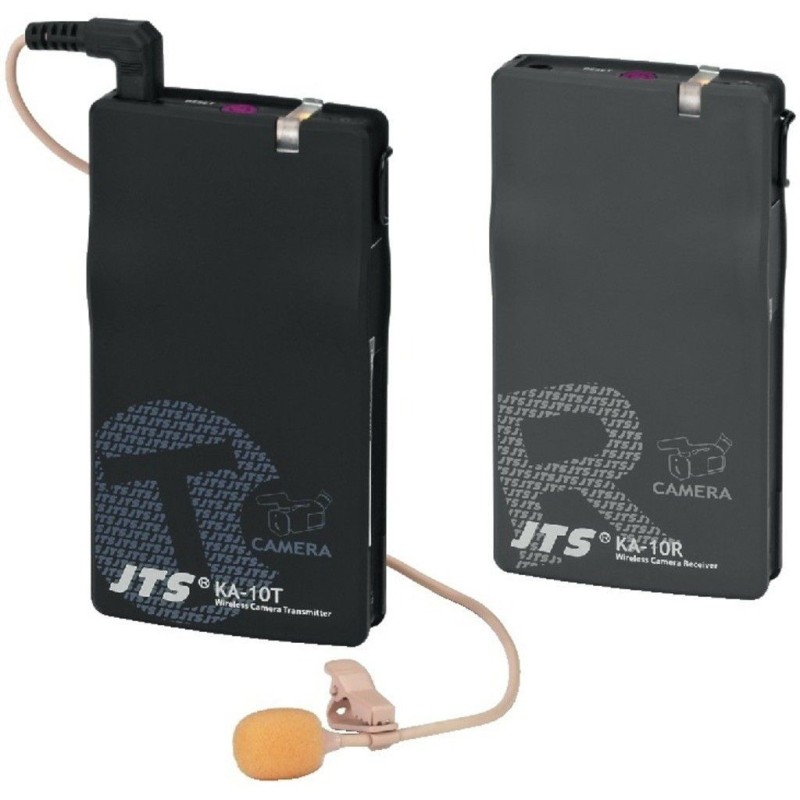

JTS KA-10 16-channel PLL audio transmission system for Cam

JTS KA-10 16-channel PLL Audio Transmission System For Cam View larger

: JTS | Monacor

: KA-10 / 1pack

: New

: Microphones Wireless Sets

: JTS KA-10 16-channel PLL audio transmission system for Cam

JTS Model KA-10 / 1pack

Wireless 16-channel PLL audio transmission system for cameras

  • Consisting of a portable audio transmitter and receiver
  • Frequency range: 863-865 MHz
  • Transmitter and receiver with rechargeable lithium-ion batteries for reducing the weight and to ensure long operating times
  • Transmitter can also be used for transmitting line signals (adjustment via recessed gain control)

By buying this product you can collect up to 27 loyalty points. Your cart will total 27 loyalty points that can be converted into a voucher of € 5,40.


€ 549,99

Quantity Discount You Save
2 2% Up to € 22,00
4 4% Up to € 88,00
6 6% Up to € 198,00
8 8% Up to € 351,99
10 10% Up to € 549,99

Product information

Product discription:

  • Consisting of a portable audio transmitter and receiver
  • Frequency range: 863-865 MHz
  • Transmitter and receiver with rechargeable lithium-ion batteries for reducing the weight and to ensure long operating times
  • Transmitter can also be used for transmitting line signals (adjustment via recessed gain control)
  • Receiver with 3-step PAD switch (0dB/-10 dB/-20 dB) for perfect level matching to the audio input of the camera
  • Transmitter and receiver are fitted with a robust metal fixing clip
  • Operating time: approx. 12 hours
  • Supplied with lavalier microphone in skin design with windshield and tie clip, attachment clip for camera mounting, trim key, dual charging slot with plug-in switch-mode PSU, connection cable with 3.5 mm plug to 3.5 mm plug, connection cable with 3.5 mm plug to XLR plug


Licence-free in the EU.
Supplied w/o camera



Technical facts:

Type 16-channel PLL audio transmission system
Carrier frequency range 863-865 MHz
Audio frequency range 40-18,000 Hz
Channels
THD < 1 %
Dynamic range -
RF S/N ratio -
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Transmitting power < 10 mW
Operating range approx. 60 m
Power supply transmitter 3.7 V rech. lithium-ion battery
Dimensions transmitter 55x100x18 mm
Width transmitter 55 mm
Height transmitter 100 mm
Depth transmitter 18 mm
Weight transmitter 80 g
Connections transmitter -
Audio signal receiver 300 mV/7 kΩ (jack)
Power supply receiver 3.7 V rech. lithium-ion battery
Dimensions receiver 55x100x18 mm
Width receiver 55 mm
Height receiver 100 mm
Depth receiver 18 mm
Weight receiver 82 g
Connections receiver 1 x 3.5 mm jack (transmitter)
1 x 3.5 mm jack (receiver)
