2-channel multifrequency receiver unit, TXS-626

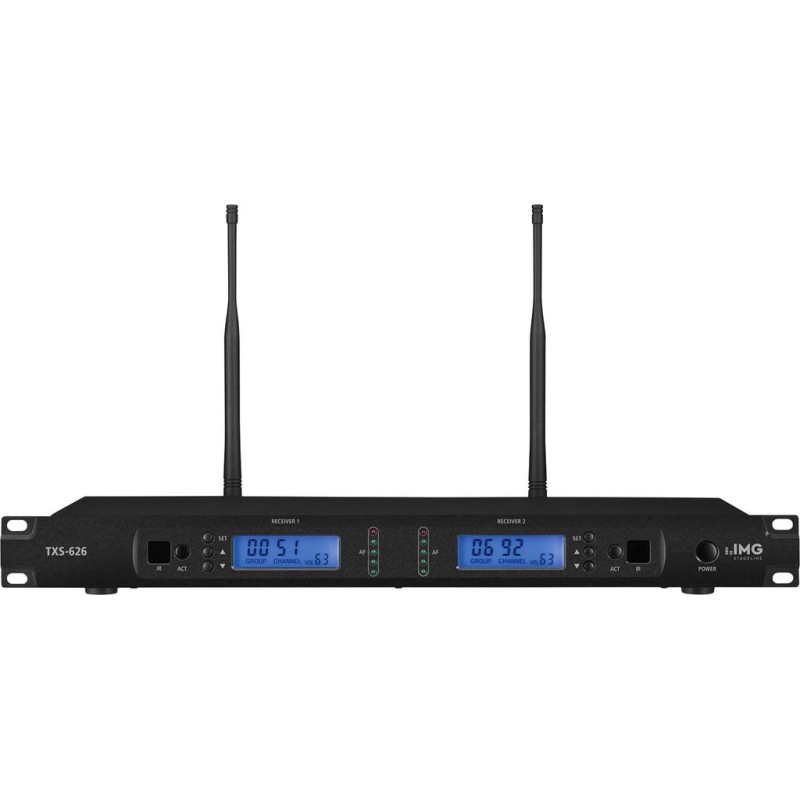

2-channel Multifrequency Receiver Unit, TXS-626 View larger

: IMG-Stage Line

: TXS-626

: New

: Microphones Wireless Sets

: 2-channel multifrequency receiver unit, TXS-626

2-channel multifrequency receiver unit, with UHF PLL technology. Model TXS-626

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 frequencies each)
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal

By buying this product you can collect up to 16 loyalty points. Your cart will total 16 loyalty points that can be converted into a voucher of € 3,20.


€ 339,99

Quantity Discount You Save
2 2% Up to € 13,60
4 4% Up to € 54,40
6 6% Up to € 122,40
8 8% Up to € 217,59
10 10% Up to € 339,99

Product information

2-channel multifrequency receiver unit, with UHF PLL technology. Model TXS-626

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 frequencies each)
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal.
  • Autoscan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED level display for indicating audio level
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • Robust metal housing
  • Supplied with PSU
  • 482 mm (19") rack installation, 1 RS



Description receiver unit
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 2
THD < 0.5%
Dynamic range 100 dB
RF S/N ratio 105 dB
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter -
Transmitting power -
Operating range -
Power supply transmitter -
Width transmitter -
Height transmitter -
Depth transmitter -
Weight transmitter -
Connections transmitter -
Specifications receiver -
Audio signal receiver 350 mV/600 Ω (jack)

25 mV/600 Ω (XLR, bal.)
Power supply receiver via encl.

plug-in power supply
Width receiver 482 mm
Height receiver 45 mm
Depth receiver 195 mm
Weight receiver 1.8 kg
Connections receiver 2 x XLR, bal.,

1 x 6.3 mm jack, unbal.
