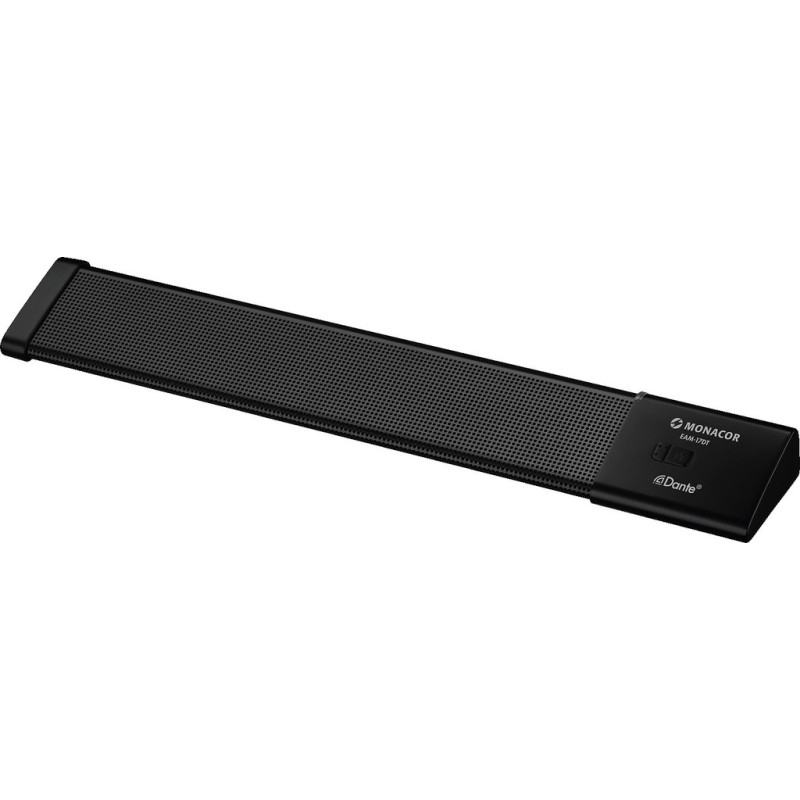

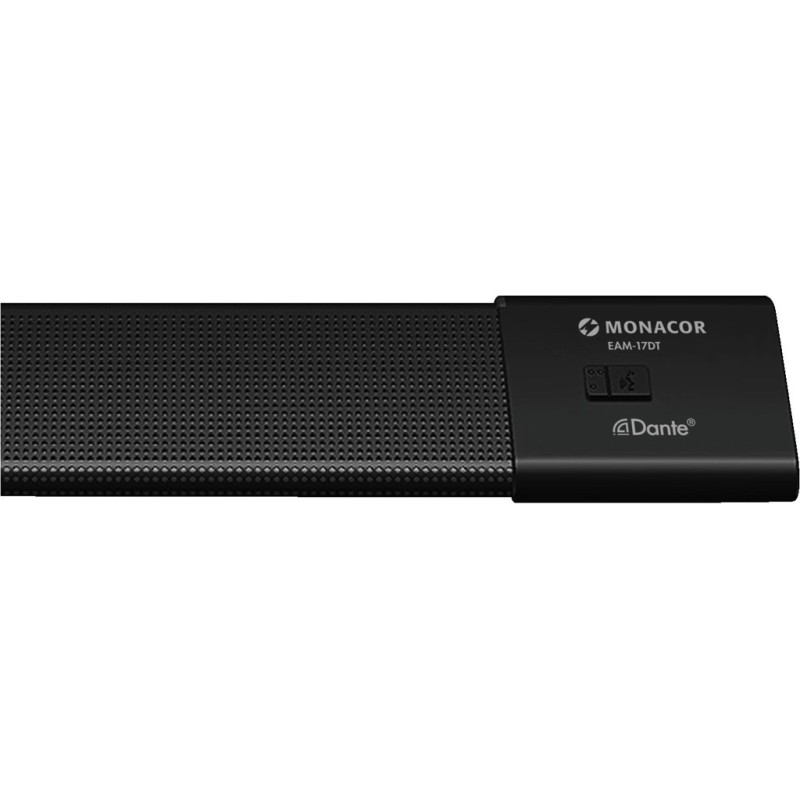

Monacor EAM-17DT PA Desktop Microphone with Integrated Dante

The MONACOR EAM-17DT is a professional PA desktop microphone designed for seamless integration into Dante® networks. Featuring a back-electret system with an array of 17 cartridges, it delivers clear and precise audio with a supercardioid polar pattern for effective background noise rejection.

Equipped with a silent electronic push-button, the microphone offers multiple selectable operating modes, including push-to-mute (PTM), push-to-talk (PTT), ON, and OFF. The RJ45 connection allows direct integration into Dante® systems, enabling high-quality audio transmission over standard Ethernet networks. The device is powered via Power over Ethernet (PoE), eliminating the need for an additional power adapter.

Configuration software is available through the MONACOR ACADEMY, ensuring easy setup and customization. The durable metal/steel housing ensures long-lasting performance in professional environments.

Specifications:

• Type: PA desktop microphone (push-to-talk)
• Transmission Method: Dante® network
• Polar Pattern: Supercardioid
• Microphone System: Back-electret (array with 17 cartridges)
• Frequency Range: 80-20,000 Hz
• Signal-to-Noise Ratio: 65 dB at 1 kHz
• Maximum Sound Pressure Level: 106 dB
• Power Supply: PoE (Power over Ethernet)
• Housing Material: Metal/Steel
• Ambient Temperature Range: 0-40 °C
• Dimensions (L x W x H): 348 x 31 x 60 mm
• Weight: 386 g
• Connection: RJ45 (requires a short body plug)

The EAM-17DT is the ideal solution for professional PA systems, conference rooms, and public address applications requiring Dante® network integration.
