VHF DAB band III 175-225 broadcast antenna HIGH GAIN COLINEAR ALUMINUM ¾ Wave

By buying this product you can collect up to 25 loyalty points. Your cart will total 25 loyalty points that can be converted into a voucher of € 5,00.


€ 454,99

Quantity Discount You Save
2 2% Up to € 18,20
4 4% Up to € 72,80
6 6% Up to € 163,80
8 8% Up to € 291,19
10 10% Up to € 454,99

delivery time 2 - 3 weeks

Product information

Product discription:

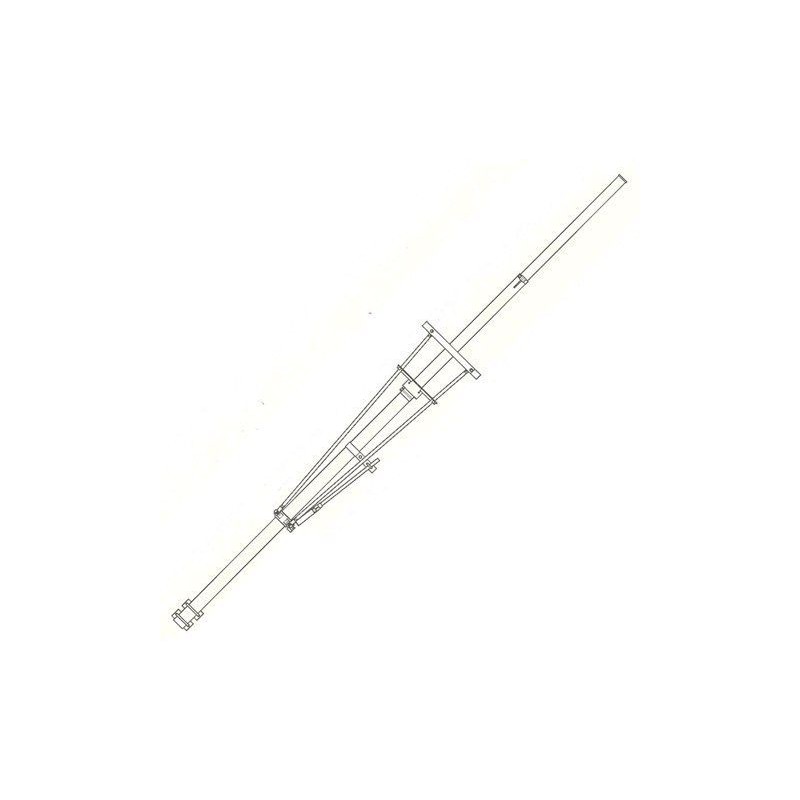

VHF DAB band III 175-225 broadcast antenna HIGH GAIN COLINEAR ALUMINUM ¾ Wave

Available model:

  • 3/4 Wave 1KW N connector



Technical specifications:
- Frequency range: 175-225 MHz
- Impedance: 50 Ohm
- VSWR: 1.0:1 @ Resonance
- Gain: 6.3 dB
- Connector: "N"
- Weight: 3.5 Kg
- Max Power: 1000W
- Polarization: Vertical Omni Directional

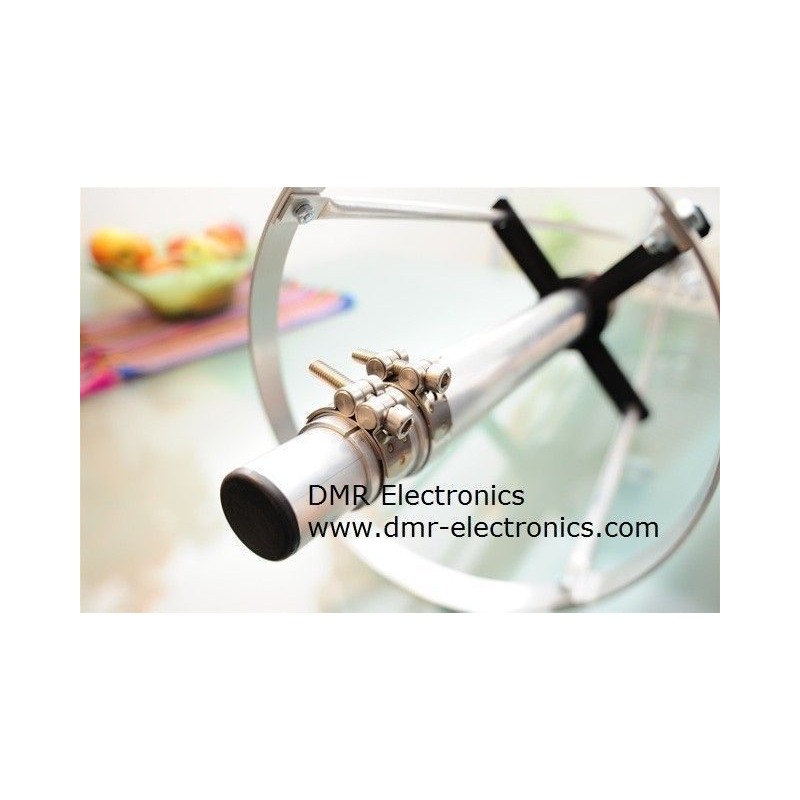

- Feed: Gamma
- Tuning: Pre-Tuned / Whip Adjusting

Electrical Data:
- Type: 7/8 λ coaxial Vertical
- Radiation (H-plane): 360° omni directional
- Polarization: Vertical
- Gain: 6.3 dB
- 8MHz Bandwidth at S.W.R. 2:1:
- S.W.R. at res. freq.: ≤ 1.0:1

Mechanical Data:
- Materials: T6061 Aluminum, Teflon, Stainless Steel, PVC
- Wind load / resistance: 329 N at 250 Km/h / 230 Km/h
- Wind surface: 0.29 m2
- Height (approx.): 11'
- Weight (approx.): 9 - 10 lbs.

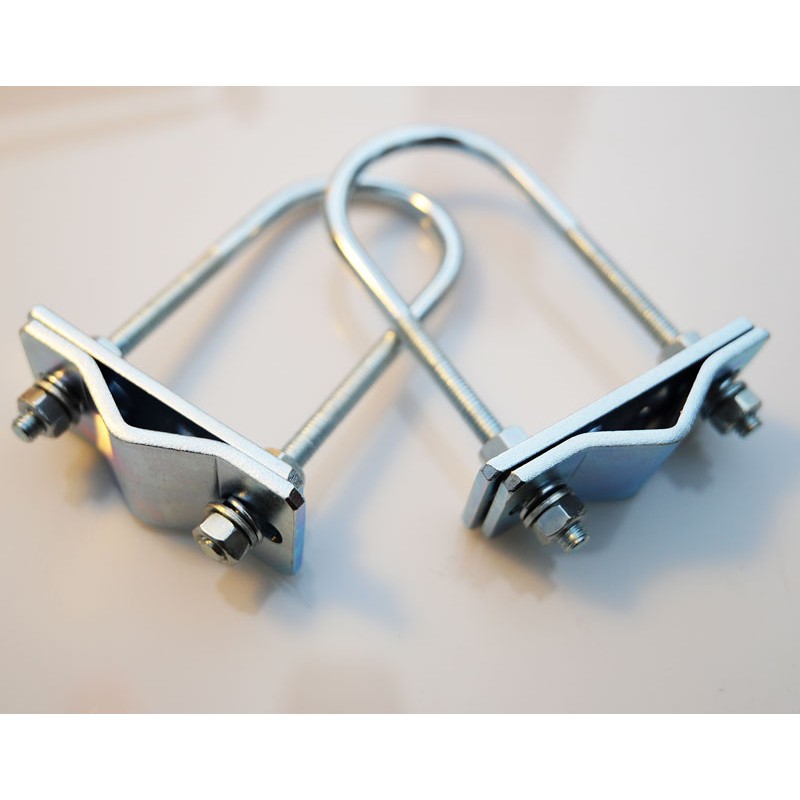

- Mounting mast: 1 to 3"

Option -Tuning:

We can pretune the antenna for you (retuning by length adjustment and gamma match adjustment)
