D&R D&R AIRENCE-USB Main Unit Broadcast Mixer (6-Channel)

D&R AIRENCE Analog Production ON-AIR Broadcast Console - D&R Studio Mixers Consoles

View larger

€ 2.829,99

Optie

Option D&R mixer

Volume discounting

Number	Discount	You save
2	2%	To € 113,20
4	4%	To € 452,80
6	6%	To € 1.018,80
8	8%	To € 1.811,19
10	10%	To € 2.829,99

Number

Brand: D&R

Model:

Stands: New

Categories: D&R Studio Mixers Consoles

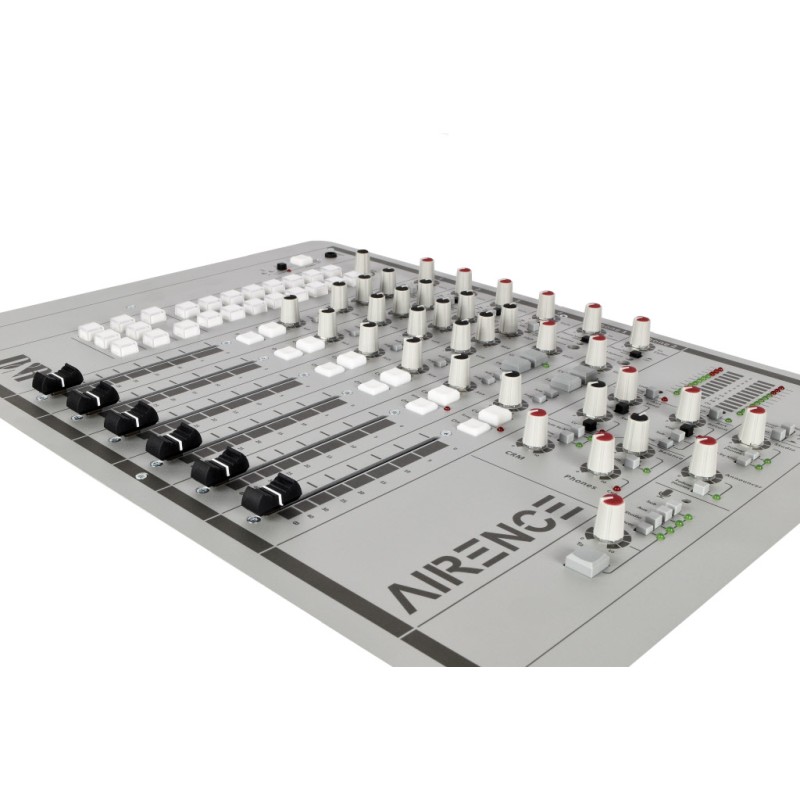

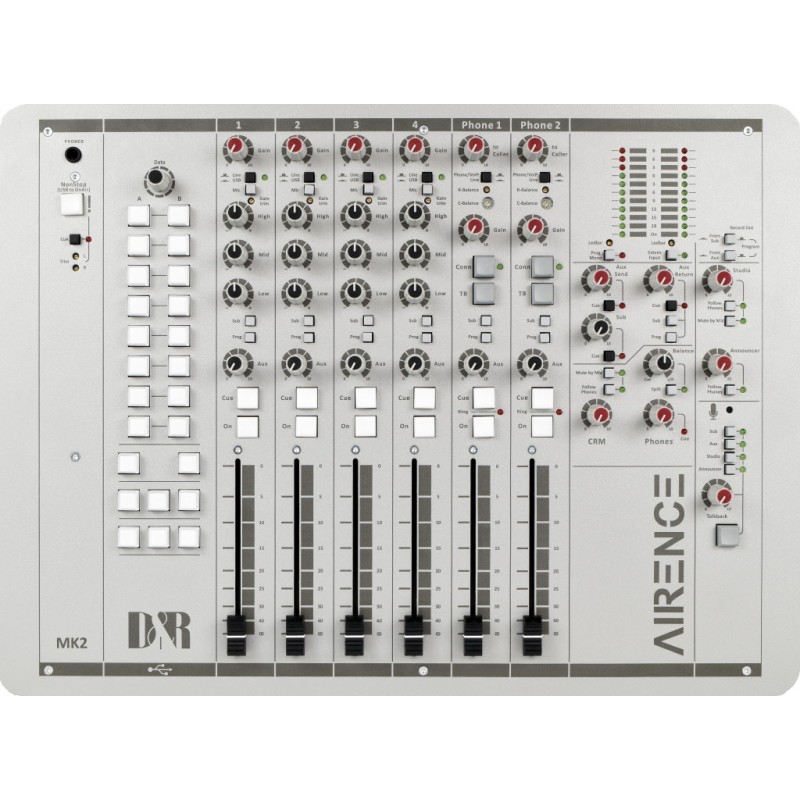

The D&R AIRENCE-USB is an advanced 6-channel on-air and production broadcast console, specifically designed to be the central heart of the modern radio studio. This smart radio mixer combines proven, extremely low-noise analog circuitry with a powerful, integrated USB control section. With 4 independent USB stereo channels and 2 built-in telephone hybrids, this robust 19-inch mixing console is the perfect match for radio stations that make extensive use of play-out software and want to stream directly to the internet.

The console is housed in a heavy-duty RF-shielded chassis that can be seamlessly recessed into studio furniture (drop-through) and is fully modularly expandable for the growing studio.

Product page Print

Accessories

Product information

The reliable workhorse for the self-producing DJ

With the D&R AIRENCE-USB you get a professional, modern split version of a radio production mixer. The console was designed with the demanding radio maker in mind and excels in clarity and ease of use. The main unit has 4 balanced microphone inputs with inserts for external signal processors, 6 stereo line inputs and a 48 V phantom power supply. All microphone channels are also equipped with internal low-cut jumpers to immediately eliminate unwanted low-frequency noise. Thanks to the mechanical start faders and the illuminated ON buttons, you can start tracks from your play-out software at exactly the right time.

Extensive master section designed for radio

The master section of the AIRENCE-USB offers all the essential functions that a professional live broadcast or voice-track session requires. In addition to the smooth 100 mm stereo master faders, aux sends/returns and a powerful headphone output with split listening function (Cue), there is an active mute control. This "Mute Active" function automatically lowers the level in the control room when the DJ microphone is opened to prevent feedback. The sub output allows you to seamlessly perform production work and voice tracking while the main station remains live on-air in non-stop mode. With the large central Talkback switch and the built-in electret microphone you can communicate smoothly with callers or studio guests.

Smart HID software and visual control

The AIRENCE-USB communicates with your PC based on the universal USB HID protocol. This means that the mixer not only sends commands to your software, but you can also use the included software application to create a beautiful, high-resolution PPM meter on an external screen. Without additional hardware, you can immediately see the exact levels of the main program and sub-outputs. In addition, this application displays a professional radio clock that is accurately synchronized with an NTP server via the Internet, so that your broadcast is always exactly on time.

Durable, efficient and redundant

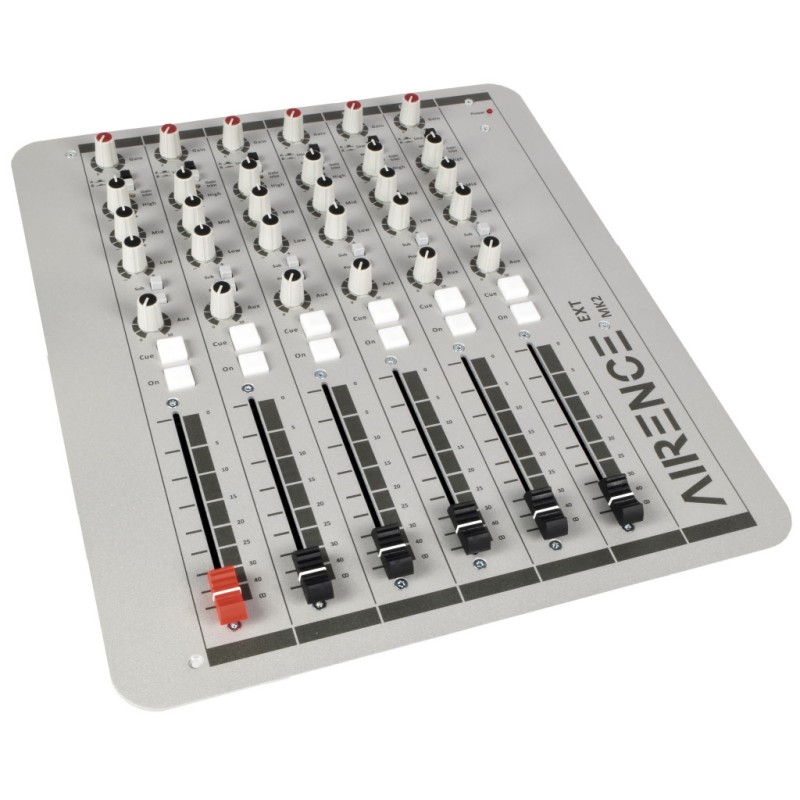

Each AIRENCE-USB unit is individually powered by a modern, digitally switched external power supply. This guarantees high efficiency and minimal power consumption. Because the power supply is external, it is also very easy to connect a second, optional power supply for complete power redundancy. If you need more inputs in the future, you can simply add the AIRENCE-EXT expansion unit. The Cue bus connects directly, so that your newly started mixing console will never become outdated.

4. Technical Specifications

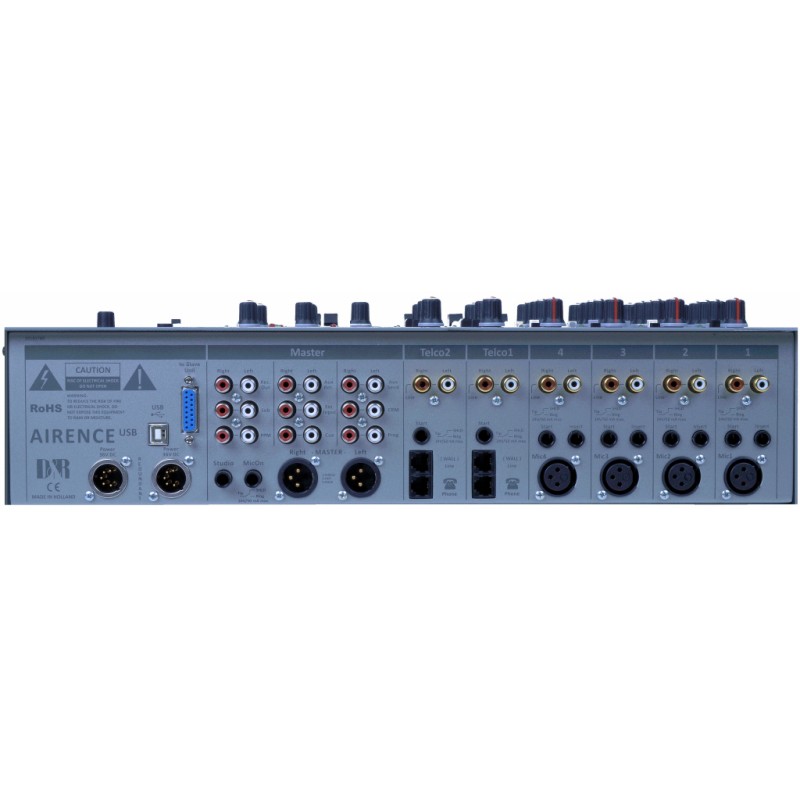

Product type: 6-channel On-Air / Production Broadcast Console
Microphone inputs: 4x balanced XLR(2 kohm) with 48 V phantom power
Microphone noise: -128 dBr (A-weighted, type THAT 1501)
Line inputs: 6x unbalanced via Cinch/RCA (10 kOhm), gain range of 40 dB
USB interface: 1x physical USB 2.0 connection for 4x stereo in and 4x stereo out
Telephone hybrids: 2x built-in (RJ-11 connections) with R and C balance, Mix-Minus rejection of -40 dB at 1 kHz
USB control section: 24 freely assignable illuminated switches and 1x encoder via HID protocol
Analog Outputs: Main Program Left/Right ( 6 dBu balanced XLR), Monitor/Aux ( 6 dBu unbalanced RCA), Studio ( 6 dBu through Jack), Tape out (-10 dBV)
Headphone outputs: Headphone (32-600 Ohm, Jack), Announcer/Announcer (32-600 Ohm, Jack)
Equalizer per channel: High (12 kHz shelving /-12 dB), Mid (1 kHz bell curve /-12 dB), Low (60 Hz shelving /-12 dB)
Overall frequency response: 10 to 60,000 Hz
Starting circuit: Insulated reed relay (maximum 24 Volt / 50 mA)
Main unit size: 19 inch rack-mountable (width 480 mm), height 356 mm (8 HE), depth 95 mm
Main unit weight: 9 kg
