OMB EM 25 DIG PLUS – 25W Solid State FM Transmitter (Compact & Digital)

Elevate your broadcasting quality with the EM 25 DIG PLUS, a high-performance 25W FM transmitter engineered for continuous operation under the strictest technical regulations. Thanks to its robust modular construction and advanced RF technology, this unit provides unparalleled signal stability across the entire FM range (87.5-108 MHz).

Main Advantages:

• Super-Compact & Lightweight: Weighing only 5.9 kg with a reduced footprint, this transmitter is easy to integrate into any studio setup or transmitter site.

• Superior RF Performance: The entirely modular power section ensures stable output and low heat dissipation, while the reverse intermodulation figures are significantly lower than standard bipolar constructions.

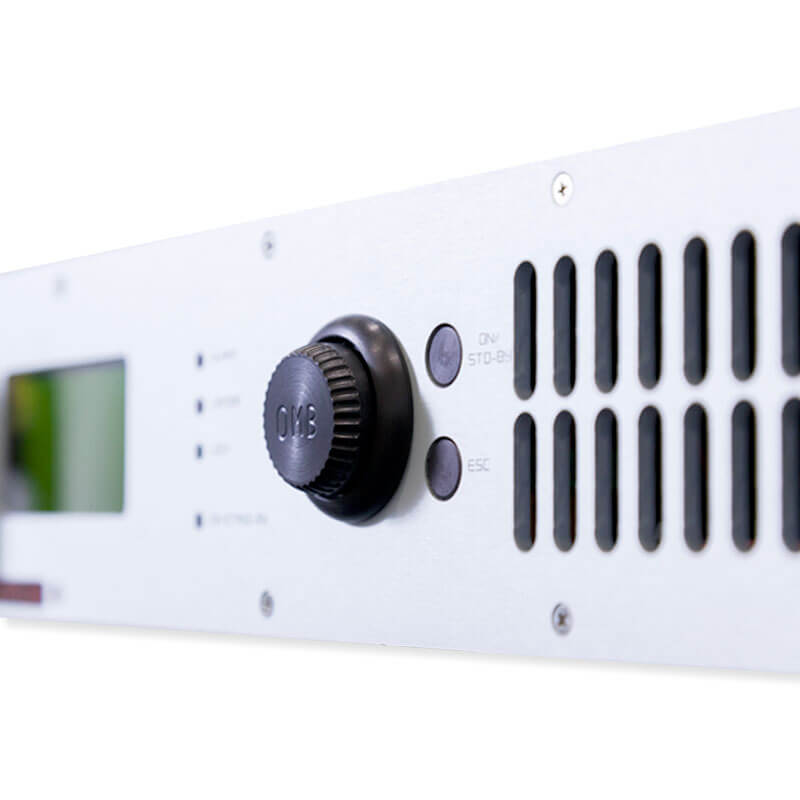

• User-Friendly Interface: Features a large LCD screen, a multifunction knob, and intuitive controls for rapid configuration and easy parameter diagnosis.

• Low Operational Costs: Designed for minimal electrical consumption (only 96VA at 25W output), directly reducing long-term energy expenses.

Flexibility & Expansion Options: The EM 25 DIG PLUS scales with your needs. The transmitter can be optionally supplied with:

• Stereo Generator: For a crystal-clear stereo image (60dB channel separation).

• RDS Support: To broadcast digital data such as station names and song titles.

• Web Server & SNMP Telemetry: Manage and monitor your transmitter remotely via IP.

• AES/EBU Digital Audio Input: For a lossless digital signal chain supporting up to 192 kHz.

Technical Specifications:

• Frequency Range: 87.5 - 108 MHz (adjustable in 10/100 kHz steps).

• Output Power: 25W (N-type connector) with ALC stability of ±3%.

• Audio Inputs: XLR(F) with selectable pre-emphasis (25/50/75 µs).

• Power Supply: Universal 110-230Vac input, suitable for global use.
