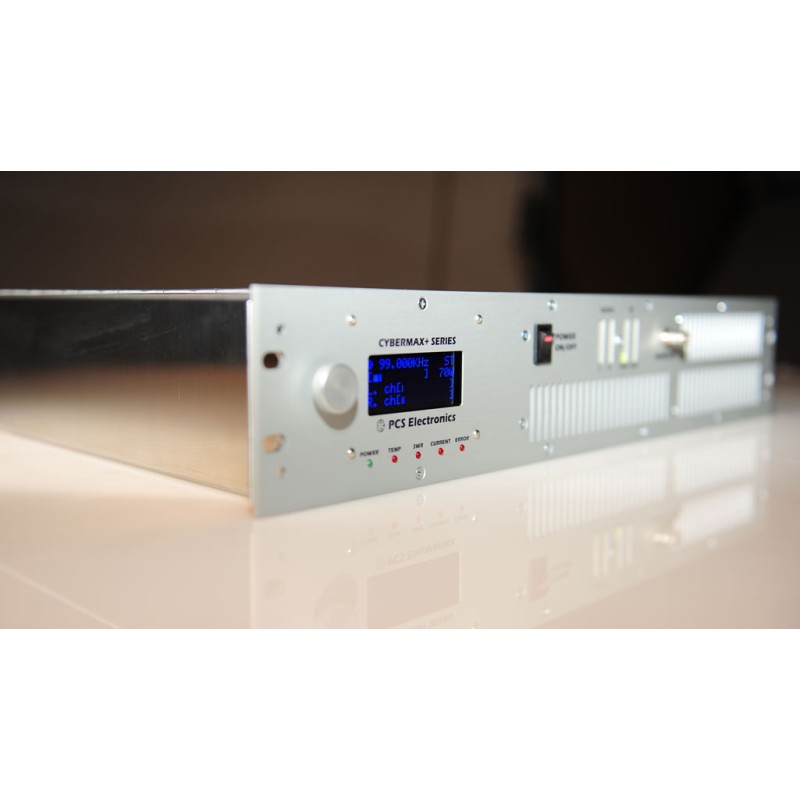

CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS

CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS View larger

CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS

PCS-Electronics

The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters

Delivery up to 3 weeks

By buying this product you can collect up to 111 loyalty points. Your cart will total 111 loyalty points that can be converted into a voucher of € 22,20.


€ 1.938,01

Model

Discount on your Order Discount on your Order
Free Shipping Free Shipping in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money Back Guarantee Money Back Guarantee
Trustpilot Trustpilot

Volume discounts

Quantity Discount You Save
2 2% Up to € 77,52
4 4% Up to € 310,08
6 6% Up to € 697,68
8 8% Up to € 1.240,33
10 10% Up to € 1.938,01

Product information CYBERMAXFM+ SE V3 800W FM transmitter with DSP and RDS

Product discription:


The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.



Technical facts:


RF SECTION
- Output power: 200W/400W/600W/800W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ +- 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to +45°C
- External dimensions 200W/400W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (200-400), 8Kg (600W), 9Kg (800W)
- Volumetric weight up to 20Kg

Note: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDS

Model name DSP
processor
RDS
processor
XLR
inputs
Full unit name
SE V3 MPX No No No, just BNC for MPX CyberMaxFM+ SE V3 MPX
SE V3 STEREO + RDS Yes Yes Yes CyberMaxFM+ SE V3 STEREO DSP+RDS
