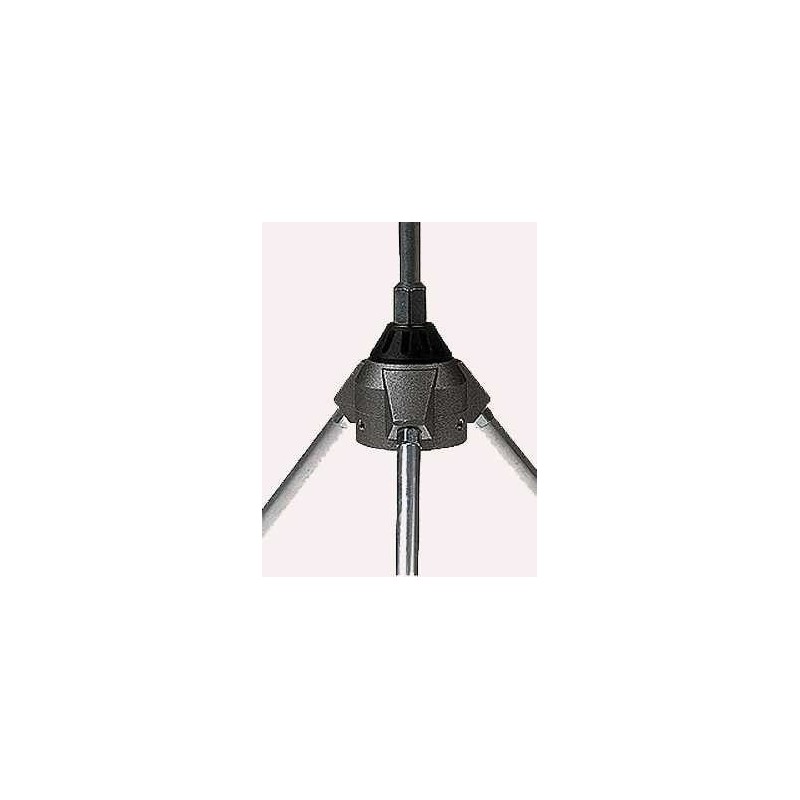

GP antenna FM 66-108 (500W)

GP 66-108 (5

New

Fm GPA series Broadcast antenna | Sirio

More details


✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of EUR 0,20.


EUR 39,99 tax incl.

Add to wishlist

Volume discounts

Quantity Price You Save
5 EUR 38,39 Up to EUR 8,00
10 EUR 36,39 Up to EUR 35,99

More info

 Fm GPA series Broadcast antenna



Product Discription:

Base station antenna, Mono-band

  • Omnidirectional, Unity gain
  • Made of aluminium alloy 6063 T-832

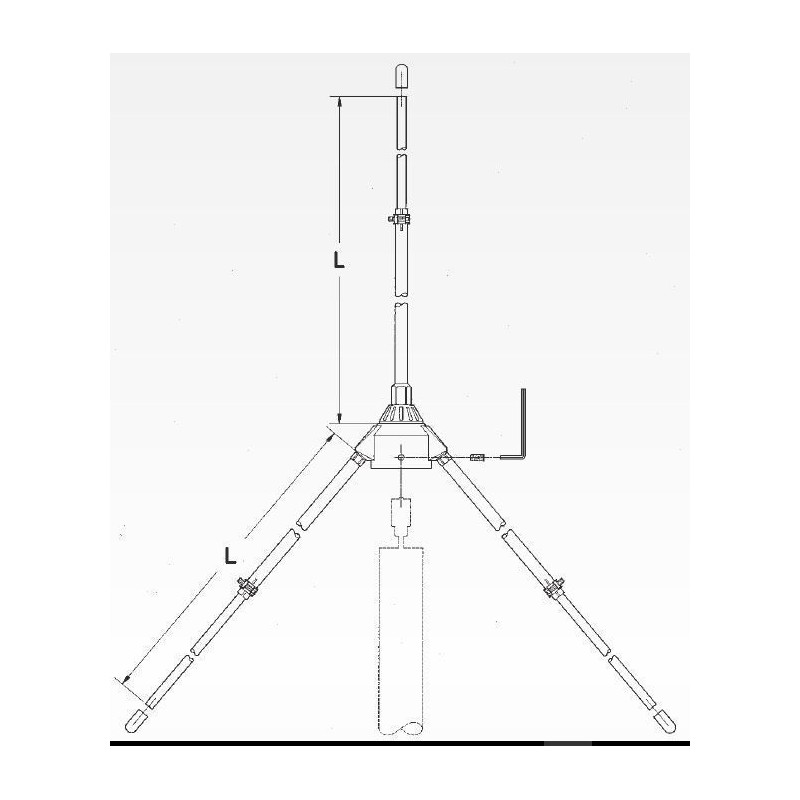

  • Tunable by whip length adjusting
  • Side mast mounting allowed by optional bracket FT-2 code 2510004.00



Technical Facts:
  • Base station antenna, Mono-band
  • Omnidirectional, Unity gain
  • Made of aluminium alloy 6063 T-832
  • Tunable by whip length adjusting
  • Side mast mounting allowed by optional bracket FT-2 code 2510004.00
  • Type: 1/4? ground plane
  • Frequency range: tunable from 66 to 108 MHz
  • Impedance: 50? unbalanced
  • Radiation (H-plane): 360? omnidirectional
  • Radiation (E-plane): beamwidth at -3 dB = 86?
  • Radiation angle: 0?
  • Polarization: vertical
  • Gain: 0 dBd - 2.15 dBi

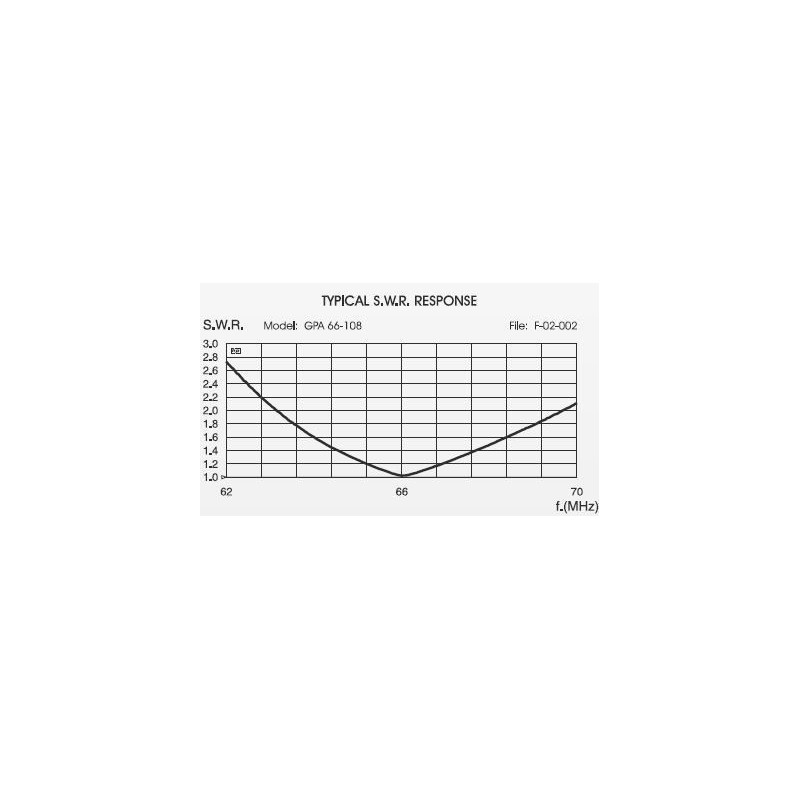

  • Bandwidth at V.S.W.R. 2:1:  6.5 MHz at 66 MHz
  • V.S.W.R. at res. freq.: ? 1.2:1 at start freq.
  • Max. power: 500 Watts
  • Feed system / position: direct / center

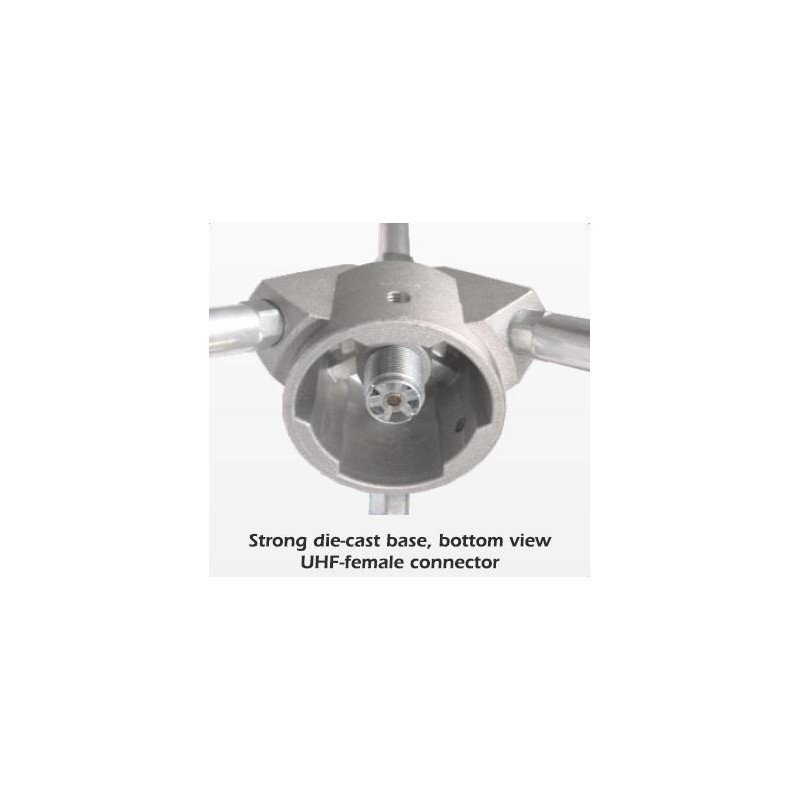

  • Connection: UHF-female (SO239)

Mechanical Data:

  • Materials: Aluminium, Chromed brass, Nylon
  • Wind load / resistance: 54 N at 150 Km/h / 150 Km/h
  • Wind surface: GPA 66-108: 0.05 m2
  • Height (approx.): 1930 mm
  • Weight (approx.): 1Kg
