- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 10 mono input channels with gain control, 3-way equalizer and pan pot
- 1 stereo input channel with 3-way equalizer and balance control
- MP3 player
- USB interface
- Bluetooth receiver
- DSP delay, adjustable
- Adjustable aux return input and FX send output
- Tape record/play connections
- 5-band stereo graphic equalizer
- +48 V phantom power, can be activated as required
- Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
- Stereo LED level display
0
Product
Products
(empty)
No products
Free shipping!
Shipping
€ 0,00
Tax
€ 0,00
Total
Prices are tax included
Product successfully added to your shopping cart
Quantity
Total
There are 0 items in your cart.
There is 1 item in your cart.
Total products
(tax incl.)
Total shipping (tax incl.)
Free shipping!
Tax
€ 0,00
Total
(tax incl.)

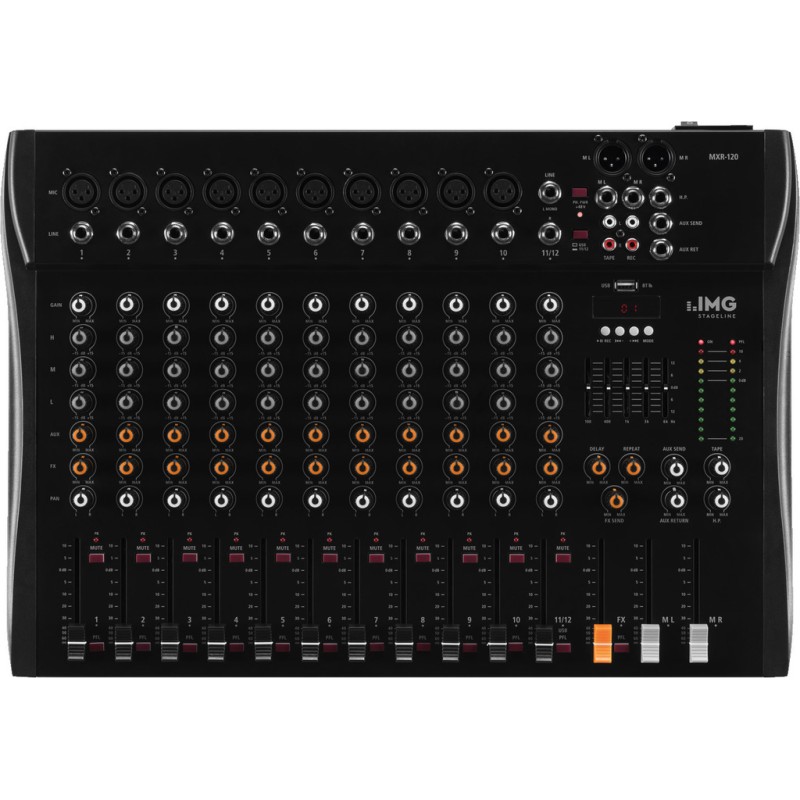

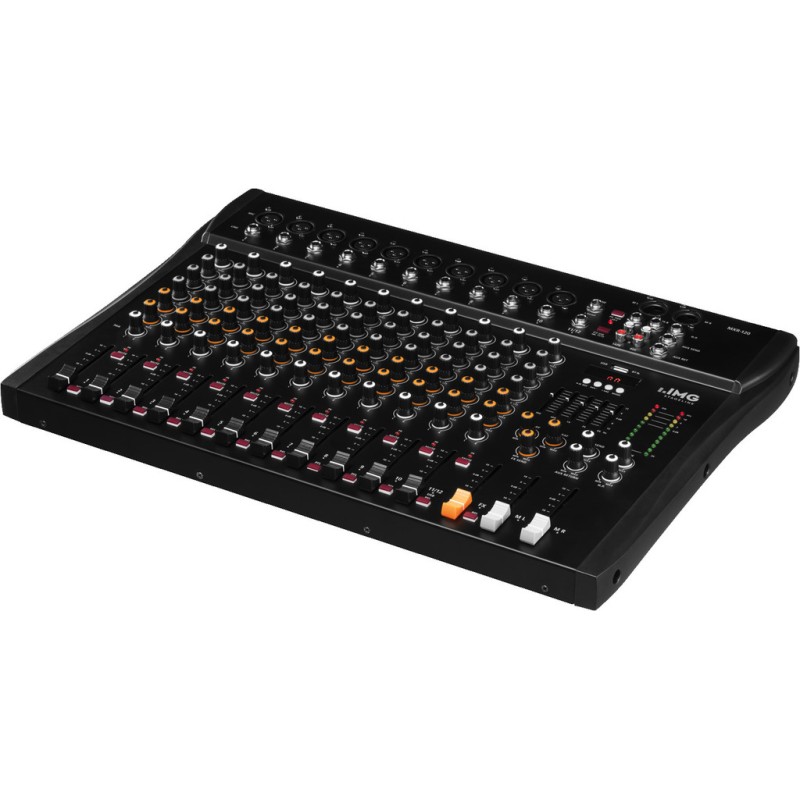

MXR-120 12-channel audio mixer
View larger
MXR-120 12-channel audio mixer
IMG-Stage LineMXR-120
MXR-120 12-channel audio mixer, with integrated MP3 player and Bluetooth receiver
By buying this product you can collect up to 15 loyalty points. Your cart will total 15 loyalty points that can be converted into a voucher of € 3,00.
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 2 | 2% | Up to € 12,60 |
| 4 | 4% | Up to € 50,40 |
| 6 | 6% | Up to € 113,40 |
| 8 | 8% | Up to € 201,59 |
| 10 | 10% | Up to € 314,99 |
Product information MXR-120 12-channel audio mixer
MXR-120 12-channel audio mixer, with integrated MP3 player and Bluetooth receiver
SPECIFICATIONS
| Input channels | 12 |
| Number of mix/mono | 10 |
| No. of stereo | 1 |
| Mic input | 2.2 mV, bal. 10 x XLR |
| Line input | 50 mV (stereo), 1 x 6.3 mm jack L/R
30 mV (mono), 10 x 6.3 mm jack |
| Tape (play) | 290 mV, 1 x RCA L/R |
| Aux input | 420 mV, 1 x 6.3 mm jack L/R |
| Master output | 880 mV, bal. 1 x XLR L/R
880 mV, 1 x 6.3 mm jack L/R |
| Effect send | 9 V, 1 x 6.3 mm jack |
| Tape (rec) | 400 mV, 1 x RCA L/R |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 82 dB(A) |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer midrange | ±15 dB/2.5 kHz |
| Equalizer treble | ±15 dB/12 kHz |
| equalizer | 5-band equalizer |
| Phantom power | +48 V |
| Power supply | ˜ 230 V/50 Hz/30 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 30 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 498 mm |
| Height | 53 mm |
| Depth | 340 mm |
| Weight | 4.4 kg |
| Packing dimensions (W x H x L) | 0.55 x 0.41 x 0.095 m |
| Gross weight | 4.94 kg |
| Net weight | 4.41 kg |
