6-Channel Stereo Audio Mixer for DJ & PA

: Monacor

: MPX-622/SW

: New

: IMG-Stageline Radio Studio Broadcast Mixers Consoles

: 6-Channel Stereo Audio Mixer for DJ & PA

Versatile 6-channel stereo mixer for DJ and PA use with talkover, crossfader, EQ, and multiple inputs. Rack-mountable. Ideal for professional setups.

By buying this product you can collect up to 15 loyalty points. Your cart will total 15 loyalty points that can be converted into a voucher of € 3,00.


€ 314,99

Quantity Discount You Save
2 2% Up to € 12,60
4 4% Up to € 50,40
6 6% Up to € 113,40
8 8% Up to € 201,59
10 10% Up to € 314,99

  • Discount on your Order
  • Free Shipping up to 1 KG
  • Volume Discounts
  • Bonus System
  • Secure Payment
  • Money-Back Guarantee
  • Trustpilot Reviews
Product information

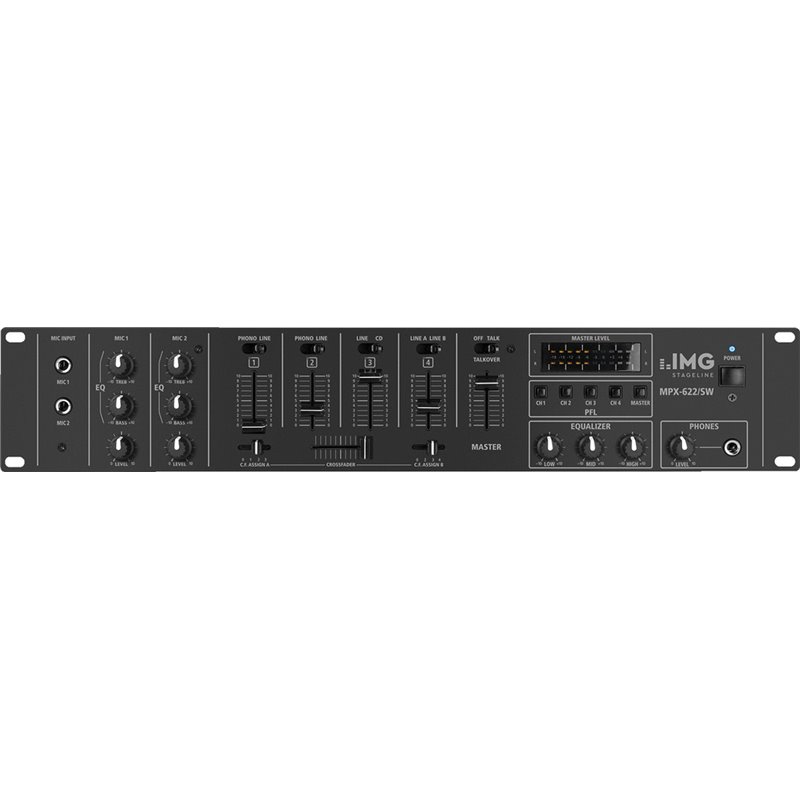

6-Channel Stereo Mixer – For DJs and PA Professionals

This 6-channel stereo audio mixer is perfectly suited for DJ performances, PA systems, mobile sound setups, and fixed installations. Thanks to features like talkover, crossfader, tone control, and multiple inputs and outputs, it is highly versatile. The 19-inch rack enclosure (2U) makes it ideal for studios and mobile racks.

Key Features:

  • 2 mono microphone inputs with talkover and 2-band tone control

  • 4 stereo inputs: phono/line (channels 1–2), line/line (channels 3–4)

  • Crossfader with flexible channel assignment (channels 1–4)

  • Pre-listening via adjustable headphone output

  • 3-band equalizer with center click on master and record output

  • Talkover function with -15 dB attenuation

  • Stereo LED VU meter for precise level monitoring

Connections:

  • 2 x microphone input (1 mV, 6.3 mm jack)

  • 5 x line input (150 mV, RCA L/R)

  • 1 x CD input (150 mV, RCA L/R)

  • 2 x phono input (3 mV, RCA L/R)

  • 1 x master output (0.775 V, RCA L/R)

  • 1 x record output (independent of master)

  • 1 x headphone output (≥ 8 Ohm, 6.3 mm jack)

Technical Specifications:

  • Frequency range: 20 Hz – 20,000 Hz

  • Total harmonic distortion (THD): 0.1%

  • Signal-to-noise ratio: 65 dB

  • Bass EQ: ±10 dB at 100 Hz

  • Mid EQ: ±10 dB at 1 kHz

  • Treble EQ: ±10 dB at 10 kHz

Physical Properties and Power Supply:

  • Power supply: 230 V ~ / 50 Hz / 10 VA

  • Operating temperature: 0 – 40 °C

  • Dimensions: 482 x 89 x 95 mm (2U rack size)

  • Weight: net 2.47 kg / gross 3.18 kg

  • EAN: 4007754182668

Looking for matching accessories?
We offer cables, flight cases, headphones, and more. Contact us for personalized advice.
