: Monacor
: MMX-8
: New
: Microphone Mixers | Amplifiers

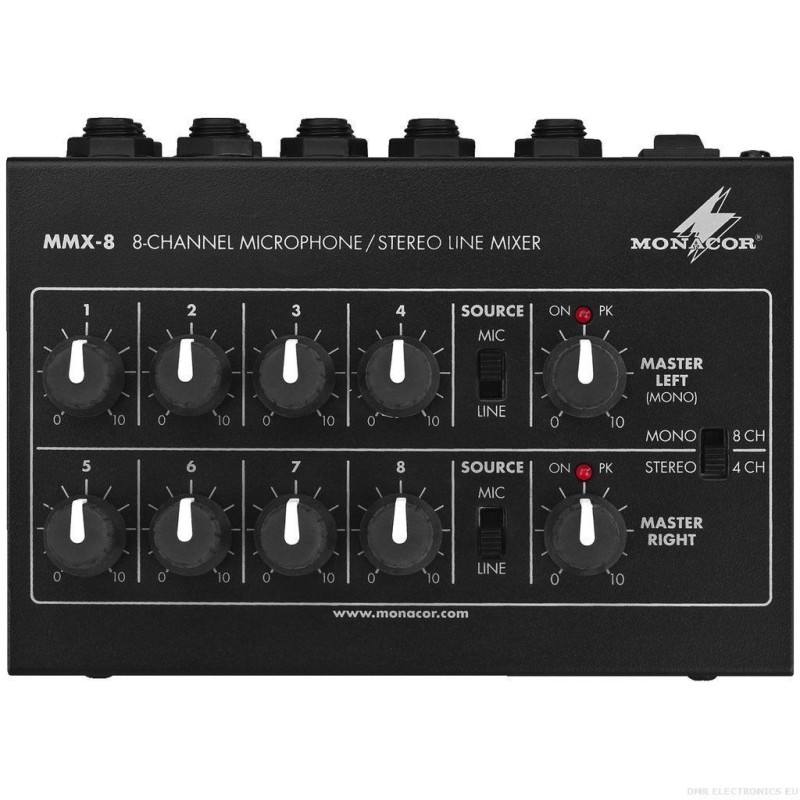

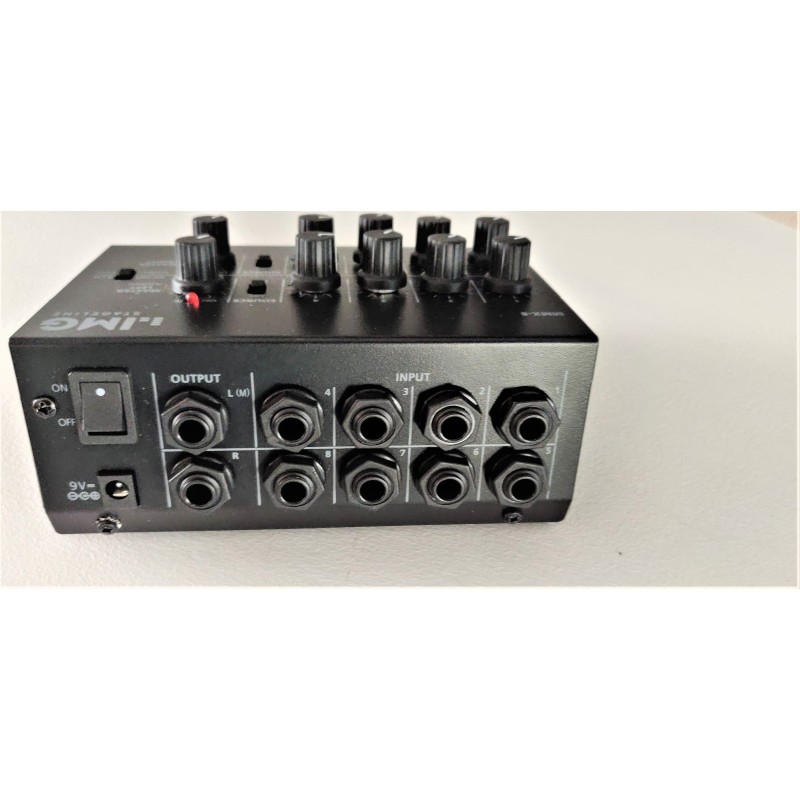

Microphone Stereo line Mixer MMX-8.
- 8 mono channels, switchable mic/line
- Selection of 4 stereo channels
- 2 output level controls, 2 peak LEDs
- Supplied without battery
By buying this product you can collect up to 3 loyalty points. Your cart will total 3 loyalty points that can be converted into a voucher of € 0,60.
Product information
Product discription:
Microphone Stereo line Mixer MMX-8
Mixer for Microphones and our Audio Lines
- 8 mono channels, switchable mic/line
- Selection of 4 stereo channels
- 2 output level controls, 2 peak LEDs
- Supplied without battery
Technical facts:
| No. of channels | 8 |
| No. of inputs | 8 |
| Mic input | 5 mV, 8 x 6.3 mm jack |
| Line input | 50 mV, 8 x 6.3 mm jack |
| CD input | - |
| Phono input | - |
| Tape (play) | - |
| Aux input | - |
| Insert input | - |
| effect return | - |
| Master output | 100 mV, 2 x 6.3 mm jack |
| Record output | - |
| Monitor output | - |
| Booth output | - |
| Aux output | - |
| Insert output | - |
| effect send | - |
| Control room | - |
| Tape (rec) | - |
| Headphones | - |
| Gooseneck lamp | - |
| WiFi | |
| USB | - |
| Frequency range | 20-20,000 Hz |
| THD | < 0.4% |
| S/N ratio | 55 dB |
| Crosstalk | - |
| Equalizer bass | - |
| Equalizer midrange | - |
| Equalizer treble | - |
| equalizer | - |
| Talkover | - |
| Phantom power | - |
| Crossfader | - |
| Media player | - |
| Amplifier | - |
| Power supply | 9 V battery or via optional PSU PSS-600E |
| Mains voltage | - |
| Mains frequency | - |
| Power consumption, operation | - |
| Alternative operating voltage | - |
| Alternative power supply | - |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 150 x 68 x 115 mm |
| Width | 150 mm |
| Height | 68 mm |
| Depth | 115 mm |
| Rack spaces, RS | - |
| Weight | approx. 700 g |
