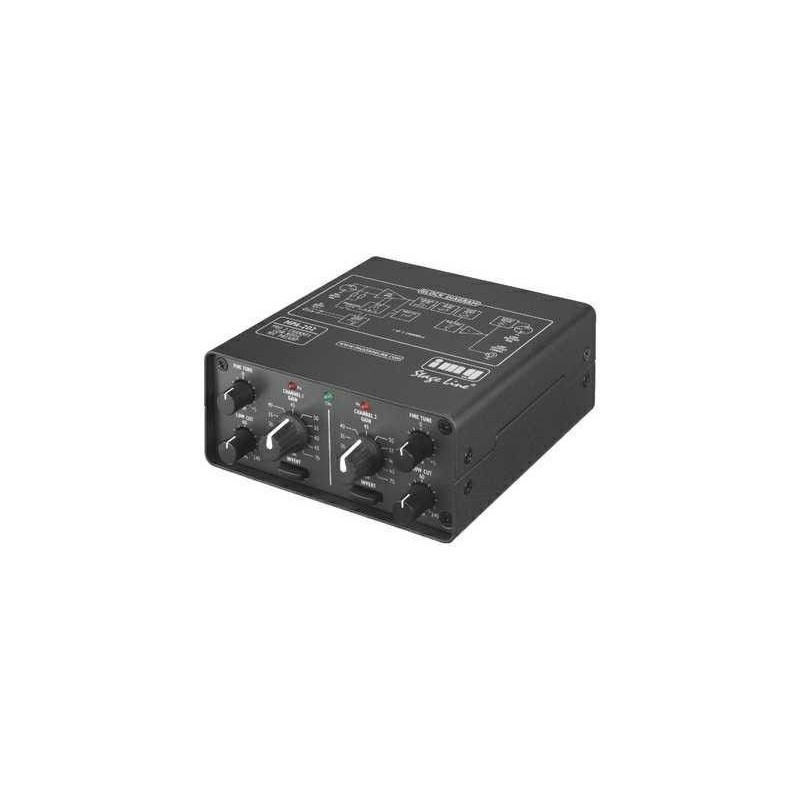

IMG-Stage Line MPA-202 2-channel microfoon voorversterker View larger

IMG-Stage Line MPA-202 2-channel low-noise microphone preamplifier

IMG-Stage Line | Monacor

MPA-202

New

2-channel low-noise microphone preamplifier

More details

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 loyalty points that can be converted into a voucher of € 1,40.


€ 140,49 tax incl.

Order Now and get 10 Euro Discount on your order
 Free shipping to NL
 Volume discount
 Bonus system
 Safe to Pay
 Money back guarantee
 QShops certification

Volume discounts

Quantity Price You Save
2 € 137,68 Up to € 5,62
3 € 136,28 Up to € 12,64
4 € 134,87 Up to € 22,48
5 € 126,44 Up to € 70,25
6 € 132,06 Up to € 50,58
8 € 129,25 Up to € 89,91
10 € 126,44 Up to € 140,49

More info

 2-channel low-noise microphone preamplifier





  • 2 microphone inputs, XLR, bal.
  • Gain, 11 steps 20-70dB
  • 2 level controls ?5dB
  • LED green/red for operation/peak
  • Phantom power +12V, can be switched on additionally
  • Microphone phase can be switched for each channel
  • Lo cut 15-240Hz, continuously adjustable
  • Subsonic filter 15Hz, 18dB/oct.
  • 2 line outputs, XLR bal.
  • 2 line outputs, RCA unbal.

IMG-Stage Line MPA-202

Technical Facts Amplifiers
  • Frequency range20-20,000Hz
  • Input sensitivity 0.16-150mV, switchable
  • Input impedance Mic4.4kΩ bal., 2.2kΩ unbal.
  • Stereo line-
  • Outputs Line, bal.1V/100Ω, 14Vmax.
  • Stereo line1V/600Ω, 7Vmax.
  • Stereo master- Filter, low cut15-240Hz, 6dB/oct.
  • Filter, high cut- Filter, subsonic15Hz, 18dB/oct.
  • Gain, mic15-75dB
  • Gain, stereo line- S/N ratio, mic> 68dB (unweighted) > 87dB (weighted)
  • S/N ratio, line- THD < 0.01%
  • Power supply 15V?/300mA via supplied plug-in PSU 230V?/50Hz/5VA
  • Dimensions116x55x135mm
