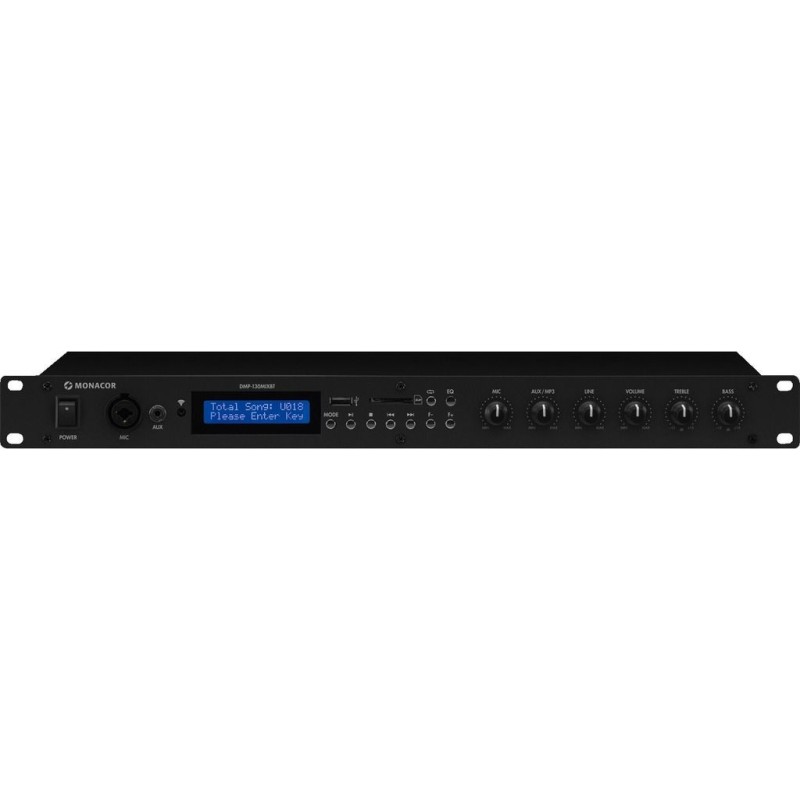

Monacor DMP-130MIXBT MP3 player and microphone line mixer

Monacor DMP-130MIXBT MP3 Player And Microphone Line Mixer View larger

: Monacor

: DMP-130MIXBT

: New

: Microphone Mixers | Amplifiers

: Monacor DMP-130MIXBT MP3 player and microphone line mixer

Monacor DMP-130MIXBT MP3 player and microphone line mixer.

With this unit combination, it is possible to mix 3 audio signal sources. The integrated MP3 player can be switched between SD card, USB port and Bluetooth receiver

By buying this product you can collect up to 16 loyalty points. Your cart will total 16 loyalty points that can be converted into a voucher of € 3,20.


€ 324,99

Quantity Discount You Save
2 2% Up to € 13,00
4 4% Up to € 52,00
6 6% Up to € 117,00
8 8% Up to € 207,99
10 10% Up to € 324,99

Product information

Product discription:

Monacor DMP-130MIXBT MP3 player and microphone line mixer.

With this unit combination, it is possible to mix 3 audio signal sources. The integrated MP3 player can be switched between SD card, USB port and Bluetooth receiver

  • For USB and SD storage media
  • Alphanumeric display
  • Repeat function
  • Preprogrammed sound adjustments
  • 3 input channels with level control (mic, aux/MP3, line)
  • Aux input and microphone input via front panel connection
  • 2-way tone control and level control for the master output
  • Infrared remote control for MP3 player
  • Blue backlit LCD
  • 482 mm (19") rack installation

Technical facts:

Description MP3 player and microphone line mixer
Media MP3, USB, SD, MMC
Frequency range 20-20,000 Hz
THD < 0.1%
Channel separation > 60 dB
Dynamic range > 96 dB
S/N ratio > 70 dB
Output, analogue 2 V (XLR, bal.)

1 V (RCA)
Power supply ˜ 230 V/50 Hz/20 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 20 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 44 x 165 mm, 1 RS
Weight 2.36 kg
Connections 1 x combo 6.3 mm/XLR (mic/line),

1 x 3.5 mm jack (aux in),

1 x RCA L/R (line in),

1 x RCA L/R (line out),

1 x XLR L/R, bal. (output)
