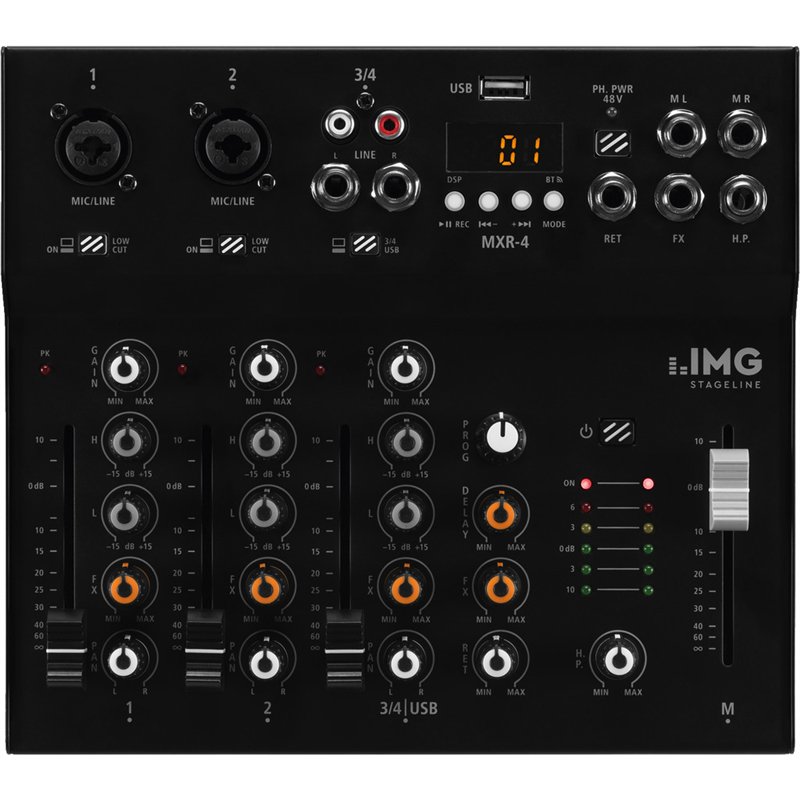

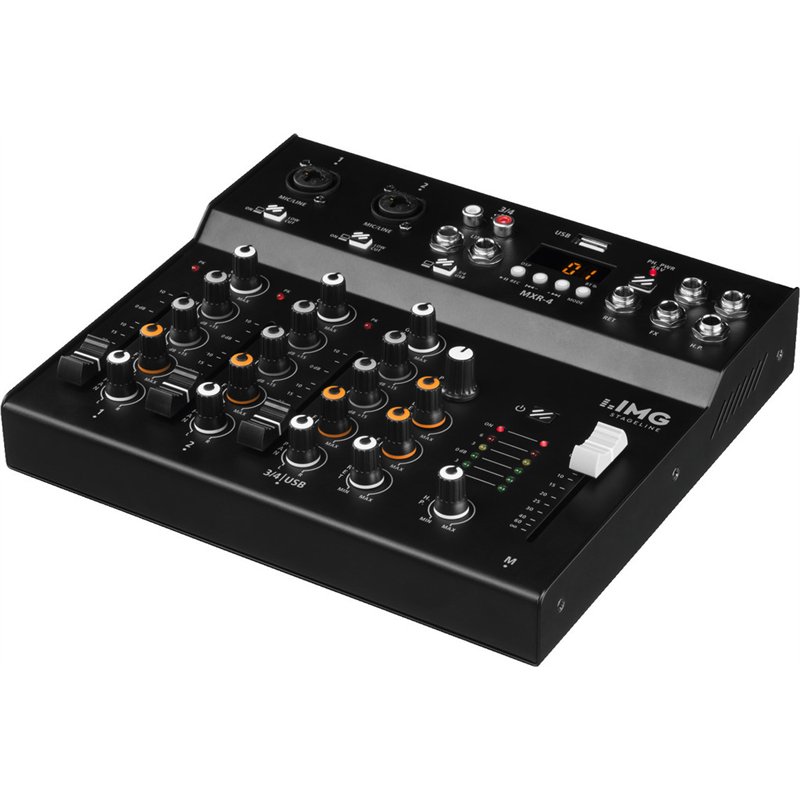

Monacor MXR-4 4-channel audio mixer

New MXR-4 4-channel audio mixer View larger

€ 124,99

Brand: Monacor

Model: MXR-4

Stands: New

Categories: Monacor Studio Mixers

4-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver.
  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 2 mono input channels with gain control, 2-way equalizer and pan pot
  • 1 stereo input channel with 2-way equalizer and balance control
  • MP3 player
  • USB port
  • Bluetooth receiver
  • 16 adjustable delay effects
  • Adjustable aux return input and FX send output
  • +48 V phantom power, can be activated as required
  • Adjustable headphone output
  • Stereo LED level display
  • Power is provided via USB or supplied power supply

8 other products in category - Monacor Studio Mixers

Product information

Technical specifications MXR-4
MXR-4
Input channels 4
Number of mix/mono 2
No. of stereo 1
Mic input 2 mV, bal. 2 x XLR
Line input 100 mV (stereo), 2 x 6.3 mm jack L/R

60 mV (mono), 2 x 6.3 mm jack
Aux input 400 mV, 1 x 6.3 mm jack L/R
Master output 500 mV, 1 x 6.3 mm jack L/R
Effect send 4.4 V, 1 x 6.3 mm jack
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
USB yes
Bluetooth yes
Frequency range 20-20,000 Hz
THD
S/N ratio > 83 dB(A)
Equalizer bass ±15 dB/80 Hz
Equalizer treble ±15 dB/12 kHz
Phantom power +48 V
Power supply USB or encl.

power supply
Admiss. ambient temp. 0-40 °C
Dimensions 228 x 53 x 205 mm
Width 228 mm
Height 53 mm
Depth 205 mm
Weight 1.4 kg
Packaging dimensions (W x H x L) 0.255 x 0.24 x 0.08 m
Gross weight 1.625 kg
Net weight 1.48 kg

MXR-4
EAN code 4007754273366
Net weight 1.48 kg
