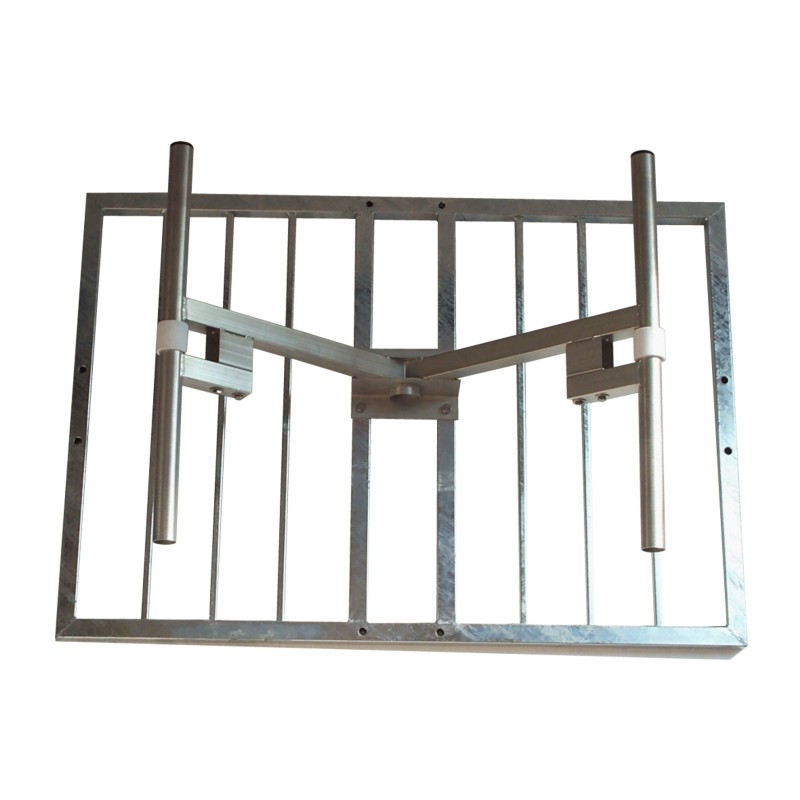

Label Italy Double dipole broadband FM panel antenna model AKK

          New

              Label Italy Double dipole broadband FM panel antenna model AKK

              Dual dipole broadband FM panel antennas with a high recommendation for high power transmitters. These antennas are available for vertical or horizontal polarization.

            More details

          By buying this product you can collect up to 63 loyalty points. Your cart will total 63 loyalty points that can be converted into a voucher of € 12,60.


                € 1.239,66

                    Label Italy antenna options

                      • AKK/2M 2KW 7,5dBd 7/16
                      • AKK/2F 5KW 7,5dBd 7/8

                  Discount on your order Discount on your order
                   Free shipping to NL
                   Volume discount
                   Bonus system
                   Safe to Pay
                   Money back guarantee
                   QShops certification
                  Trustpilot Trustpilot

          Volume discounts

            Quantity Discount You Save
            2 2% Up to € 49,59
            4 4% Up to € 198,35
            6 6% Up to € 446,28
            8 8% Up to € 793,38
            10 10% Up to € 1.239,66

          More info Label Italy Double dipole broadband FM panel antenna model AKK

            Label Italy Double dipole broadband FM panel antenna model AKK

            Dual dipole broadband FM panel antennas with a high recommendation for high power transmitters. These antennas are available for vertical or horizontal polarization.

            Whether you are looking for vertical or horizontal polarization, our antennas provide excellent performance for high power transmitters. With their stainless steel construction and galvanized steel reflector, they are durable and resistant to various weather conditions.

            Our FM panel antennas are designed with the latest technologies and utilize PTFE insulators for optimum signal strength and reliability. The omnidirectional diagram allows you to receive a wide range of signals without having to adjust the antenna.

              AKK/2M AKK/2F
            FRQ. RANGE (Mhz) 87.5 – 108 87.5 – 108
            IMPEDANCE (Ohm) 50 50
            V.S.W.R. < 1.2:1 < 1.2:1
            GAIN (dBd) 7.5 7.5
            CONNECTOR 7/16 7/8
            MAX POWER (KW) 2 5
            POLARIZATION Vertical or Horizontal Vertical or Horizontal
            WEIGHT (Kg) 45 46
            DIMENSIONS (cm) 248x174x78 248x174x78
