Switch-mode PSU, 3 A max.with a high energy efficiency PSS-3000E

View larger

Mean Well

Model PSS-3000E

Condition New

PSS-3000E
Number: 27.3150
Switch-mode PSU, 3 A max.with a high energy efficiency, corresponds to the EU ecodesign directive

More details

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of € 0,20.

Print your Product page

Volume discounts - Switch-mode PSU, 3 A max.with a high energy efficiency PSS-3000E

Quantity	Discount	You Save
2	2%	Up to € 0,99
3	3%	Up to € 2,23
4	4%	Up to € 3,97
5	10%	Up to € 12,40
10	15%	Up to € 37,19

More info

Product discription:

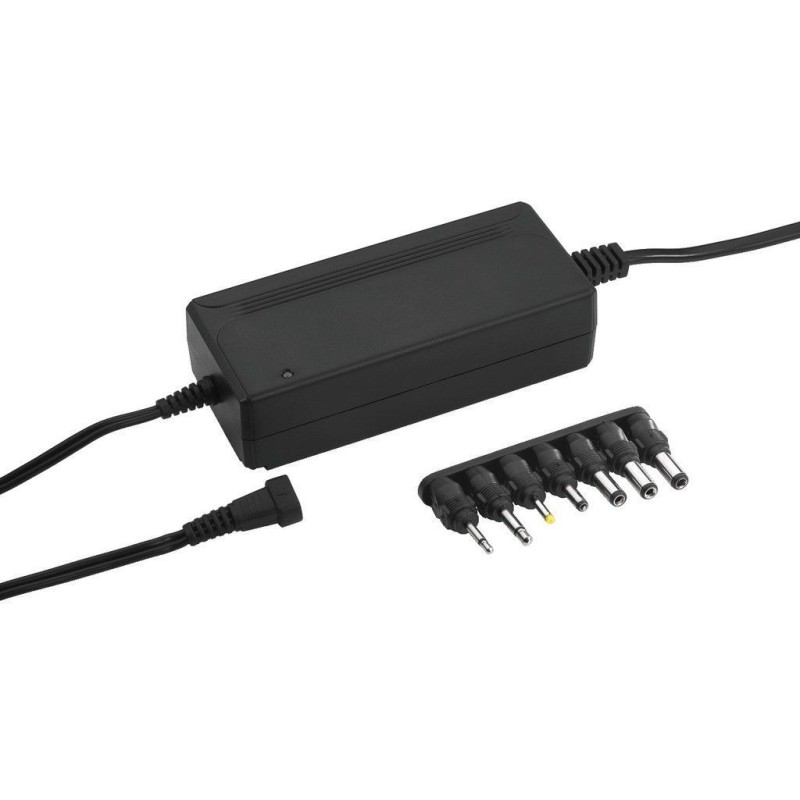

Switch-mode PSU, 3 A max.,
with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Switchable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm,
hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Technical specs:

Input voltage 100-240 V˜/50-60 Hz/800 mA
Output voltage 5/6/7.5/9/12/13.5/15 V
Charging/output current 3/3/3/3/3/2.4/2.4 A, 36 VA
Charging time -
Trickle charge -
Reactivation -
Admiss. ambient temp. 0-40 °C
Dimensions 50x32x115 mm
Weight 290 g
