Switch-mode PSU, 3 A max. with a high energy efficiency PSS-3000SV

Switch-mode PSU, 3 A max. with a high energy efficiency PSS-3000SV View larger

Switch-mode PSU, 3 A max. with a high energy efficiency PSS-3000SV

Mean Well

PSS-3000SV

PSS-3000SV
Number: 27.3320
Switch-mode PSU, 3 A max. with a high energy efficiency, corresponds to the EU ecodesign directive

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 loyalty points that can be converted into a voucher of € 0,60.


€ 64,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money Back Guarantee Money Back Guarantee
Trustpilot Trustpilot

Volume discounts

Quantity Discount You Save
2 2% Up to € 2,60
4 4% Up to € 10,40
6 6% Up to € 23,40
8 8% Up to € 41,59
10 10% Up to € 64,99

Product information Switch-mode PSU, 3 A max. with a high energy efficiency PSS-3000SV

Product discription:



Switch-mode PSU, 3 A max.,
with a high energy efficiency, corresponds to the EU ecodesign directive.
  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Output voltage can be selected via supplied plug-in resistors
  • Protected against short circuit, overload and overheating

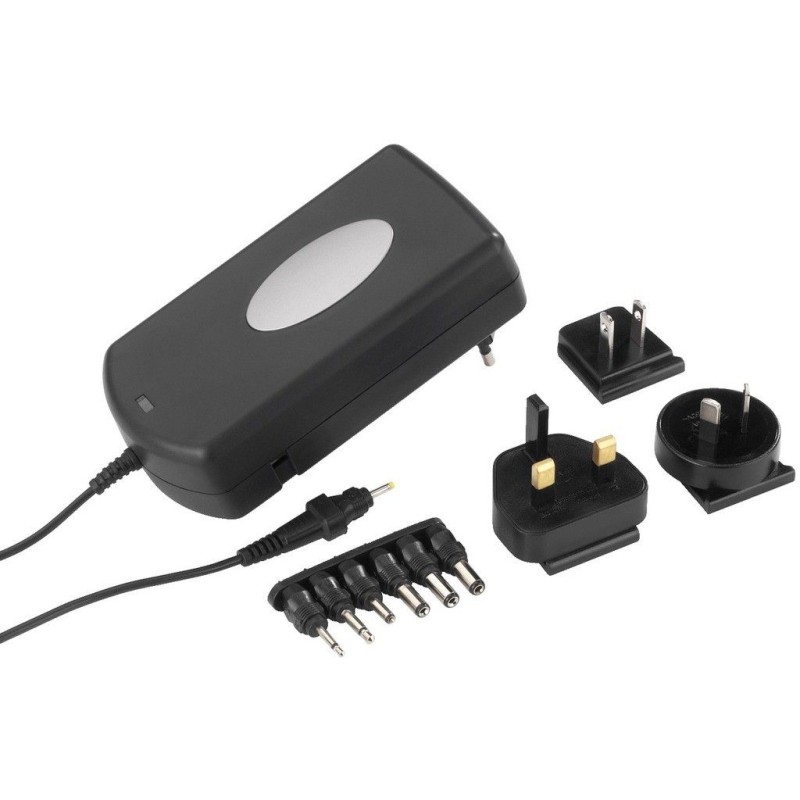

  • Changeable mains plug travel adapters for Europe, Great Britain, Australia and USA/Japan
  • Power LED
  • 1.8 m connection cable
  • Switchable polarity by reversing the supplied adapters
  • 7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
The current values do vary, depending on the output voltage selected. Please pay attention to the table!

Technical specs:
  • Input voltage 100-240 V˜/50-60 Hz/800 mA
  • Output voltage 5-24 VDC current (in 1 V steps)
  • Charging/output current 3.0-1.5 A
  • Charging time -
  • Trickle charge -
  • Reactivation -
  • Admiss. ambient temp. 0-40 °C
  • Dimensions 68x40x135 mm
  • Weight 343 g
