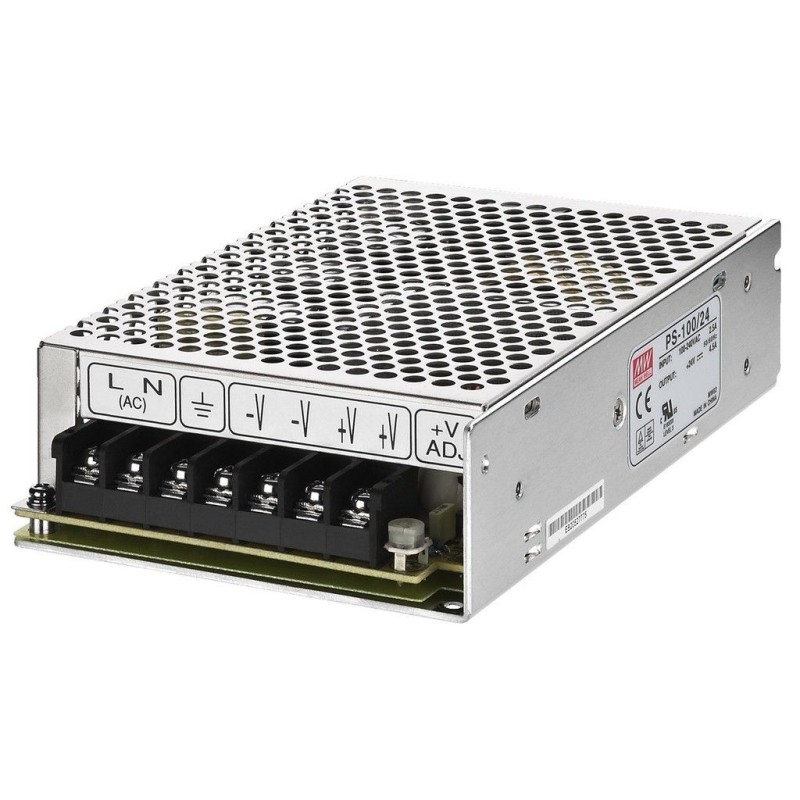

Mean Well 24 V built-in PSU 4.5 A PS-100/24
Mean WellPS-100/24
New
PS-100/24
Number: 27.3270
Mean Well 24 V built-in PSU 4.5 A
By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of € 0,40.
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 2 | 2% | Up to € 1,98 |
| 4 | 4% | Up to € 7,93 |
| 6 | 6% | Up to € 17,85 |
| 8 | 8% | Up to € 31,73 |
| 10 | 10% | Up to € 49,58 |
More info Mean Well 24 V built-in PSU 4.5 A PS-100/24
- Product discription:
- Short-circuit proof, overload-protected
- Overtemperature protection
- Fine adjustment of output voltage
- EMC standard EN 61000-3-2
- Aluminium housing
- Mains connection and low-voltage connection via screw terminals
- Input voltage 100-240 V˜/50-60 Hz/225 VA
- Output voltage 24 V
(22-26 V) - Charging/output current 4.5 A
- Charging time -
- Trickle charge -
- Reactivation -
- Admiss. ambient temp. 0-40 °C
- Dimensions 160x40x98 mm
- Weight 530 g
24 V built-in PSU
PS-100/24: output current 4.5 A (100 W)
PS-200/24: output current 8.3 A (200 W)
PS-320/24: output current 13 A (310 W)
Technical specs:
