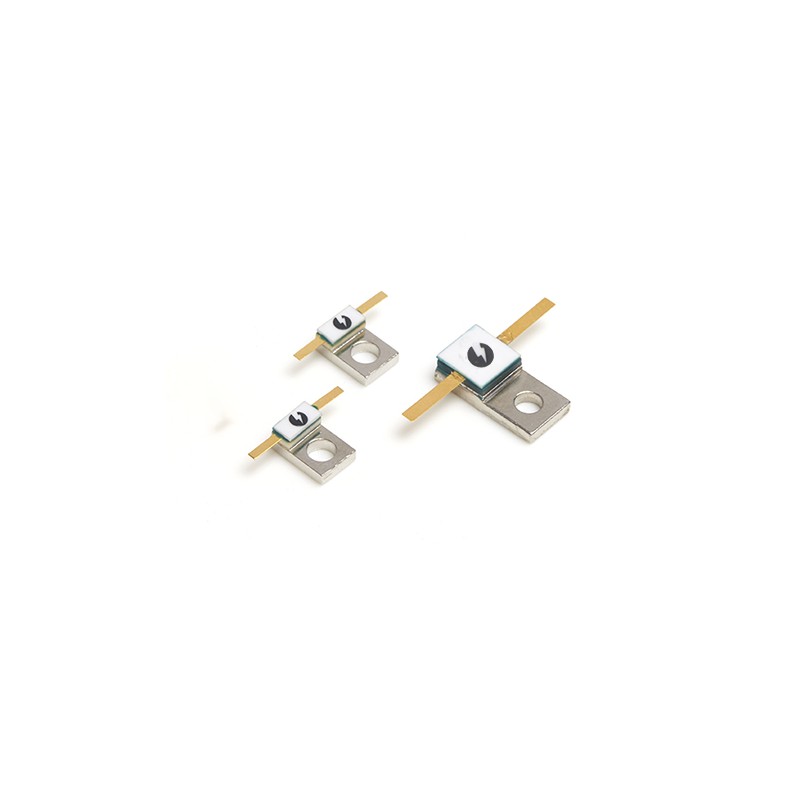

Attenuator 10dB 100W flange-mount
View larger
Brand: DMR-Electronics
Model: 10DB-100W
Stands: New
Categories: RF power resistors
Attenuator 10dB 100W flange-mount
3 other products in category - RF power resistors
Product information
50 ohm 100W RF attenuator
- Attenuation: 3dB, 6dB, 10dBm 30dB
- Input-output resistance: 50ohm
- Power rating: 100W (more with efficient cooling)
- Size: 24,77 x 9,53mm
- Leads: 1,02mm wide
- Mounting: Flange, 2 holes
- Distance between holes: 18,4mm
- Height between underlying heatsink and connecting lead: 4,3mm
- Fmax: 3000MHz
