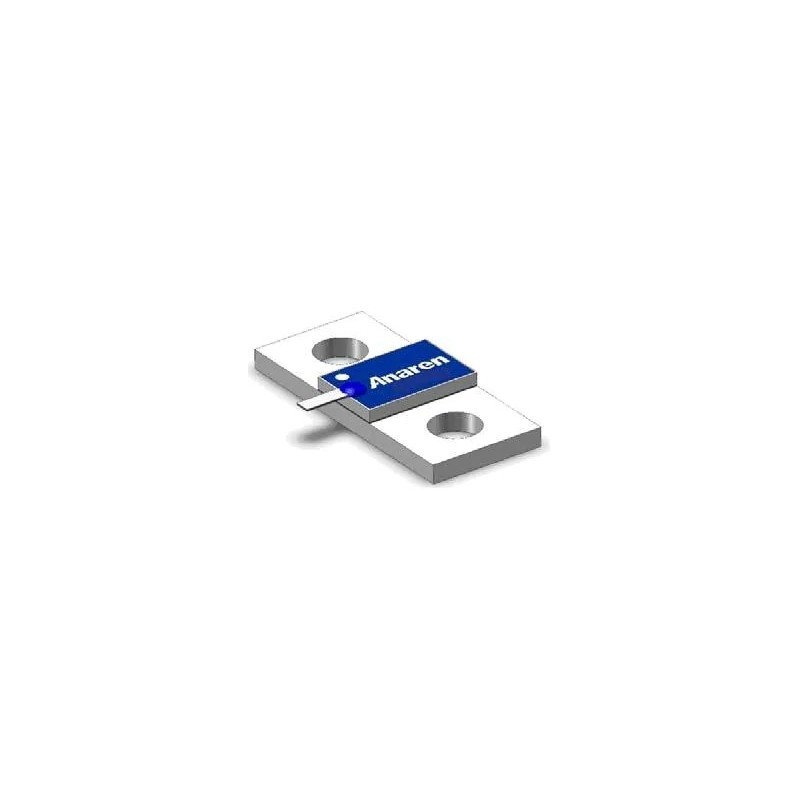

100 Ohm 500W Flange Mount RF Terminating Resistor

100 Ohm 500W Flange Mount RF Terminating Resistor - RF View larger

: DMR-Electronics

: DConX 17-0681

: New

: RF power attenuators

: 100 Ohm 500W Flange Mount RF Terminating Resistor

High-Power RF Resistors for Effective RF Constructions. Mounting: Flange, 2 holes, 100 Ohm 500W Flange Mount RF Terminating Resistor.

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of € 0,40.


€ 49,99

QuantityDiscountYou Save
2 2% Up to € 2,00
4 4% Up to € 8,00
6 6% Up to € 18,00
8 8% Up to € 31,99
10 10% Up to € 49,99

  • Discount on your order Discount on your order
  • Free shipping Free shipping up to 1 KG
  • Volume discount Volume discount
  • Bonus system Bonus system
  • Secure payment Secure payment
  • Money back guarantee Money back guarantee
  • Trustpilot Trustpilot
Product information

High-Power RF Resistors for Effective RF Constructions. 100 Ohm 500W Flange Mount RF Terminating Resistor.

Discover the efficiency of our high-power RF resistors designed for effective RF constructions. Specifically, our 100-ohm, 500W flange mount RF terminating resistor ensures precision and reliability in your RF setups. If you require values beyond those listed, feel free to reach out via email for personalized assistance.

100 ohm 500W flange mount RF terminating resistor
– Resistance: 100ohm
– Power rating: 500W
– Max frequency: >500MHz
– Size: 31,75×12,7mm
– Leads: 1,5mm wide, 6,5mm long
– Distance between underlying heatsink and connecting lead: 4,2mm
– Mounting: Flange, 2 holes, FI 4,2mm
– Precision: 5%
