Product discription:

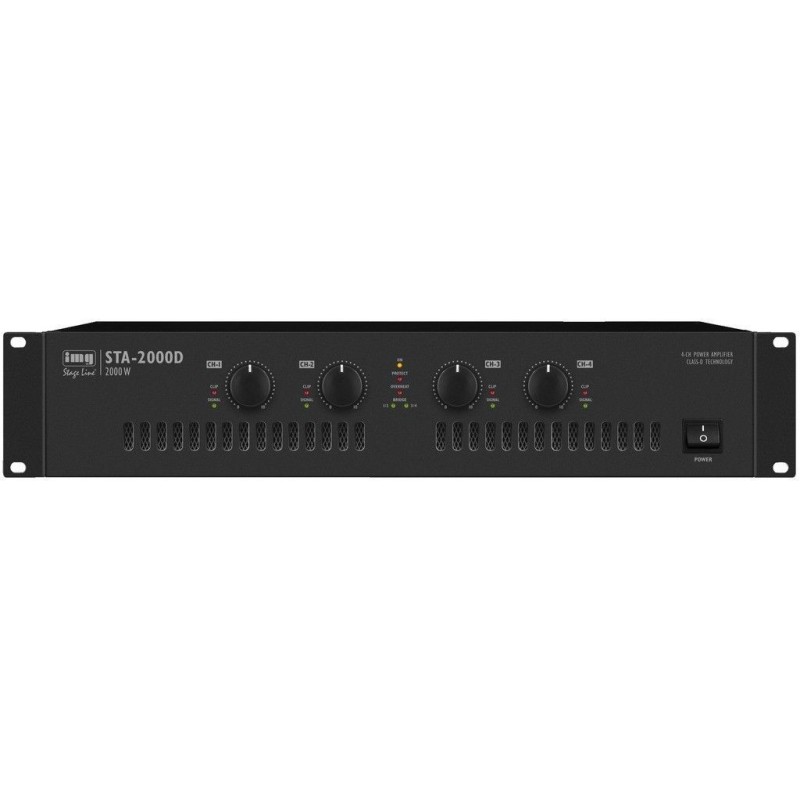

The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
4-channel digital PA amplifier- Class D concept
- Excellent acoustic performance
- Extra wide dynamic range with very low THD
- Excellent pulse response also in the bass range
- 482 mm (19") rack installation, 2 RS
- 2 or 4 channels with bridge
- Silent operation due to temperature-controlled fans which are only activated at temperatures above 85 °C
- Lightweight design due to compact switch-mode PSU
- Energy-saving concept due to high efficiency
- 4 level controls
- Protected against short circuit, overtemperature, DC voltage at the output and overload
- LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
- Bridged operation
- Wide mains voltage range of 85-265 V˜
- NEUTRIK POWERCON and SPEAKON connections
Technical specs:
- Output power
- RMS power
- 4 Ω
- 4 x 500 WRMS
- 4 x 580 WMAX
- 8 Ω
- 4 x 280 WRMS
- 4 x 310 WMAX
- 8 Ω bridged operation
- 2 x 1,000 WRMS
- 2 x 1,060 WMAX
- 4 Ω bridged operation
- 2 x 1,000 WRMS
- 2 x 1,060 WMAX
- Max. power 2,400 WMAX
- General information
- Inputs
- 1 V/10 kΩ (XLR, bal.),
- 1 V/5 kΩ (RCA)
- Frequency range 20-20,000 Hz
- S/N ratio > 119 dB, A-weighted
- Crosstalk attenuation -
- THD < 0.05 %
- Power supply 230 V˜/50 Hz/2,320 VA
- Admiss. ambient temp. 0-40 °C
- Dimensions 482x335x89 mm, 2 RS
- Weight 6.6 kg

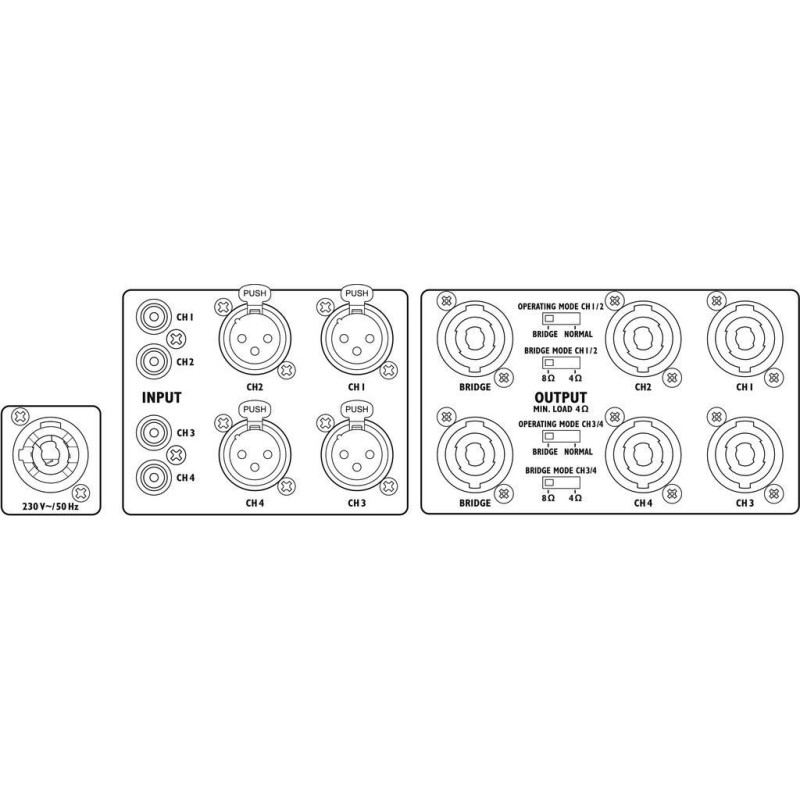

- Connections
- 1 x NEUTRIK POWERCON
- 4 x 3-pole XLR
- 4 x RCA
- 4 x NEUTRIK SPEAKON
- 2 x NEUTRIK SPEAKON bridge
