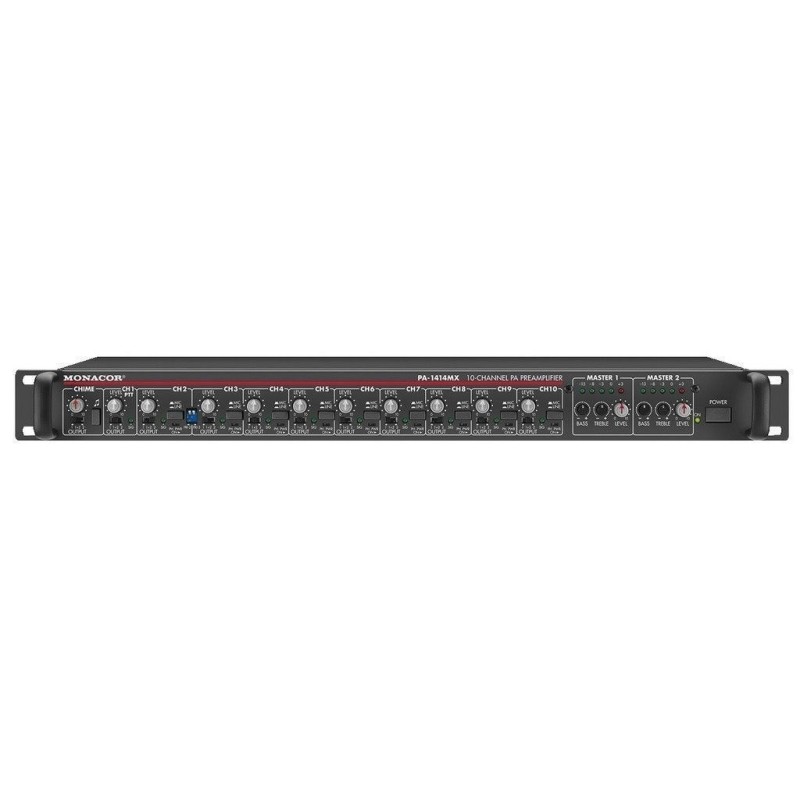

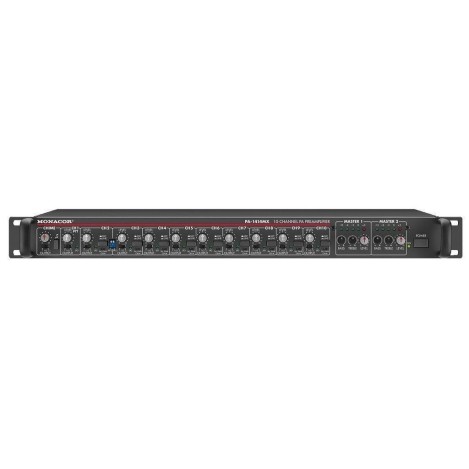

Monacor 10-Channel PA Preamplifier model PA-1414MX

    PA-1414MX

    This mixing preamplifier is specially designed for application in PA systems. It is connected ahead of the PA power amplifier and allows connection of up to 10 microphones (also phantom-powered microphones).

    By buying this product you can collect up to 23 loyalty points. Your cart will total 23 loyalty points that can be converted into a voucher of € 4,60.


    € 479,99

    Discount on your Order Discount on your Order
    Free Shipping Free Shipping in NL
    Volume Discount Volume Discount
    Bonus System Bonus System
    Secure Payment Secure Payment
    Money Back Guarantee Money Back Guarantee
    Trustpilot Trustpilot

    Volume discounts

    Quantity Discount You Save
    2 2% Up to € 19,20
    4 4% Up to € 76,80
    6 6% Up to € 172,80
    8 8% Up to € 307,19
    10 10% Up to € 479,99

    Product information Monacor 10-Channel PA Preamplifier model PA-1414MX

    Product discription:


    10-channel PA preamplifier

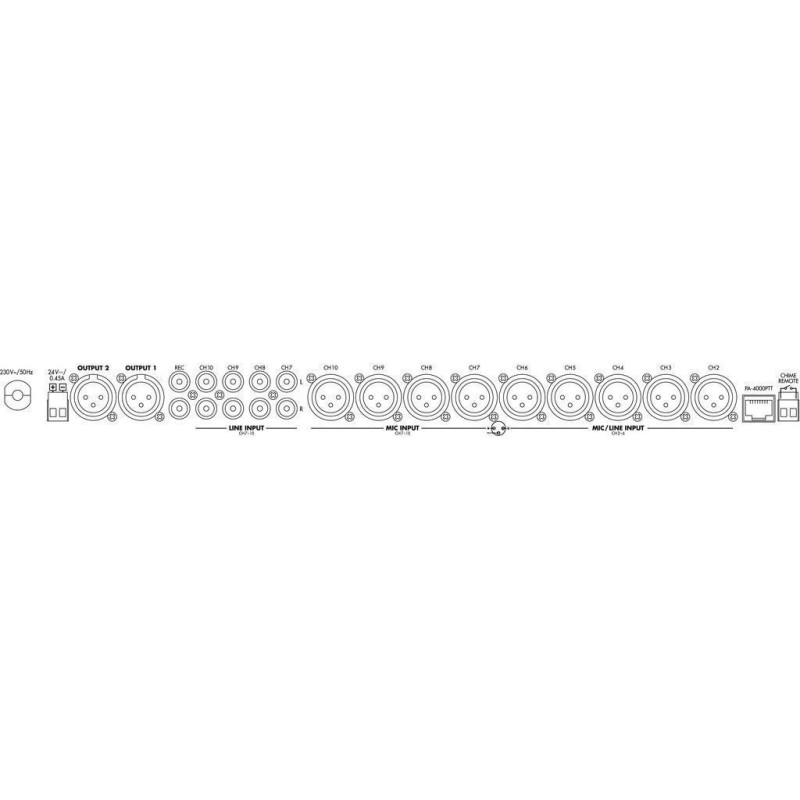

    • 5 XLR input channels, switchable mic/line
    • 4 input channels, switchable XLR mic/RCA line
    • 2 XLR master outputs
    • 1 record output (master 1, master 2)
    • Input channels with level control and output selector switch (master 1, master 1+2, master 2)
    • Each master output with 2-way tone control
    • Chime button with priority circuit, remote control possible, 2-tone chime or 4-tone chime, siren (selectable)
    • 1 push-to-talk connection, RJ45, with priority circuit (suitable e.g. for PA-4000PTT)
    • Low cut filter to be switched on additionally for each microphone input
    • Priority circuit for channels 2-3
    • Phantom power for electret microphones can be switched on additionally for each XLR input channel
    • Mains operation or 24 V emergency power operation



    Technical facts:


    Frequency range 20-20,000 Hz (-0.5 dB)
    Input sensitivity

    Mic

    2.5 mV, bal.

    Line XLR

    250 mV, bal.

    Line RCA

    250 mV, unbal.
    Outputs 1.2 V/200 Ω, bal. (master)
    775 mV/10 kΩ (record)
    S/N ratio

    Mic

    > 60 dB

    Line

    > 75 dB
    THD < 0.05 %
    Admiss. ambient temp. 0-40 °C
    Power supply 230 V˜/50 Hz/15 VA,
    24 V DC current /0.5 A
    Dimensions 482x45x240 mm, 1 RS
    Weight 3.9 kg
