IMG-Stage Line | Monacor SA-230 stereo mixing amplifier

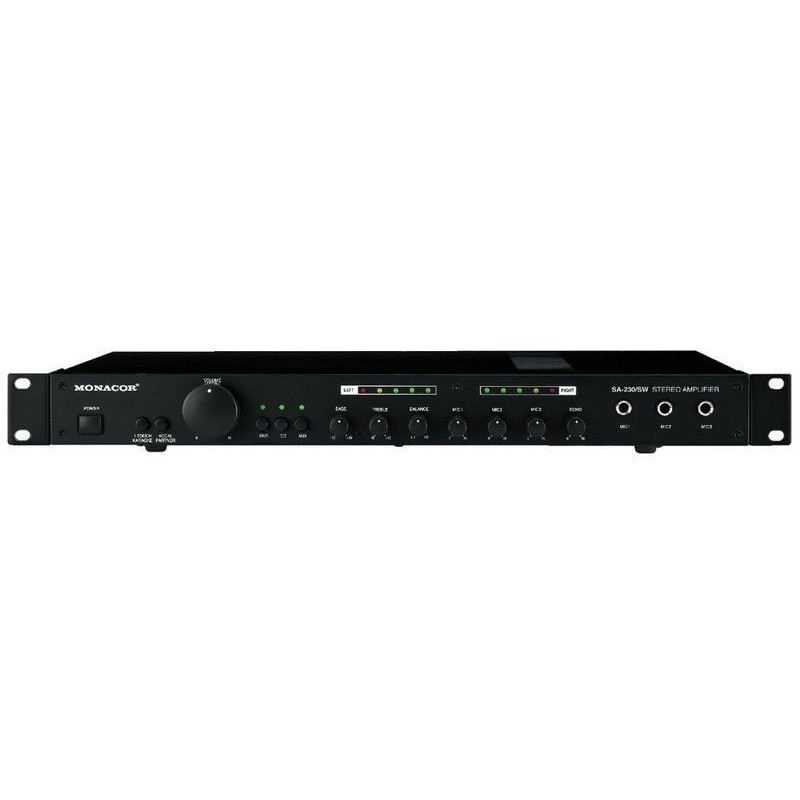

    IMG-Stage Line SA-230 stereo mixing amplifier View larger


    Number: 25.0740
    Universal stereo mixing amplifier

    By buying this product you can collect up to 12 loyalty points. Your cart will total 12 loyalty points that can be converted into a voucher of € 2,40.

    € 254,99

    Discount on your Order Discount on your Order
    Free Shipping Free Shipping in NL
    Volume Discount Volume Discount
    Bonus System Bonus System
    Secure Payment Secure Payment
    Money Back Guarantee Money Back Guarantee
    Trustpilot Trustpilot

    Volume discounts

    Quantity Discount You Save
    2 2% Up to € 10,20
    4 4% Up to € 40,80
    6 6% Up to € 91,80
    8 8% Up to € 163,19
    10 10% Up to € 254,99

    Product information IMG-Stage Line | Monacor SA-230 stereo mixing amplifier

    Universal stereo mixing amplifier

    Join the singing! The clearly arranged user surface of the SA-230 makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like "1-touch karaoke" or "vocal partner" are available. An adjustable digital echo can be added to the microphone channels as an effect. The amplifier's cooling design without a fan allows for a silent operation. The latest protective circuits offer protection against overload, overheating, and short circuit.

    • 100WMAX
    • Silent operation (due to design without fan)
    • 3 stereo line inputs
    • 3 mono microphone inputs, on the front panel, each with gain control
    • Adjustable digital echo for the microphone inputs
    • Karaoke feature
    • Vocal partner feature
    • LEDs for level control and active line inputs
    • Controls for volume, bass, treble, balance, and digital echo
    • Stereo record output
    • 482mm (19") rack installation, 1RS, with supplied mounting brackets

    Technical Facts Amplifiers


    • Output power
    • RMS power
    • Stereo 4Ω2 x 25WRMS
    • Stereo 8Ω2 x 20WRMS
    • Max. power2 x 50WMAX
    • General information
    • Inputs175mV/8kΩ (line) 2.5mV/3.5kΩ (mic)
    • Frequency range20-20,000Hz
    • S/N ratio62dB
    • Digital echo200 msec.
    • Equalizerbass: ?10dB treble: ?10dB
    • Power supply230V?/50Hz/150VA
    • Admiss. ambient temp.0-40 ?C
    • Dimensions432x45x275mm
    • Weight4kg
    • Connections
      line: RCA L/R mic: 6.3mm jack rec.: RCA L/R  speaker: spring-loaded speaker terminals
