IMG-Stage Line | Monacor STA-1506 Multichannel PA amplifier

    IMG-Stage Line | Monacor STA-1506 Multichannel PA amplifier

    STA-1506

    STA-1506
    Number: 24.4290
    Multi-channel PA amplifiers, with integrated limiter.
    STA-1508 = 8 channels
    STA-1506 = 6 channels
    STA-1504 = 4 channels

    By buying this product you can collect up to 34 loyalty points. Your cart will total 34 loyalty points that can be converted into a voucher of € 6,80.


    € 699,99

    Discount on your Order Discount on your Order
    Free Shipping Free Shipping in NL
    Volume Discount Volume Discount
    Bonus System Bonus System
    Secure Payment Secure Payment
    Money Back Guarantee Money Back Guarantee
    Trustpilot Trustpilot

    Volume discounts

    Quantity Discount You Save
    2 2% Up to € 28,00
    4 4% Up to € 112,00
    6 6% Up to € 252,00
    8 8% Up to € 447,99
    10 10% Up to € 699,99

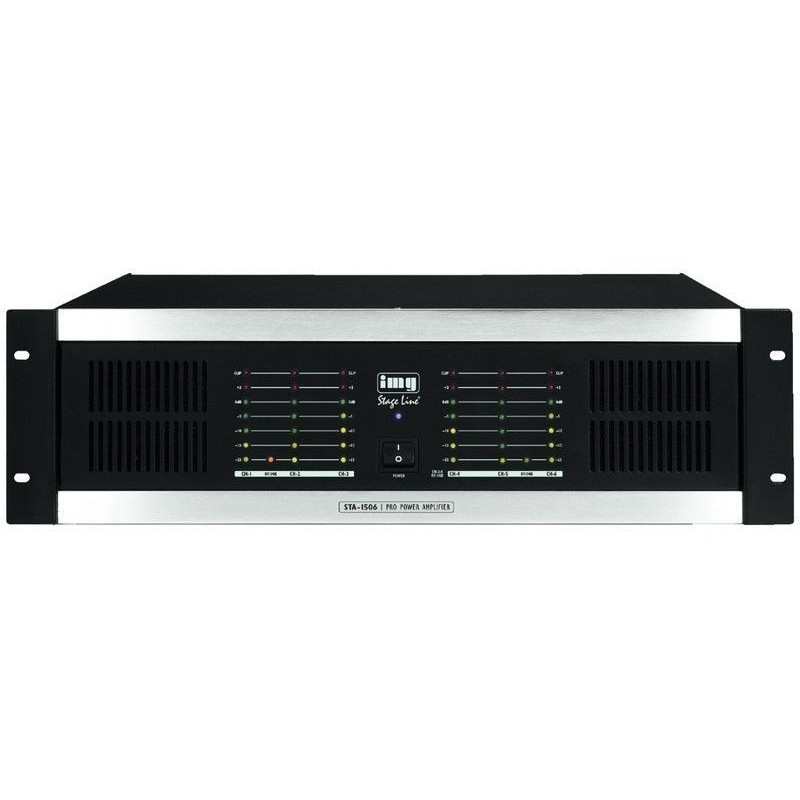

    Product information IMG-Stage Line | Monacor STA-1506 Multichannel PA amplifier

    IMG-Stage Line STA-1506





    Multichannel PA amplifiers with integrated limiter

    STA-1506 = 6 channels

    • Balanced inputs
    • High-pass filter, low-pass filter can be switched on additionally for each channel
    • Level adjustment on the rear, protected against tampering
    • 8Ω bridge operation possible
    • LED VU meter and LED indication for overload (Clip) for each channel
    • Soft start
    • Groundlift switch
    • Speaker switch-on delay
    • Fan-cooling
    • Protected against short circuit, overheating and DC voltage overlay at the outputs















    Technical Facts Amplifiers
    • Stereo 4Ω6 x 160WRMS
    • Stereo 8Ω6 x 100WRMS 8Ω bridge operation3 x 320WRMS
    • Max. power1,400WMAX
    • Inputs 0.7V/20kΩ
    • Frequency range12-60,000Hz/-1.5dB S/N ratio > 80dB
    • Crosstalk attenuation> 60dB THD < 0.1%
    • Power supply 230V?/50Hz/1,800VA
    • Admiss. ambient temp. 0-40 ?C
    • Dimensions482x132x310mm, 3RS
    • Weight 17.5kg

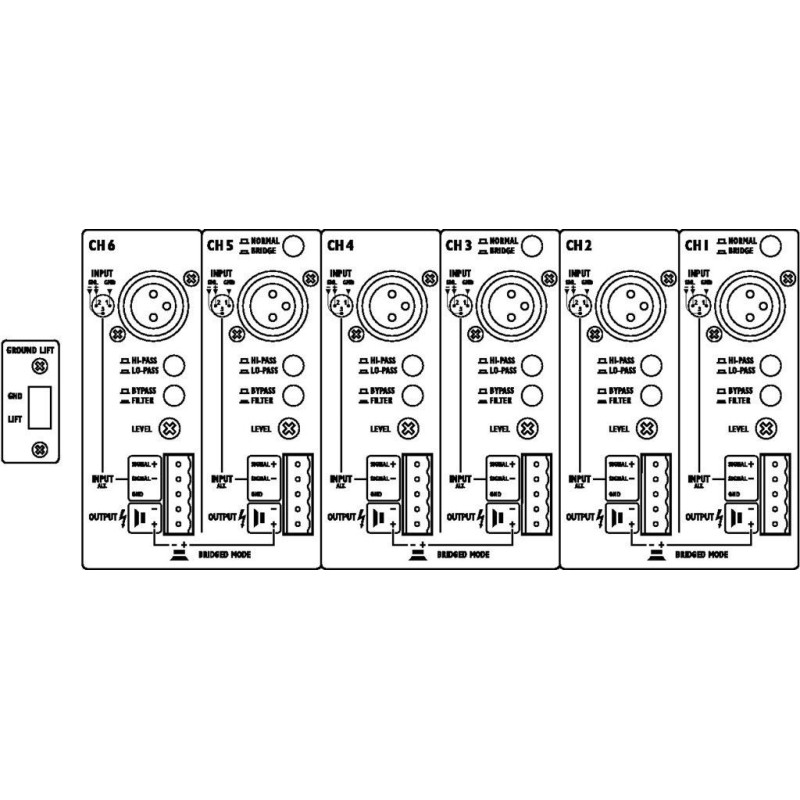

    • Connections 6 x XLR, bal. 6 x screw terminal
